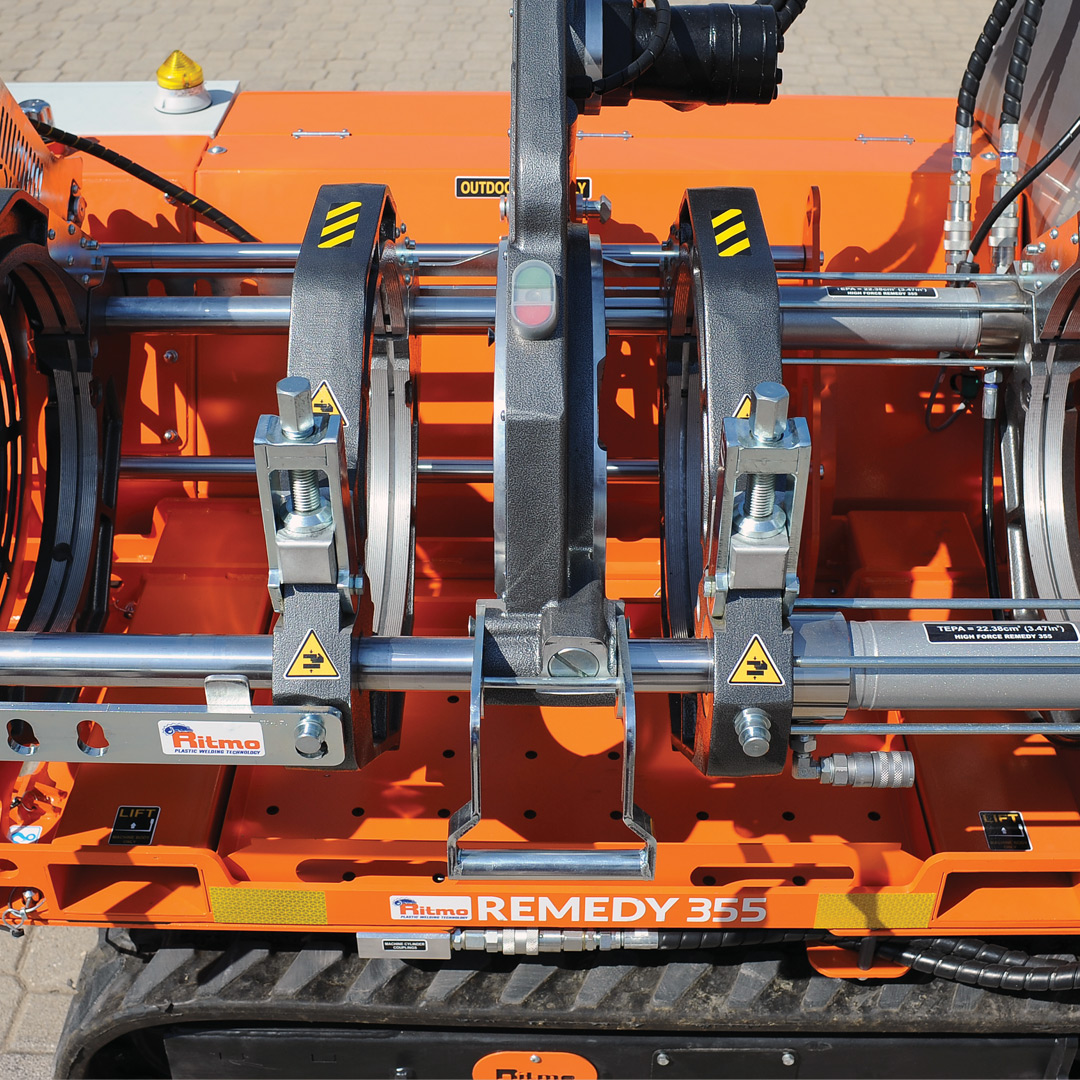

Compact, independent and versatile is REMEDY 355 FA.
High productivity welder designed to guarantee you the best performance with small diameter pipes.
Handy, compact, with on-board generator and tracked traction Made in Ritmo. Introduce our best welding technology into your jobsite.
TECHNOLOGY High Pressure
FEATURES
TECHNICAL SPECS
| Working range | 125 ÷ 355 mm; 4” IPS ÷ 14” IPS; 4” DIPS ÷ 12” DIPS |
| On board generator | 719 cc - 14 Kw |
| Fuel | Diesel |
| CNC welding cycle | Yes |
| Traceability GPS | Yes |
| Memory | Yes |
| Memory favorite welds | Yes |
| Working temperature | 180° ÷ 260° C (356° ÷ 500° F) |
| Outside temperature range | -5 ÷ +40°C (23 ÷ 104°F) |
| Pressure | up to 150 bar |
| Fuel tank | 25 L (6.6 gal) |
| Autonomy | 12,5 hours |
| Max operating slope | 35% |
| Dimensions standard composition (W x D x H) | 3007 x 1479 x 1690 mm 9.86 x 4.85 x 5.54 ft |
| Weight standard composition | 1170 Kg (2579 lb) |
STANDARD COMPOSITION
DOWNLOADS
ACCESSORIES
Would you like more information about this product?
Fill out the form: our technical team is available to offer assistance, insights, or personalized advice. We’ll help you find the solution that best suits your operational needs.
The exhaust pipe welders automatically recognize the connection and adjust the welding cycle based on the outside temperature. Furthermore, a self-diagnosis system alerts the operator to any errors.
Benchtop or portable socket fusion welders, suitable for even small spaces and compliant with DVS 2208 and ASTM standards. They offer high quality, versatility and ease of use thanks to self-centering steel clamps, a wide range of sockets and perfect alignment between pipe and fitting.
The Alfa Line includes high-productivity, easy-to-use machines equipped with hydraulic clamps. Extremely versatile, they work in metric or inch systems to produce special fittings (bends, branches, tees, crosses) in PE and PP from Ø90 mm to 1600 mm or from 4″ IPS to 63″ IPS. Welding quality is guaranteed even on thick pipes or those subjected to high pressure thanks to an attachable upper cylinder.
Stargun is a complete line of extruders capable of offering the best solutions for welding with material input. The double temperature control according to DVS 2207 – 4 ensures consistent quality.
Ritmo offers experience and expertise to offer customized solutions, designed to ensure maximum productivity in any context.
EASY LIFE manages every phase of the welding cycle thanks to the integration of hardware and software. The operator enters the parameters and validates the phases with a single command, while the electronics ensure repeatability and automatically correct any pressure drops.
The system records up to 4,000 welds with PDF data export and allows quick recall of 50 saved configurations. Active since 2002, it is now in its fourth technological evolution.
The capabilities of pneumatic welders allow for fast and precise exchange phases.
Just a few simple actions on the PLC control panel are enough to quickly program the work cycle and achieve a CNC welding cycle that is always repeatable and error-free.The introduction of the Ritmo “AirPlus” system allows for the completion of a cycle even in the event of a failure in the plant’s pneumatic system.
Fill out the form: our technical team is available to offer support, insights, or personalized advice. We will help you find the solution that best suits your operational needs.
All the simplicity of the hydraulic system at your disposal for perfect welds with sheets up to 4 meters.
It doesn’t matter what position you need to place the sheet — horizontal, vertical, or circular — Polyfusion has all the power to perform the task effectively. Everything is easy, thanks to the reliability of the CNC welding system, where the operator automatically programs the work cycle, eliminating the risk of error. For those who enjoy the tactile experience, compact models for sheets up to 2 meters are available, allowing the operator to manage the welding manually.
The ELEKTRA line speaks your language, featuring welding machines with a multilingual panel that is easy and intuitive to use. A simple system: prepare the pipe, point, read, and start welding. A straightforward action made possible by the automatic acquisition of welding parameters via barcode and scanner (ISO 13950: 2017).
High-productivity welding machines designed to ensure maximum autonomy. Equipped with an onboard generator and tracked drive. They operate in compliance with international standards ISO 21307 High Pressure and ASTM F2620, guaranteeing safe welds and significant time savings
For manual welding models, an innovative data logging system is available with cloud-based storage and analysis. With a capacity of up to 4,000 welding cycles, data is easily accessible. Reports can be exported via USB and saved in PDF format, ready for sharing.
Butt fusion manual welding
An effective pipe joining method where the operator’s experience is essential for proper execution.
QUALITY IN WELDING
Through the use of high-quality materials and rigorous controls, Ritmo can guarantee long-lasting welds that stand the test of time.
