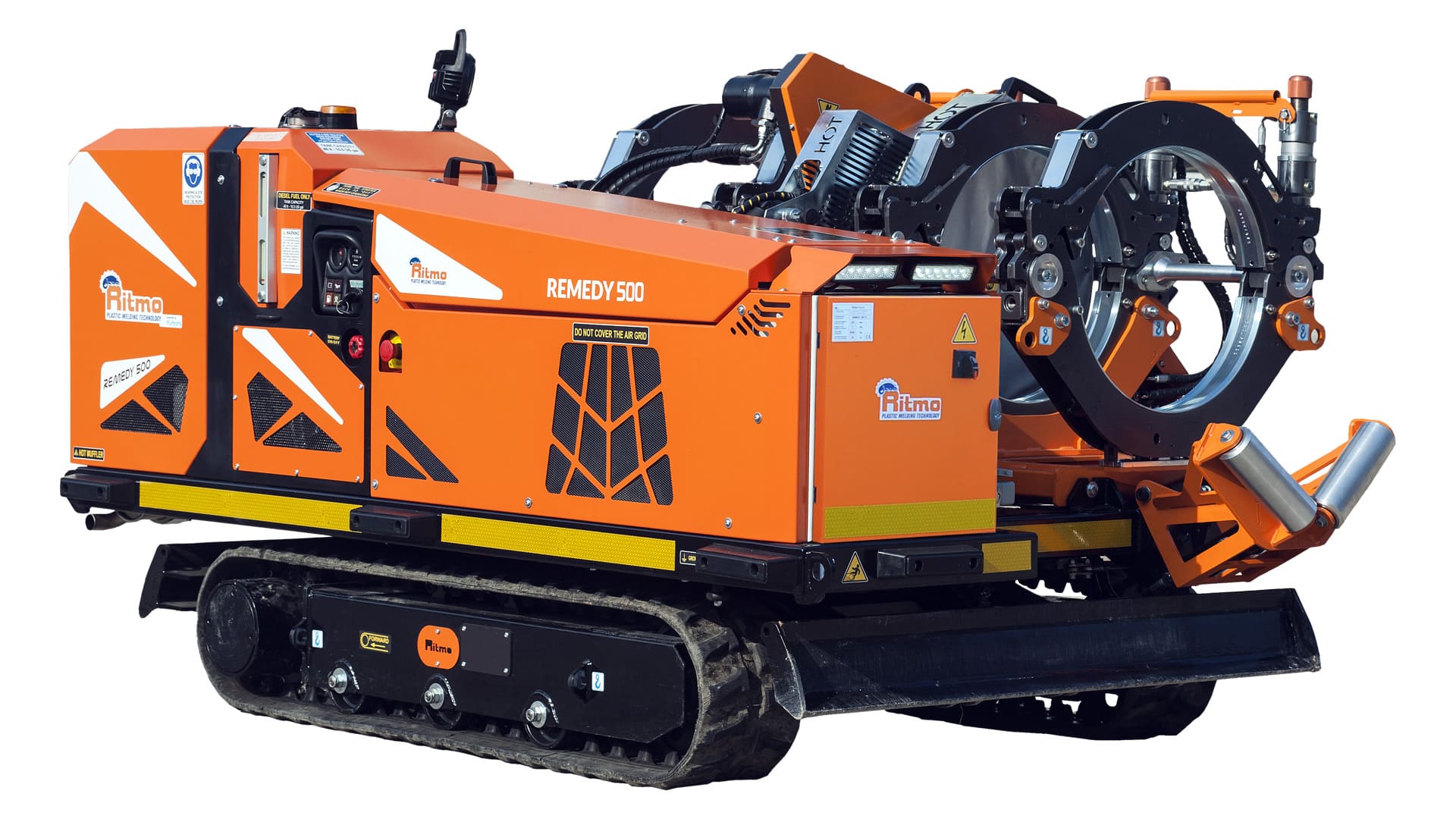

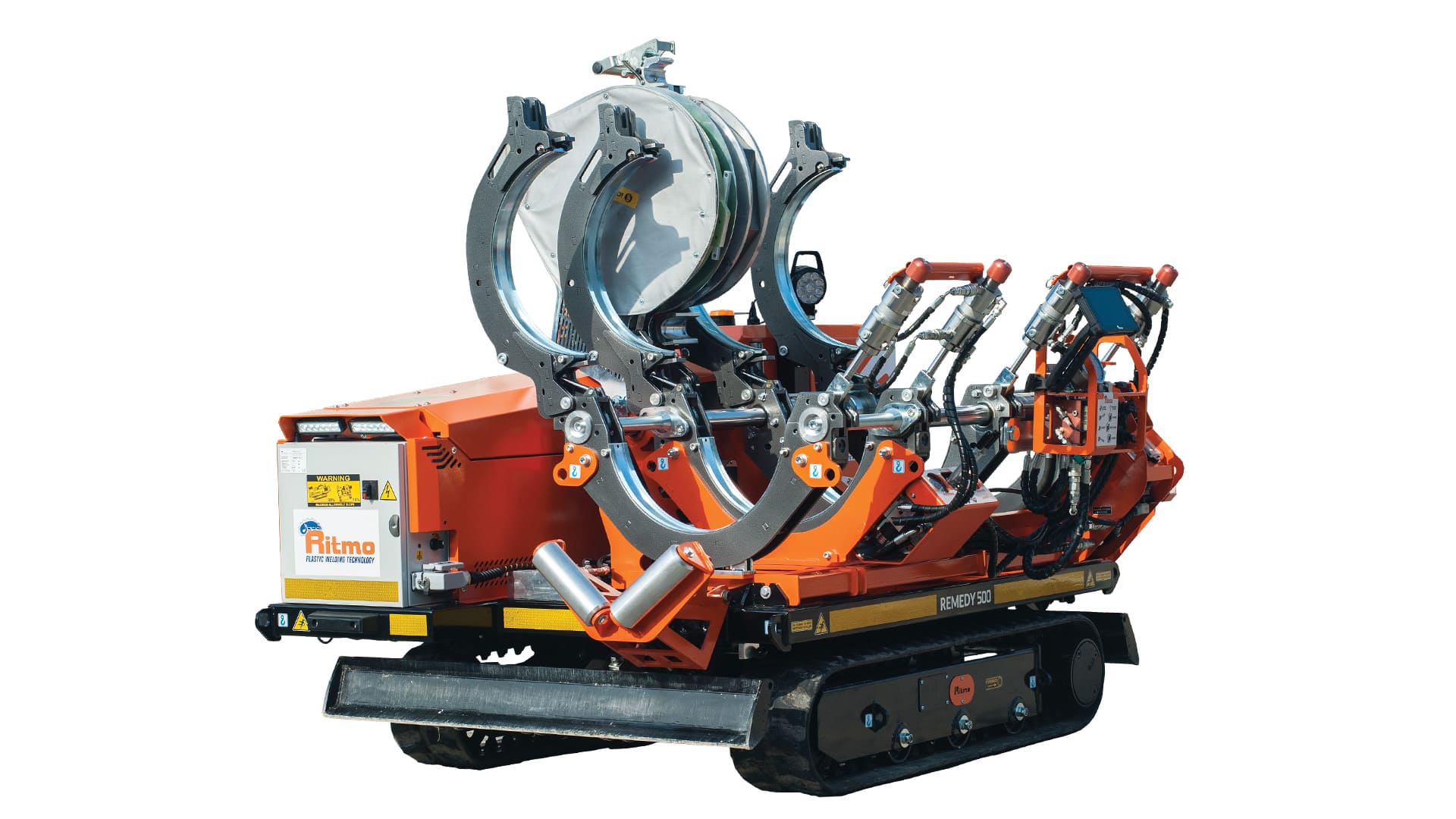

Unique style and design with REMEDY 500 V1
High-productivity welder for small and medium diameters.

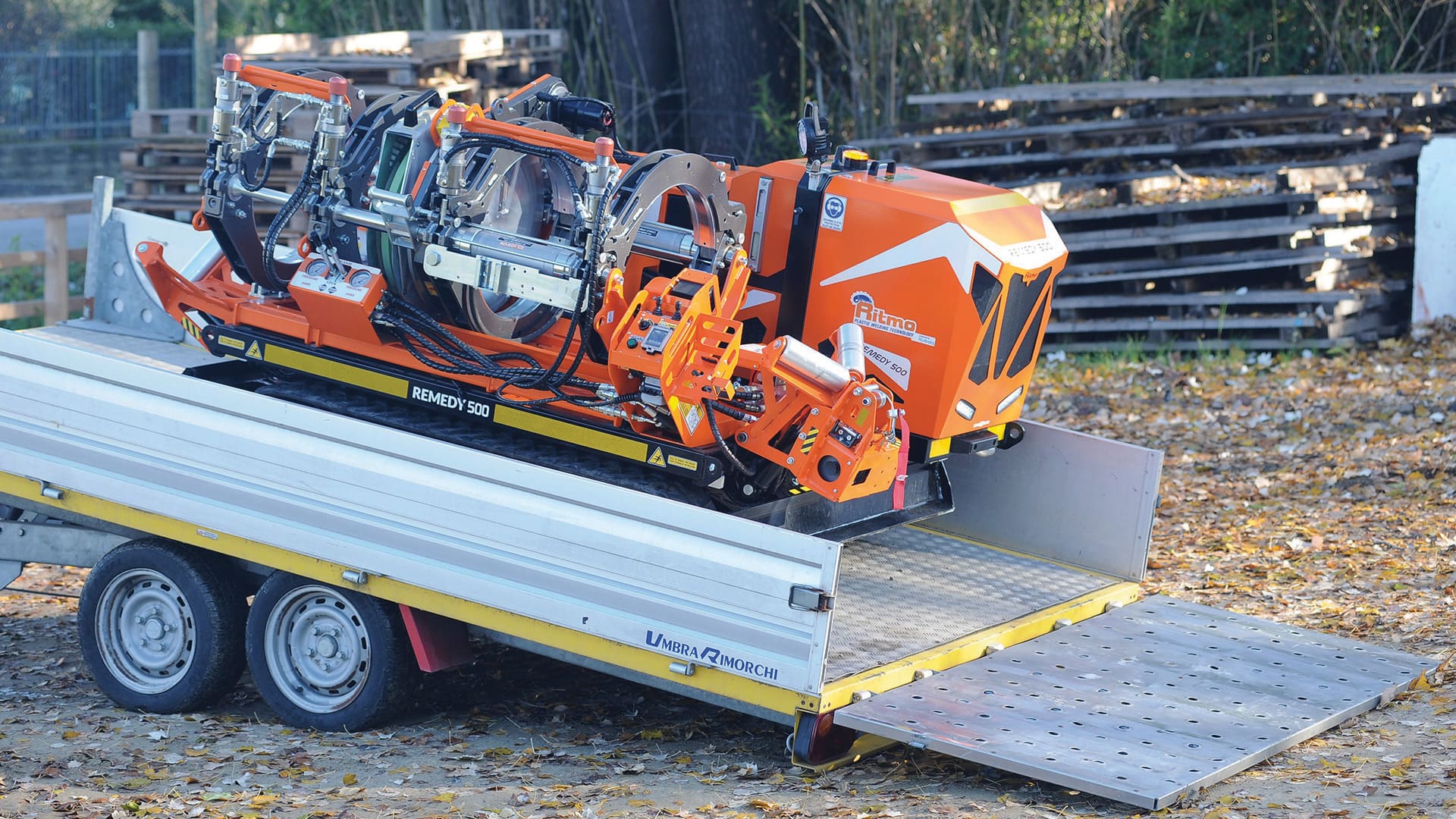

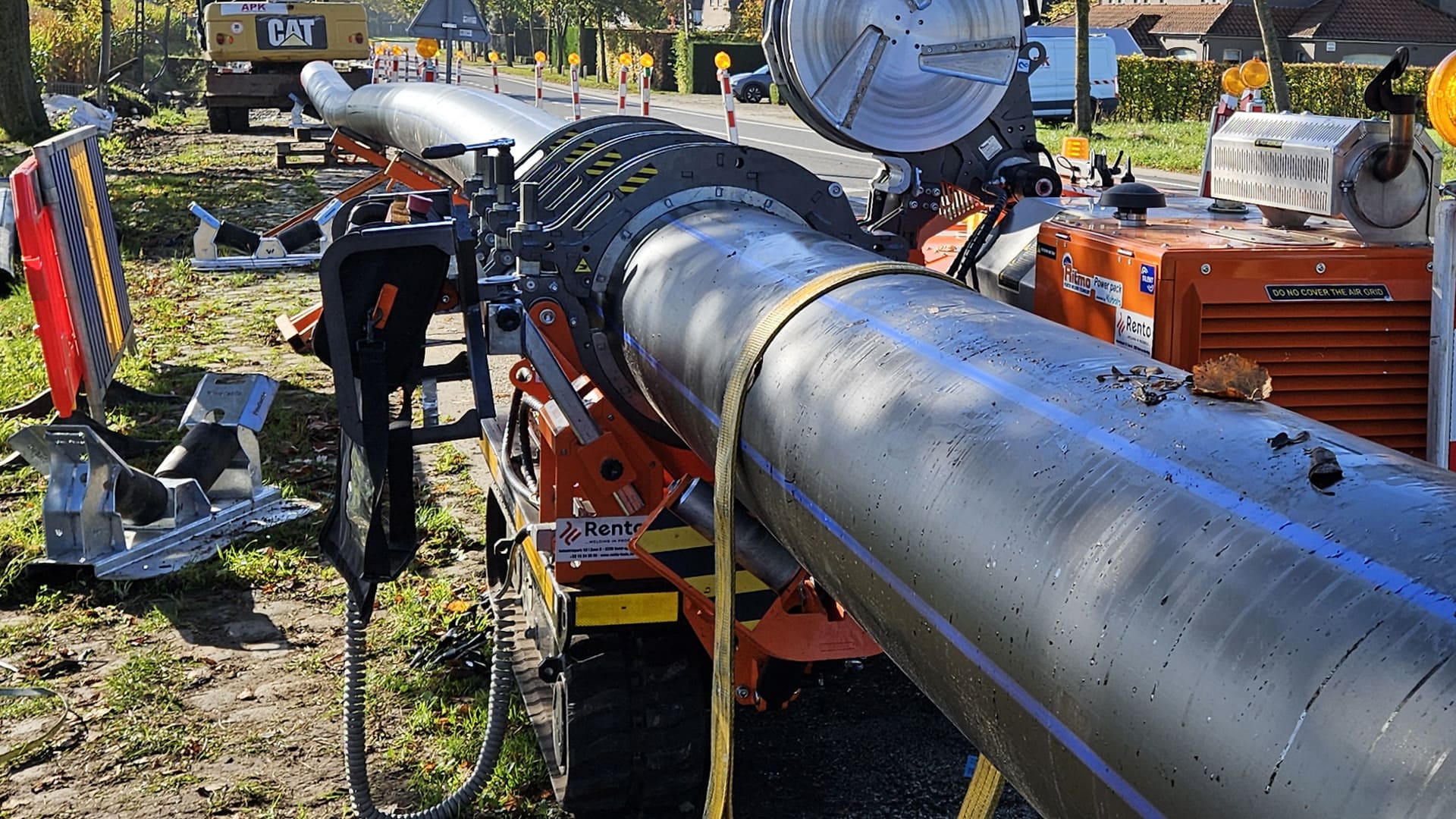

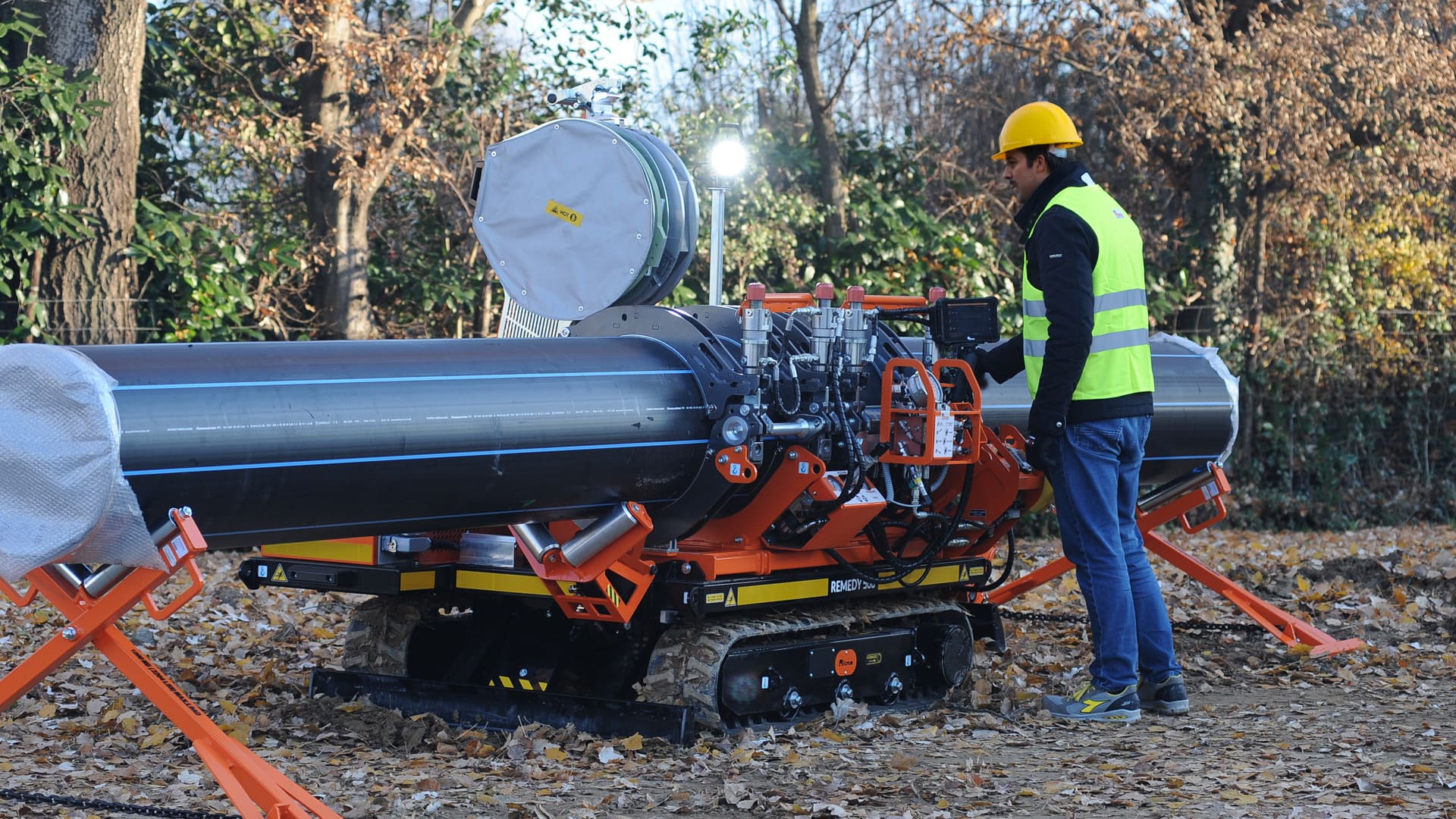

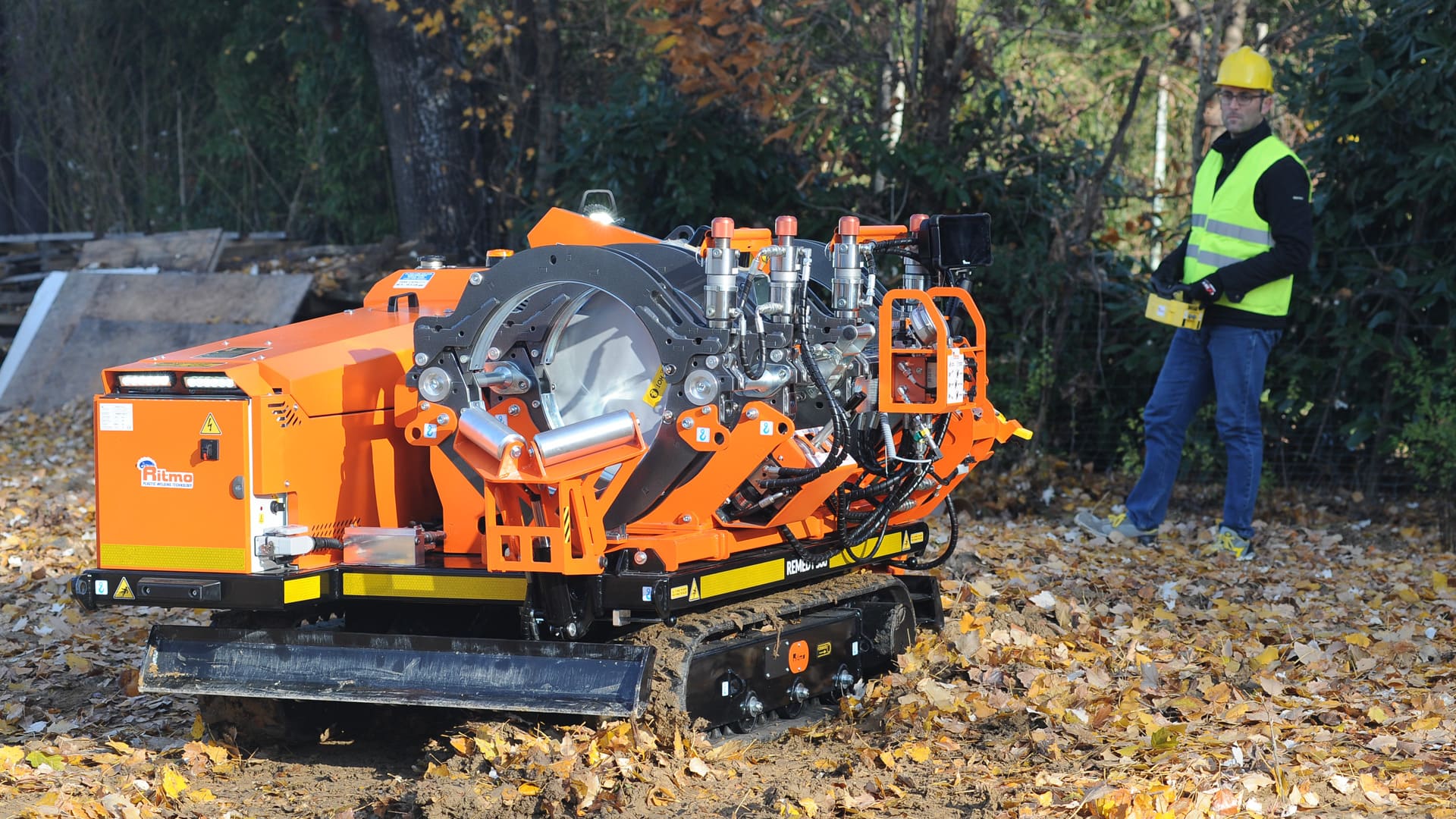

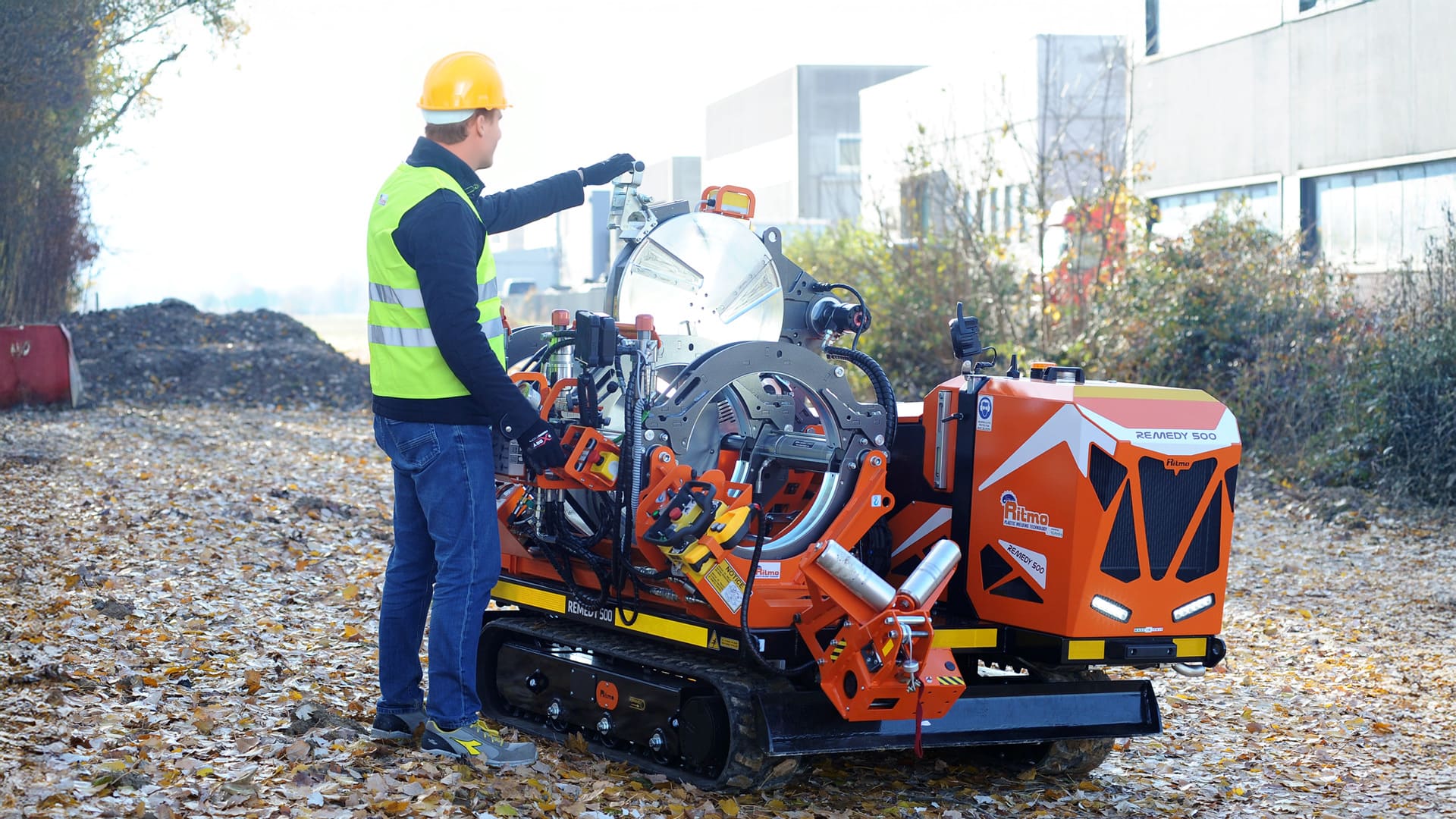

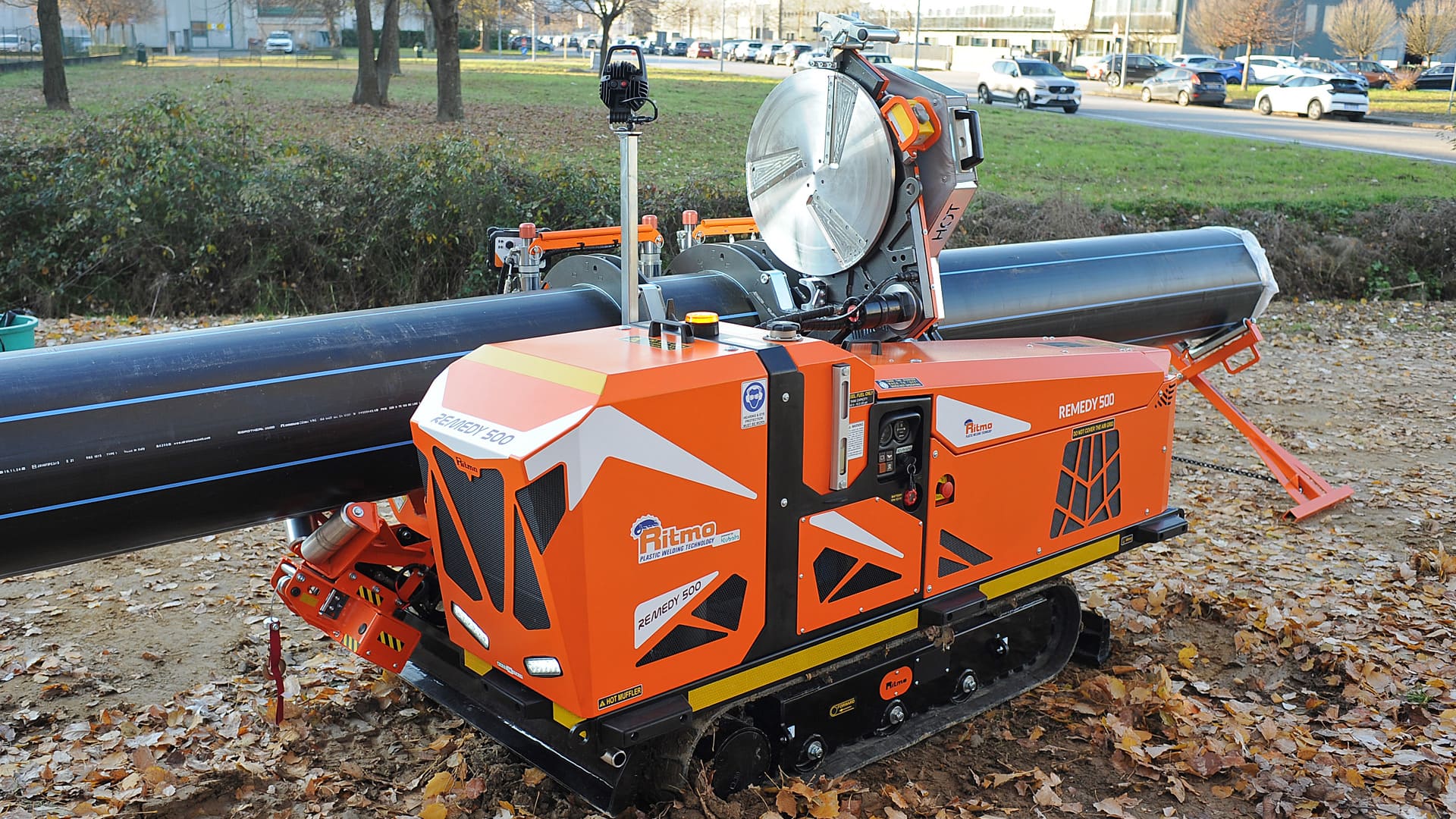

Handy, compact, with on-board generator and track traction Made in Ritmo, introduce our best welding technology into your jobsite.
TECHNOLOGY High Pressure
FEATURES
TECHNICAL SPECS
| Working range | 200 ÷ 500 mm; 6” ÷ 20” IPS 6” ÷ 18” DIPS |
| On board generator | 1123 cc - 17 Kw |
| Fuel | Diesel |

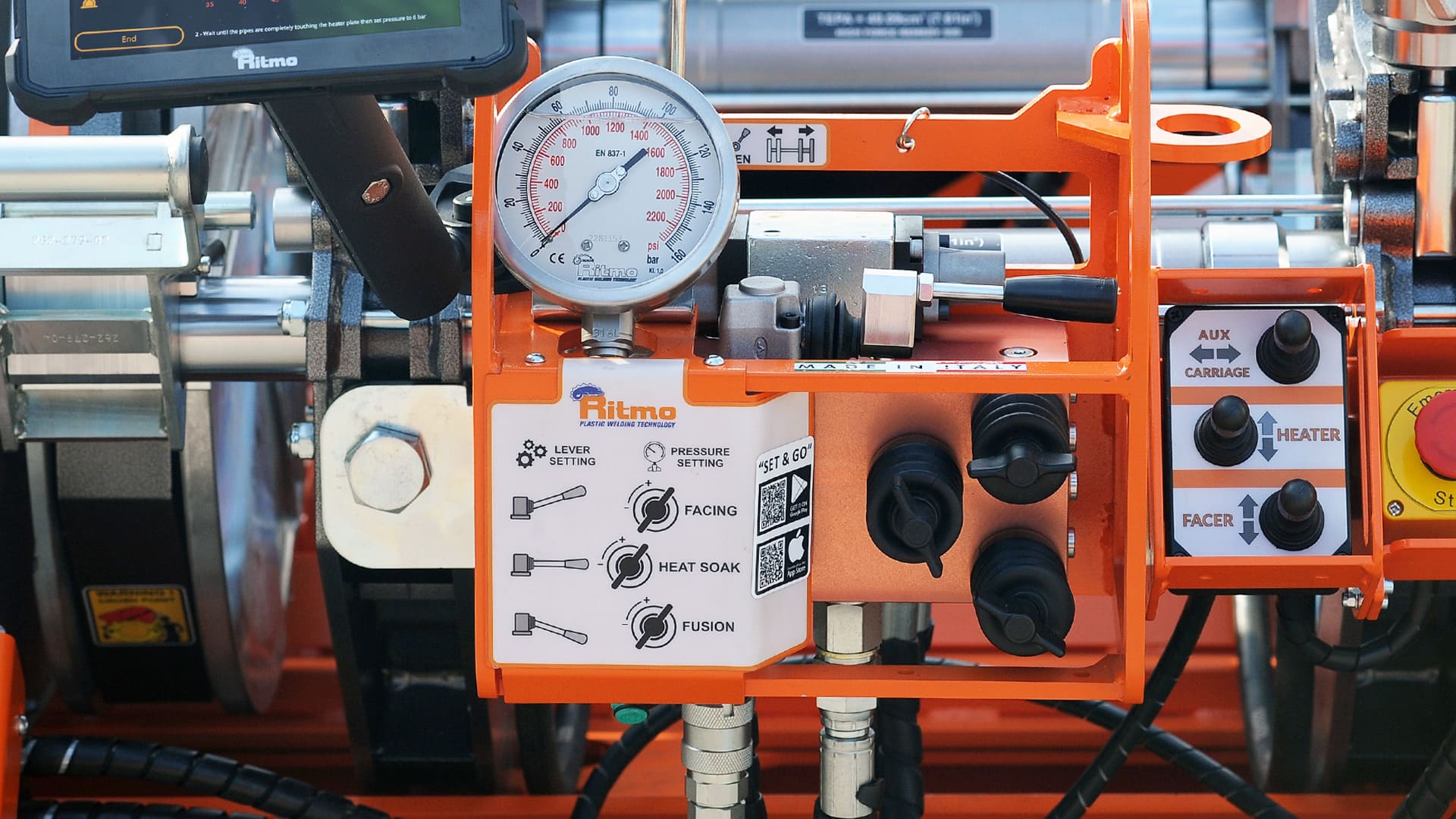

| Manual welding cycle | Yes |
| Traceability GPS | With Inspector 2.0 on request |
| Memory | With Inspector 2.0 on request |
| Working temperature | 180° ÷ 260° C (356° ÷ 500° F) |
| Outside temperature range | -5 ÷ +40°C (23 ÷ 104°F) |
| Pressure | up to 150 bar |
| Fuel tank | 40 L (10.56 gal) |
| Autonomy | 13 hours |
| Max operating slope | 30% |
| Dimensions standard composition (W x D x H) | 2286 x 1668 x 1930 mm 7.5 x 5.5 x 6.3 ft |
| Weight standard composition | 1750 Kg (3858 lb) |

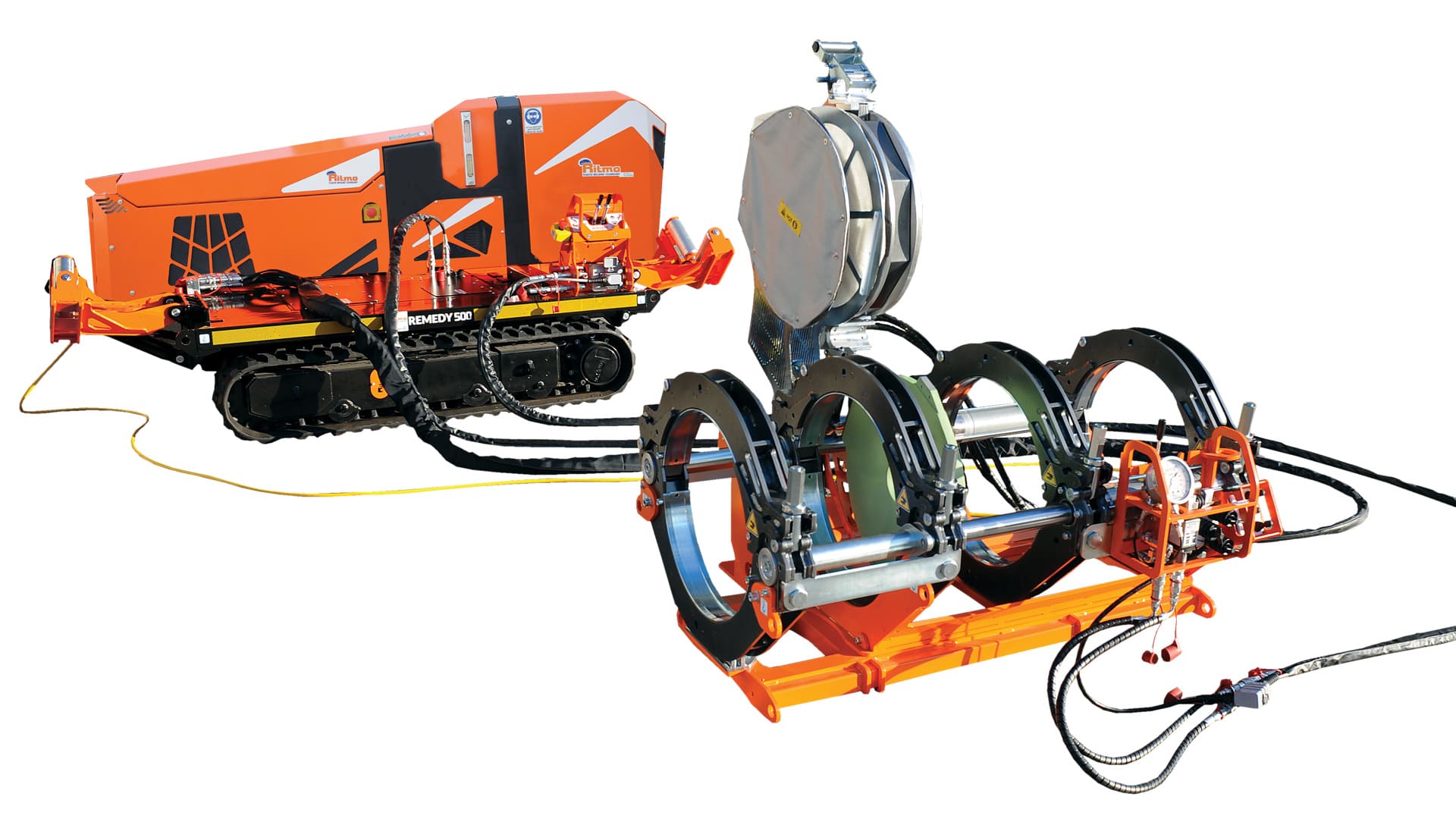

STANDARD COMPOSITION
DOWNLOADS
ACCESSORIES
Would you like more information about this product?
Fill out the form: our technical team is available to offer assistance, insights, or personalized advice. We’ll help you find the solution that best suits your operational needs.
Il servizio di noleggio offre una soluzione rapida e flessibile per affrontare picchi di lavoro, cantieri imprevisti o esigenze temporanee. Le attrezzature sono sempre aggiornate, sottoposte a controlli accurati e pronte all’uso. È possibile richiedere il ritiro in sede o la consegna direttamente in cantiere, con assistenza tecnica garantita.
Butt fusion manual welding
An effective pipe joining method where the operator’s experience is essential for proper execution.
QUALITY IN WELDING
Through the use of high-quality materials and rigorous controls, Ritmo can guarantee long-lasting welds that stand the test of time.
High-productivity welding machines designed to ensure maximum autonomy. Equipped with an onboard generator and tracked drive. They operate in compliance with international standards ISO 21307 High Pressure and ASTM F2620, guaranteeing safe welds and significant time savings
For manual welding models, an innovative data logging system is available with cloud-based storage and analysis. With a capacity of up to 4,000 welding cycles, data is easily accessible. Reports can be exported via USB and saved in PDF format, ready for sharing.
