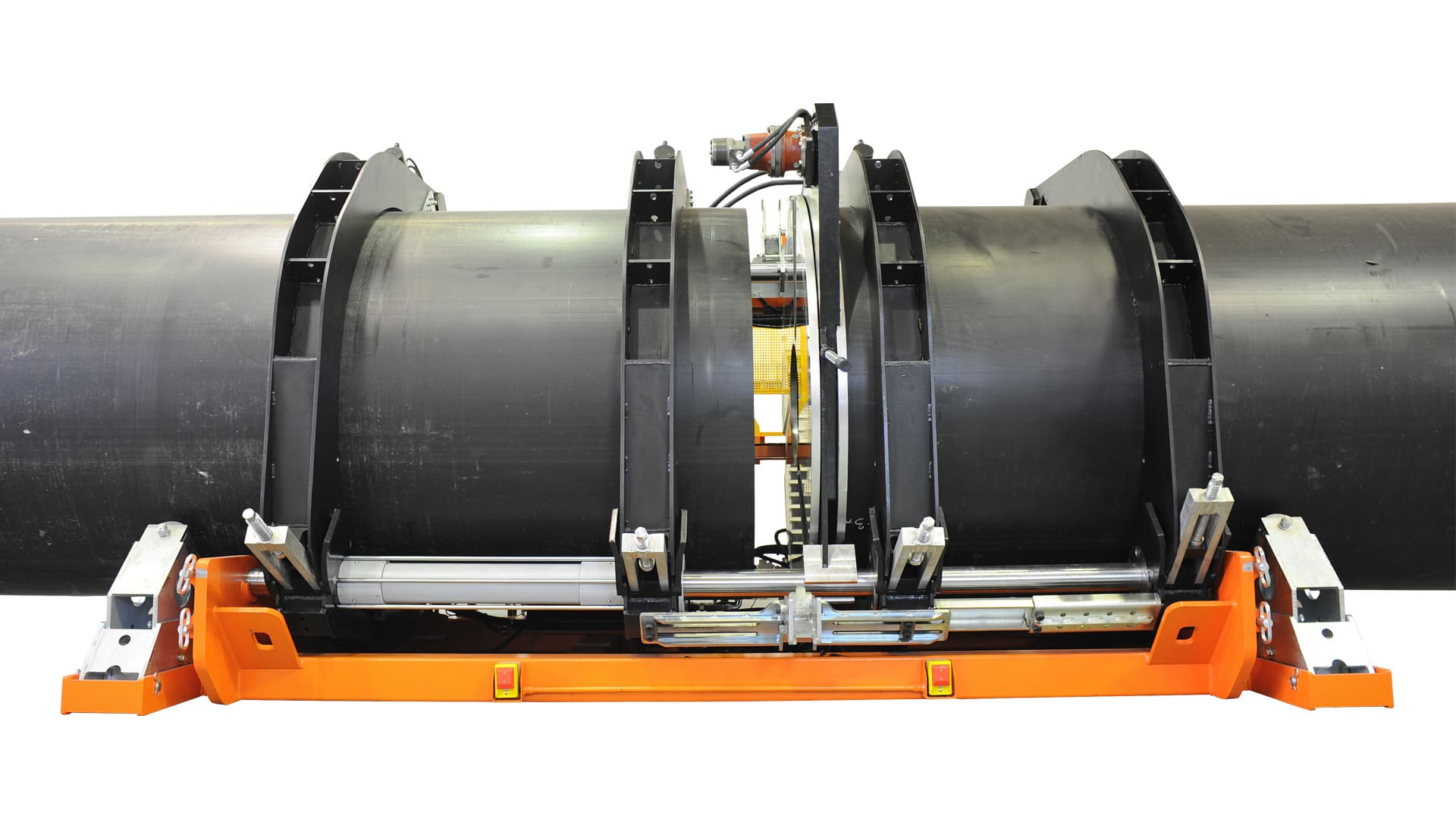

Professional welding machine designed to last for years.

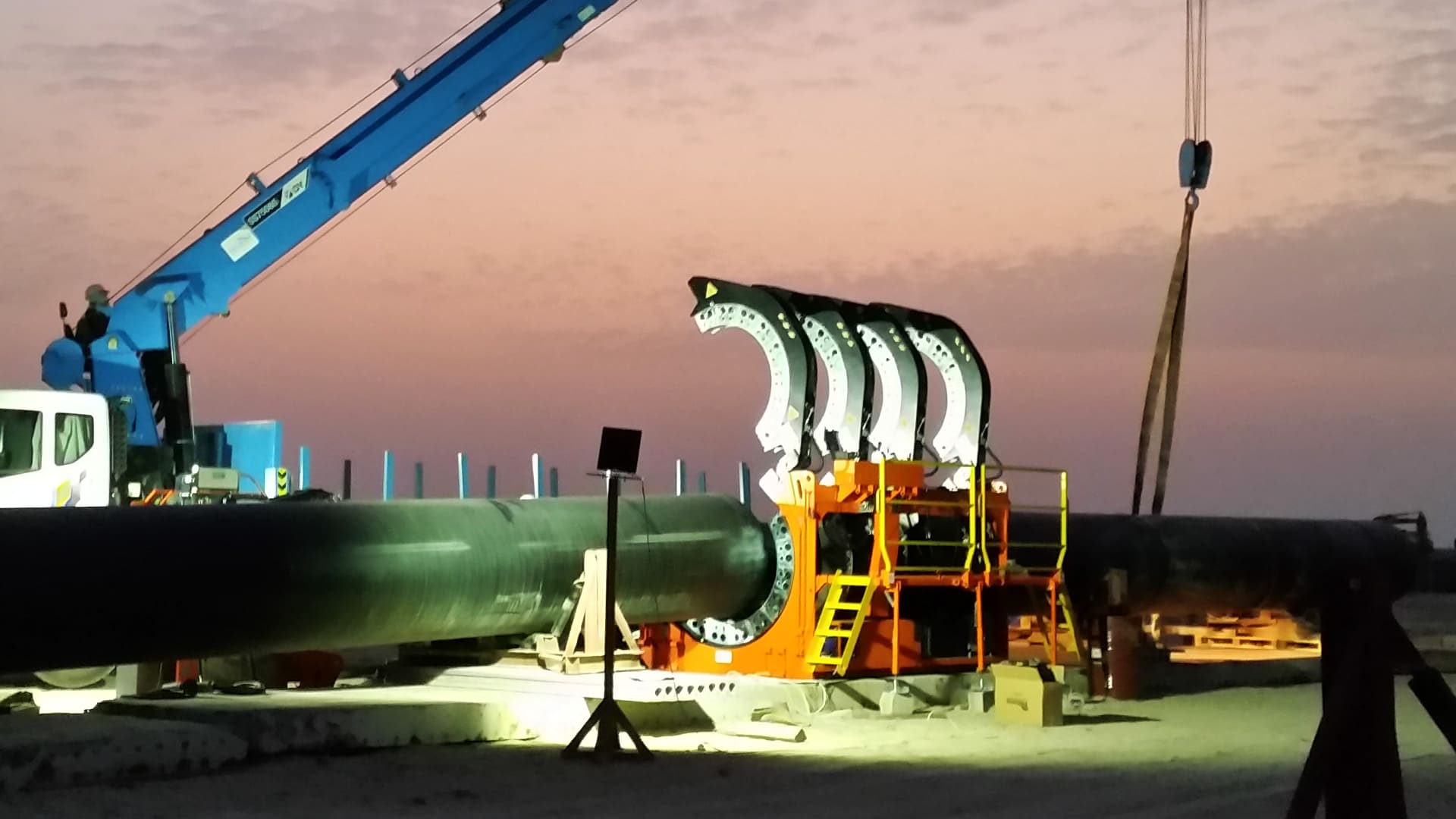

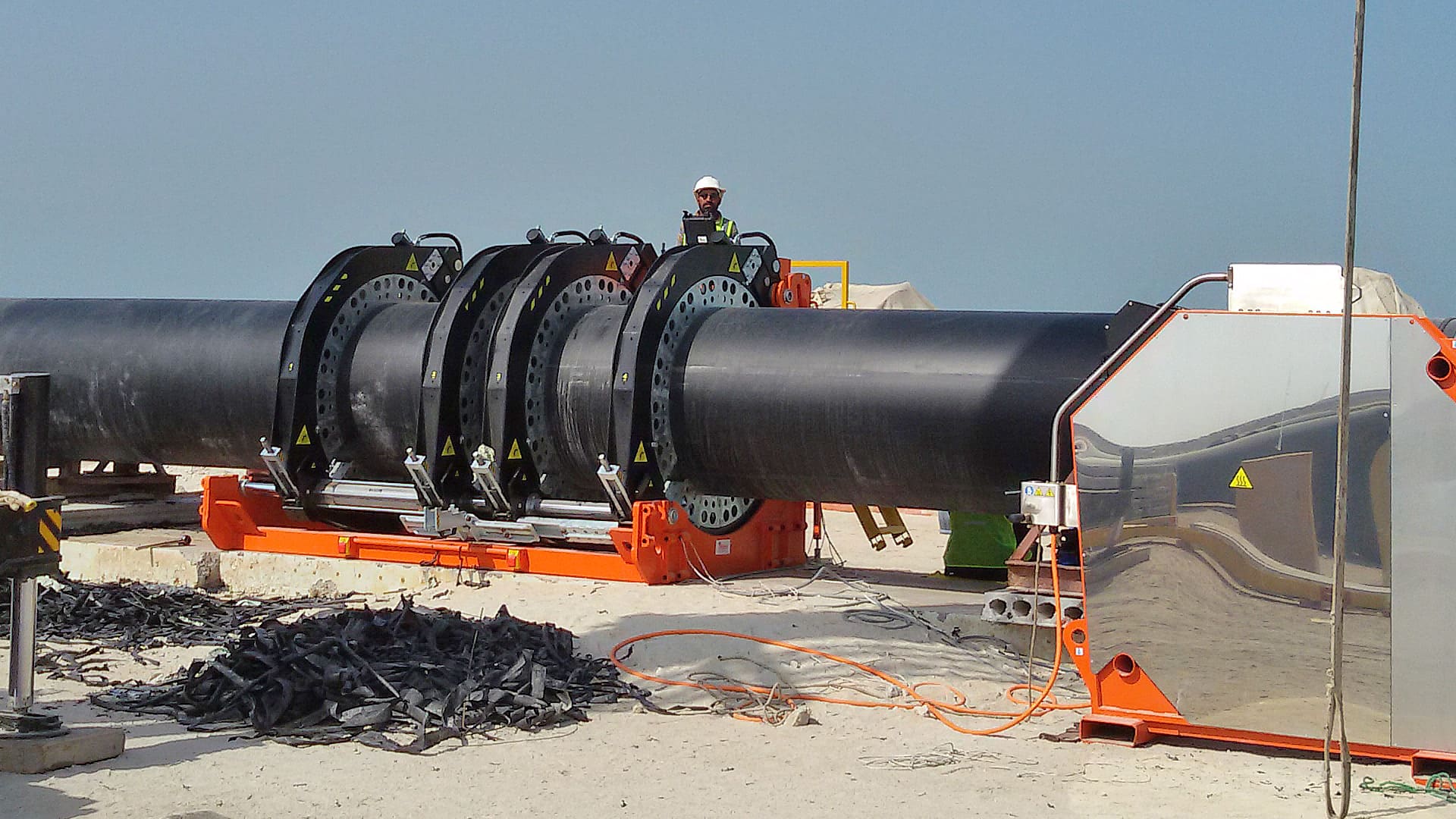

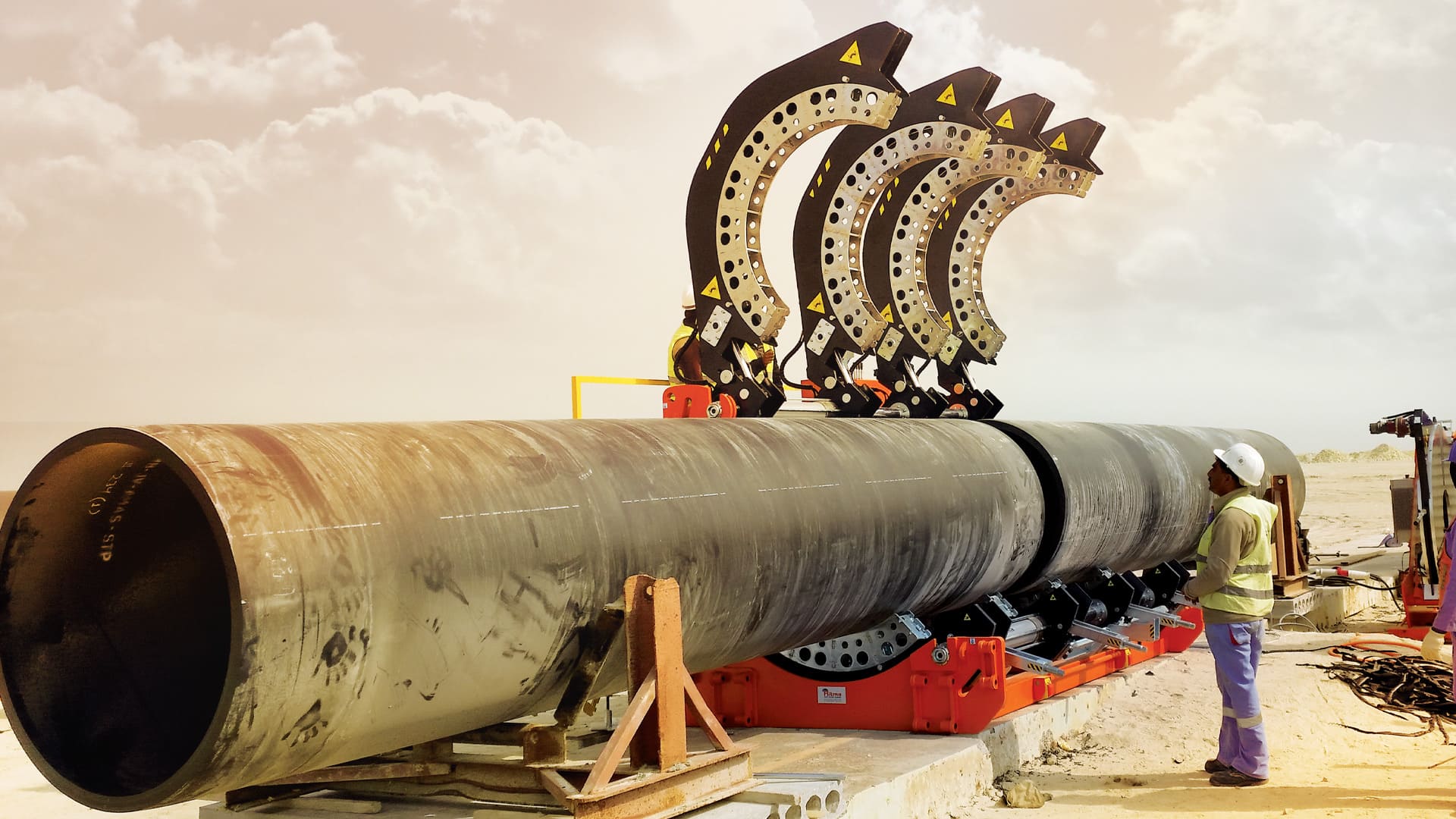

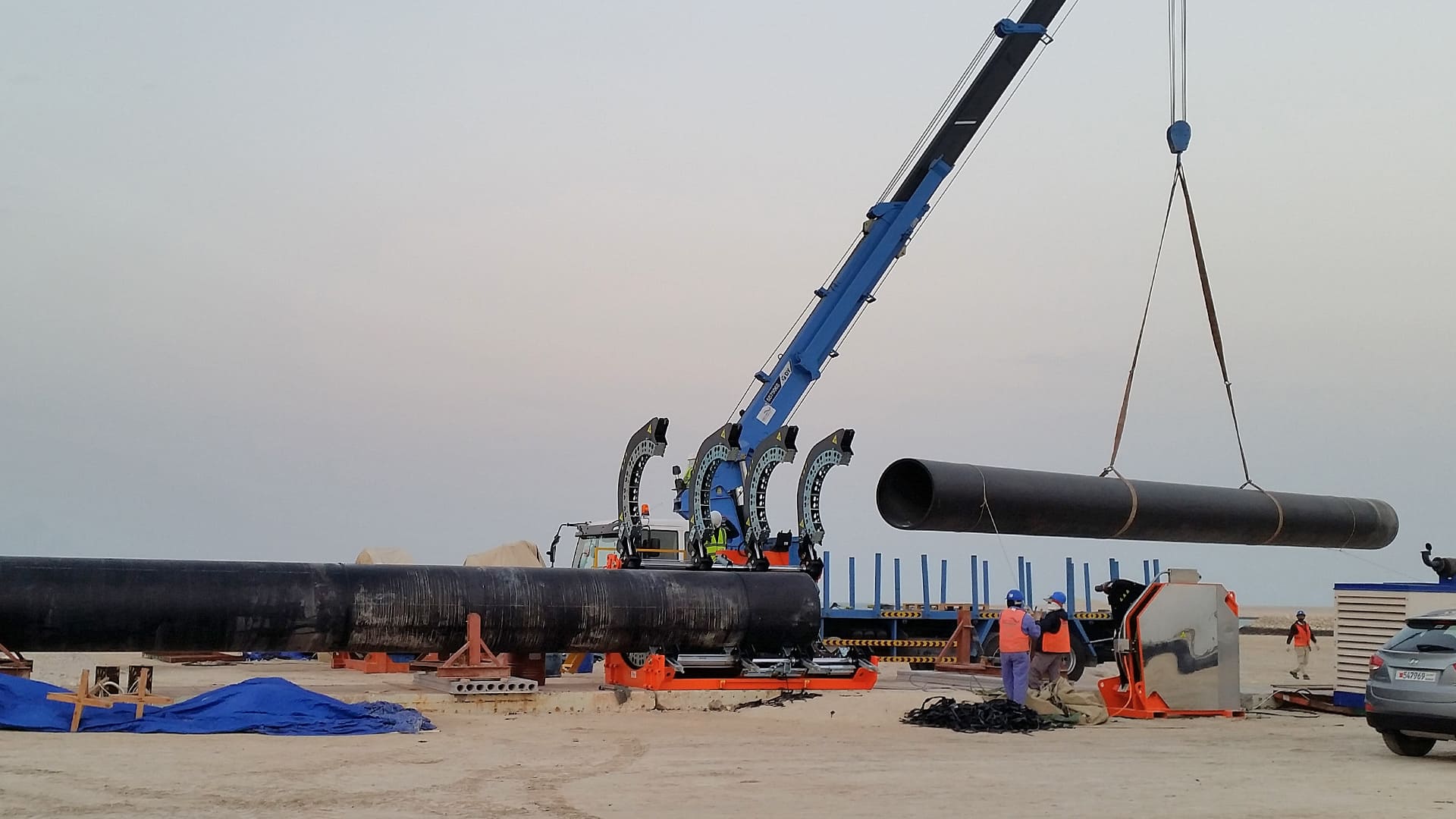

With Delta 1600 HDR you weld HDPE and PP pipes for pressure pipelines (water, gas and others) safely up to Ø 1600 mm.
Built in compliance with UNI 10565 and ISO 12176-1 standards, and to Ritmo’s high standards, this welding machine ensures high-level performance.
TECHNOLOGY Manual HPU
FEATURES
TECHNICAL SPECS
| Working range | 800 ÷ 1600 mm; 32” IPS ÷ 54” IPS; 30” DIPS ÷ 60” DIPS |
| Power supply | 400 V 3-Phase 50/60 Hz |
| Total absorbed power | 55500 W |
| Suggested power generator | 75 kVA |
| Working temperature | 180° ÷ 280° C (356° ÷ 536° F) |
| Outside temperature range | -10° ÷ 40° C (14° ÷ 104° F) |
| Time to reach welding temperature | < 45’ |
| Dimensions Body machine (W x D x H) | 3550 x 2400 x 2550 mm (140 x 94.4 x 100.5 in) |
| Weight Body machine | 4800 Kg (10585 lb) |
| Weight standard composition | 6580 Kg ( 14506 Ib) |
STANDARD COMPOSITION
ACCESSORIES
Would you like more information about this product?
Fill out the form: our technical team is available to offer assistance, insights, or personalized advice. We’ll help you find the solution that best suits your operational needs.
