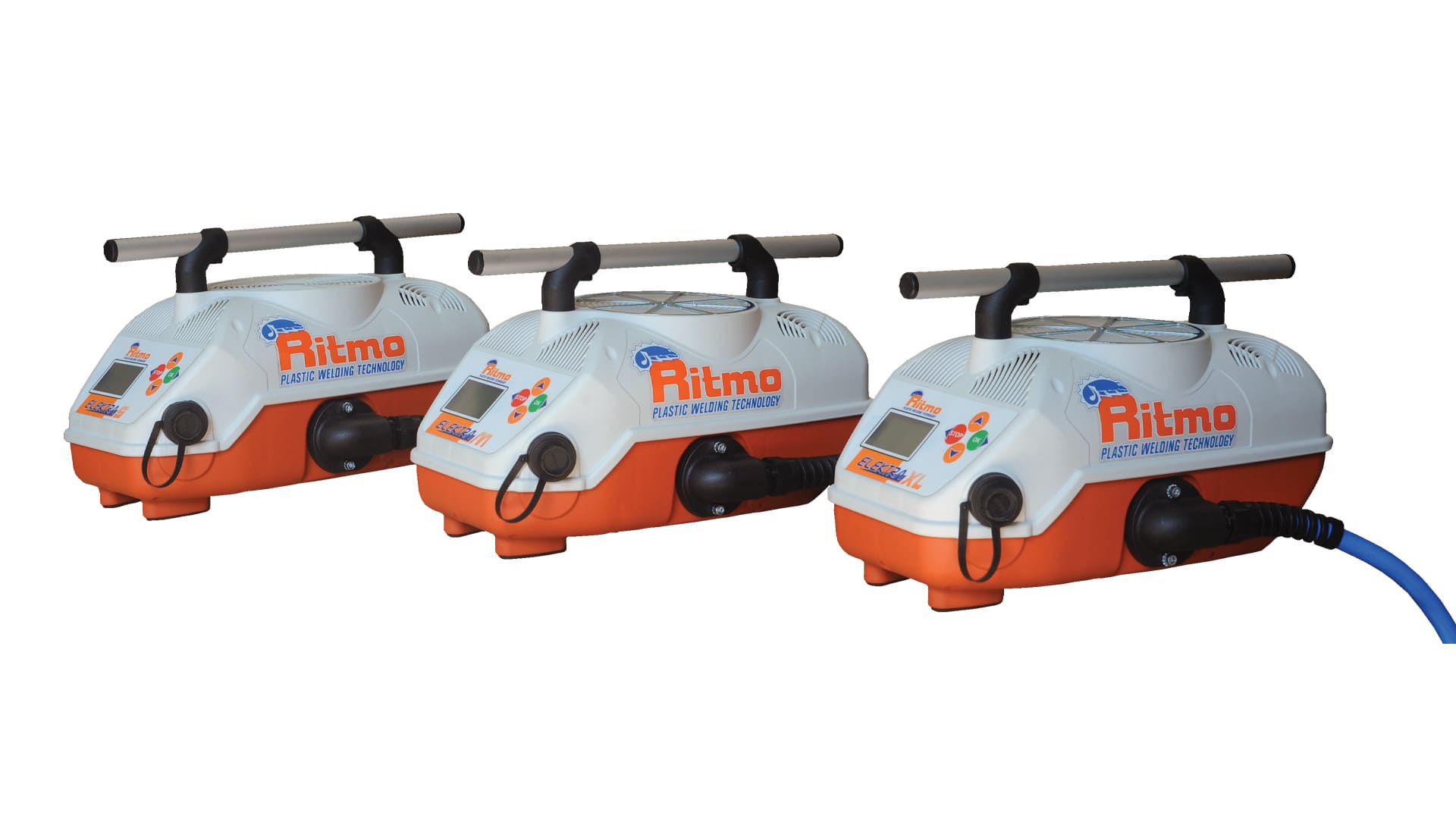

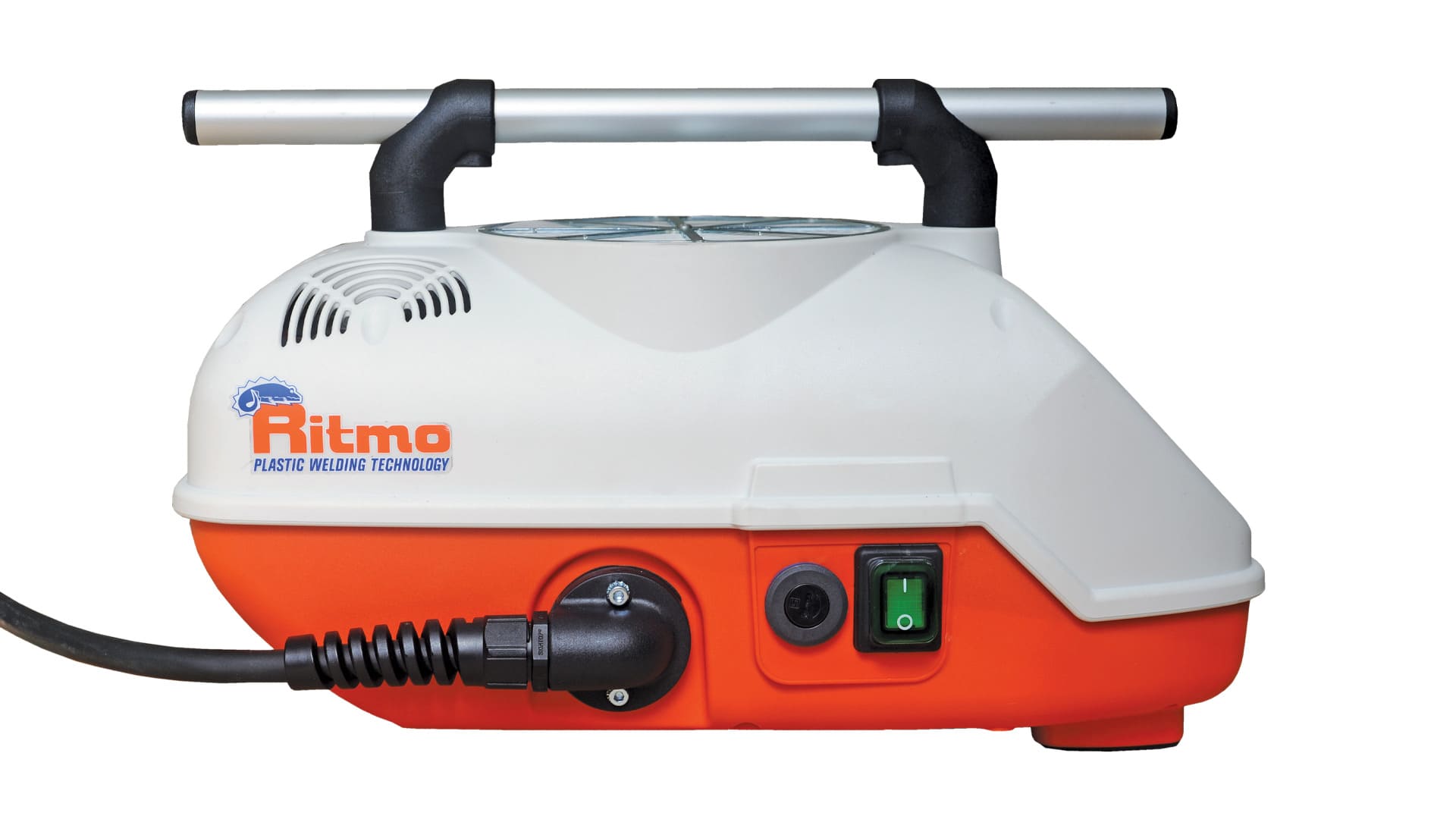

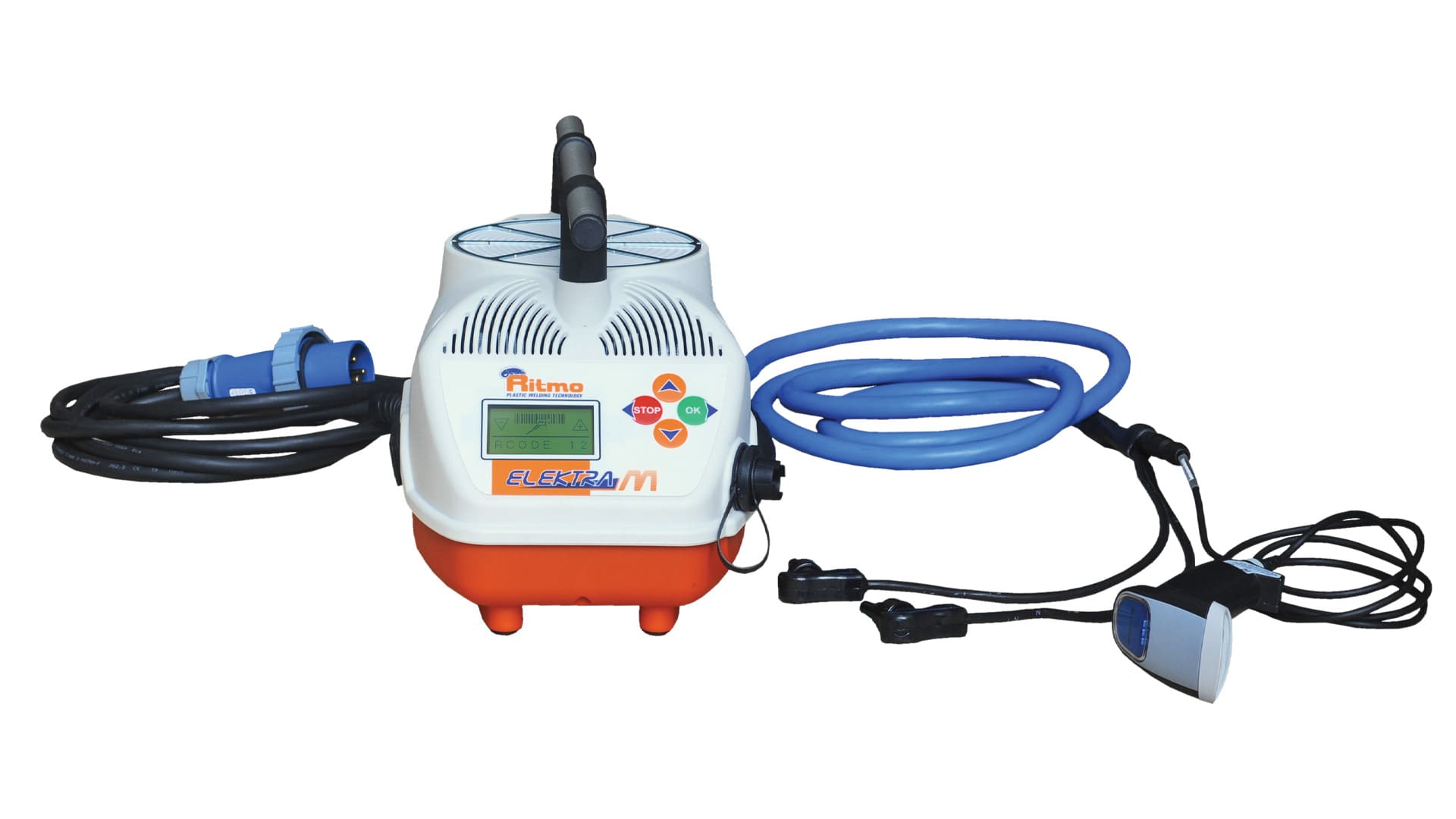

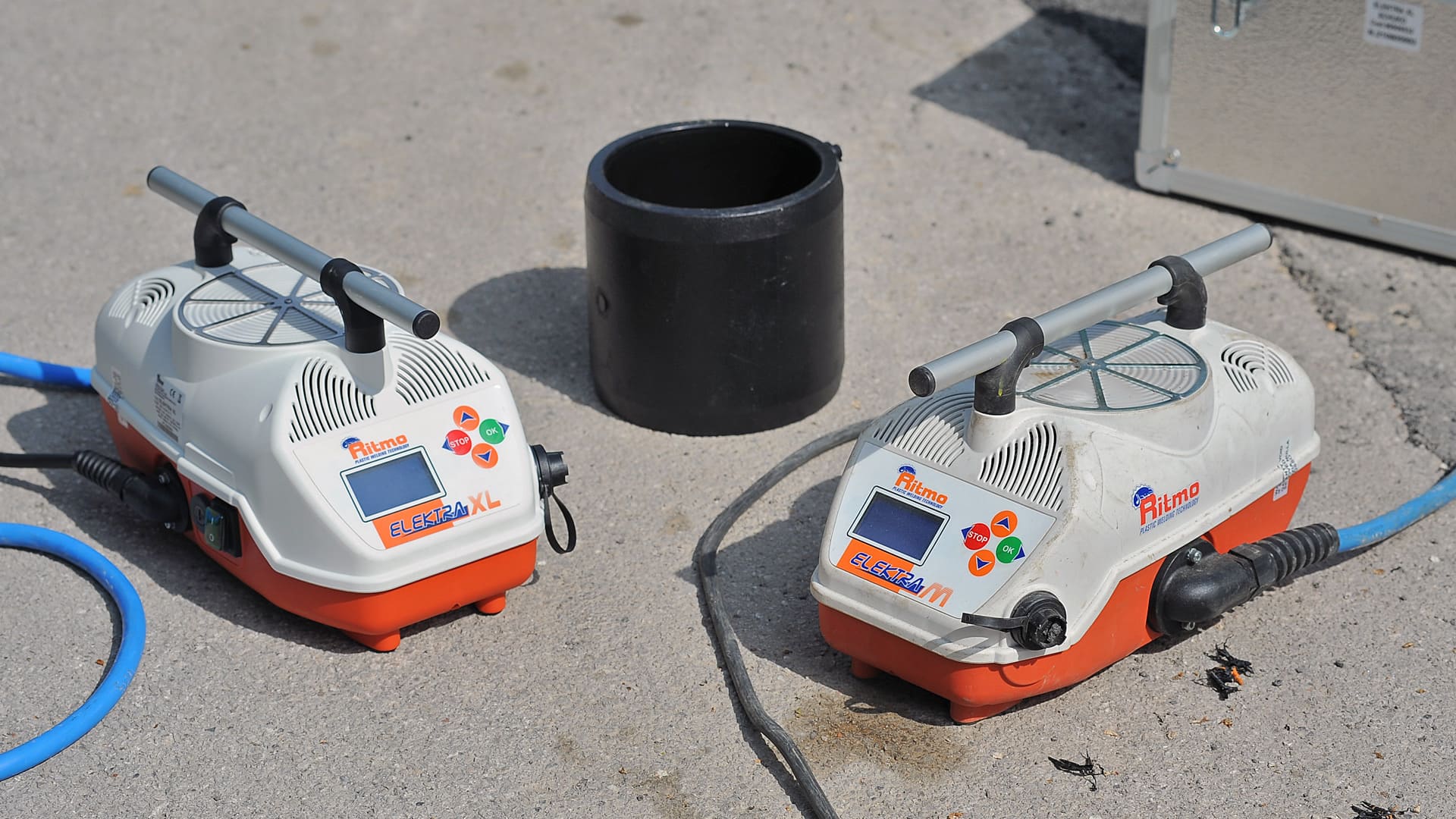

Your high-performance, lightweight welding control unit for electrofusion for small and medium diameters.
Elektra M is the compact, versatile welder for electrofusion fittings for pressure pipelines in PE, PP, PP-R. With Elektra M, you can weld fittings from 8 ÷ 48 V and up to Ø 315* mm (230 V version) or 500* mm (110 V version).
Collaboration with multiple partners worldwide has given Ritmo extensive technical knowledge, not tied to a single manufacturer of electrofusion fittings.
* The working range may vary depending on the brand of fittings. Check with the fitting manufacturer for the required welding power and time.
TECHNOLOGY Pressure
FEATURES
TECHNICAL SPECS
| Working range | 20 ÷ 500 mm ½” IPS ÷ 20” IPS (110 V) 20 ÷ 315 mm ½” IPS ÷ 12” IPS (230 V) |
| Automatic ambient temperature compensation (through the reading of the EF fitting barcode) | Yes |
| Continuous welding cycle monitoring | Yes |
| Barcode scanner (ISO 13950) | Yes |
| Manual welding parameters input | Yes |
| Connection | USB-A |
| Welding report file format | PDF- CSV- BIN |
| Memory | 8000 cycles |
| Connector | Universal adapter 90° Ø 4.00 - 4,7 mm |
| Traceability ISO | 12176 - 3 12176 - 4 |
| Power supply | 110 V - 50/60 Hz 230 V - 50/60 Hz |
| Absorbed power (Power at 60% Duty Cycle) | 2200W (110 V) 2300 W (230 V) |
| Suggested generator | 5,5 ÷ 6 kVA |
| Max output current | 80 A (110 V) 100 A (230 V) |
| Welding output voltage | 8 ÷ 48 V |
| Outside temperature range | -20° ÷ 50° C; -4° ÷ 122° F |
| Dimensions Body machine (W x D x H) | 246 x 390 x 240 mm; 7.9” x 15.3” x 9.4” |
| Weight Body machine + cable + laser scanner | 9,2 Kg; 20.2 lb |
| Dimensions transport case (W x D x H) | 290 x 445 x 295mm 11.4” x 17.5”x 11.6” |
STANDARD COMPOSITION
