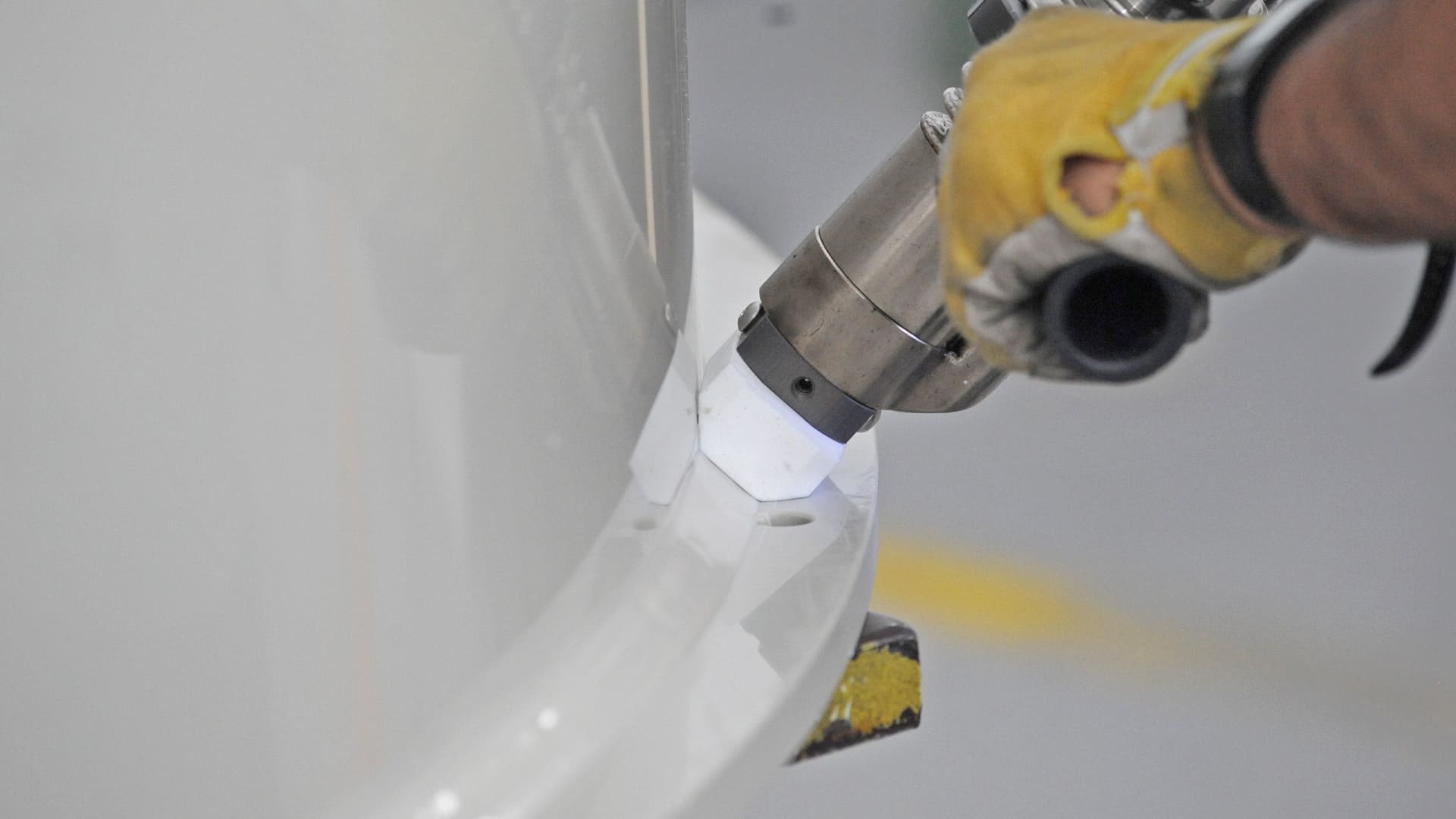

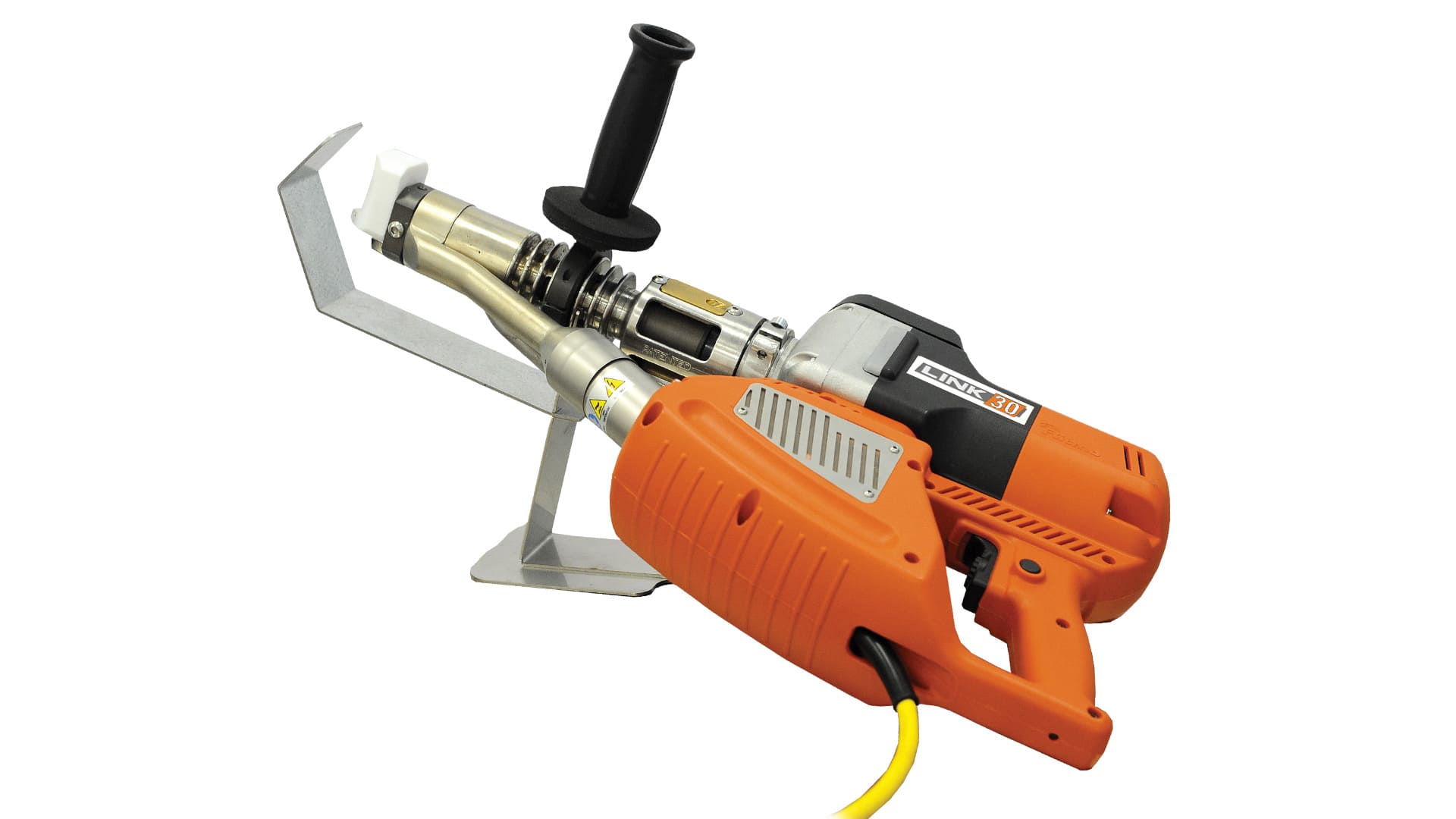

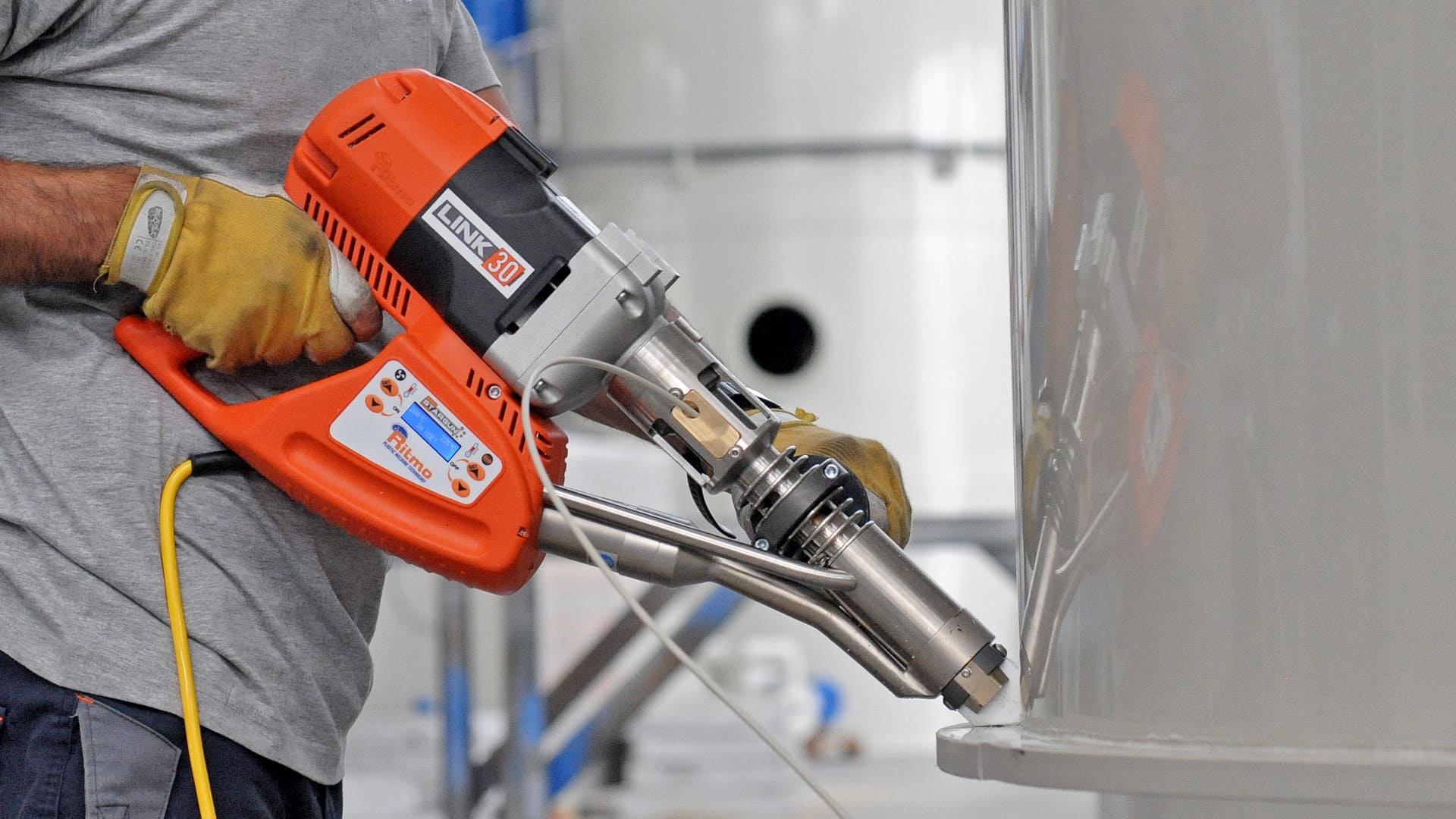

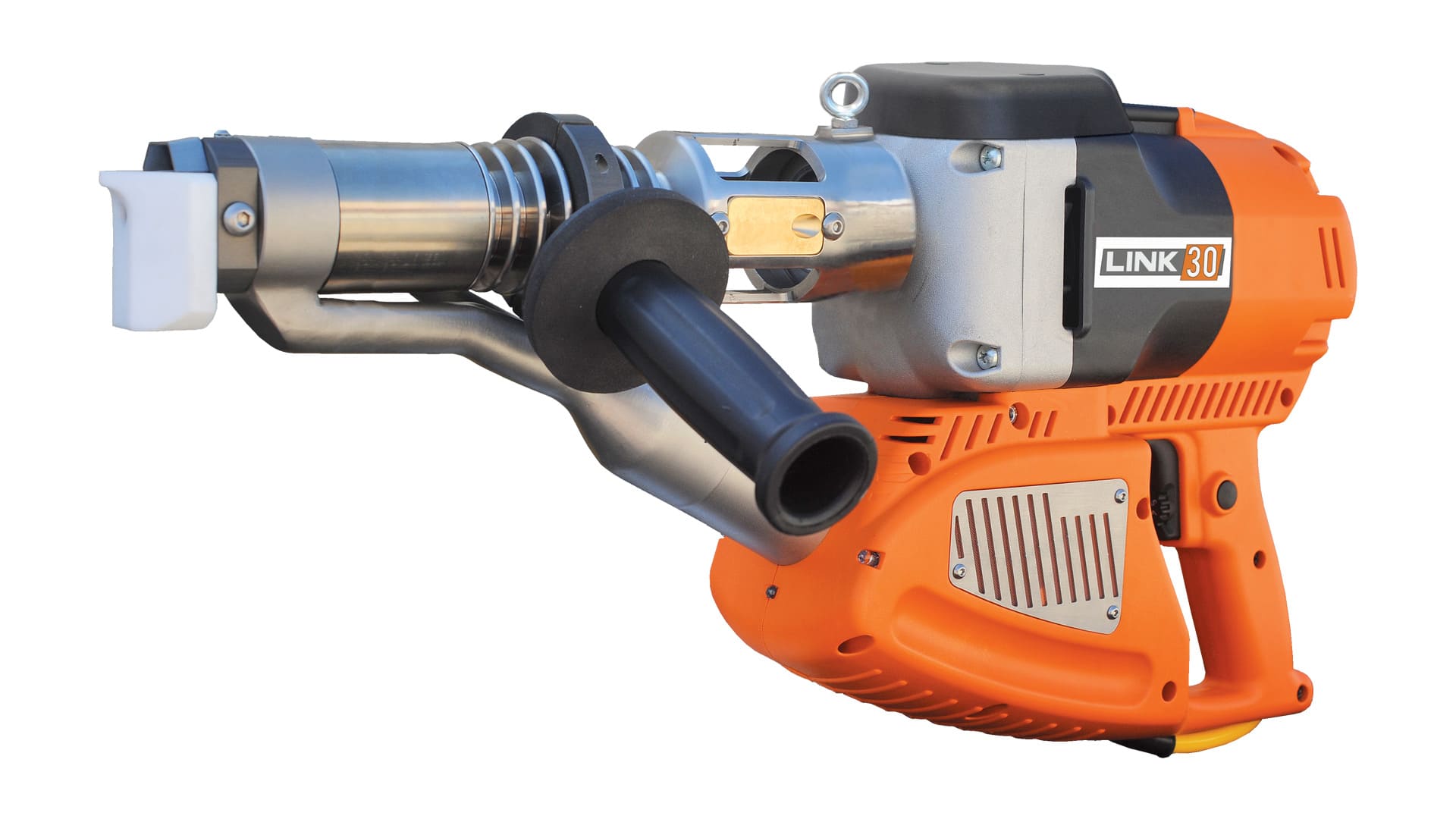

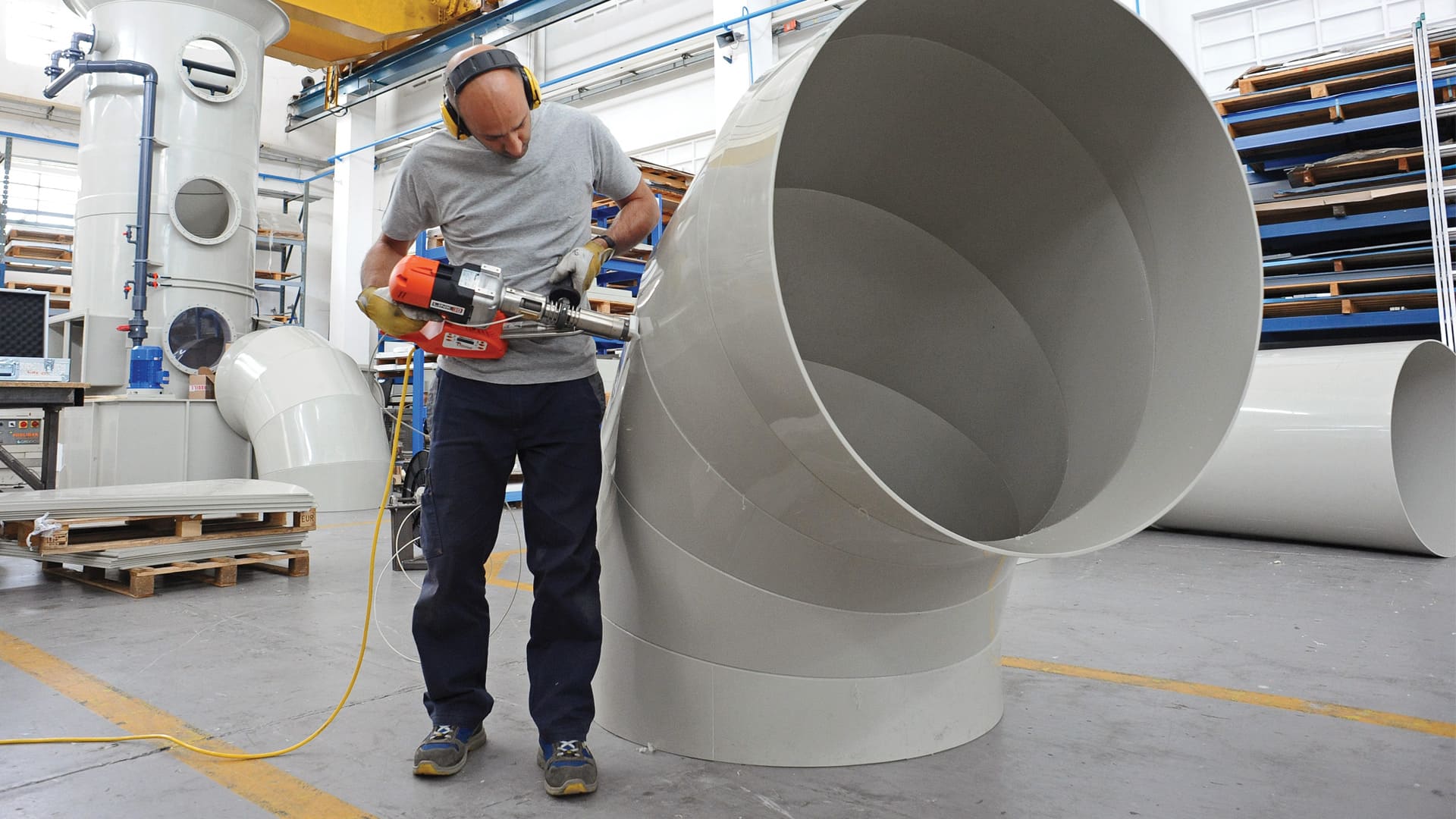

Stargun is a complete line of extruders capable of offering the best technological solutions for welding with material addition in HDPE, PP, PVDF. The Link 20/30/40 models stand out for quality, handling, and design. Three compact and easy-to-use products.
The inevitable choice for those customers who make quality the essence of their work.
TECHNOLOGY Extrusion
FEATURES
TECHNICAL SPECS

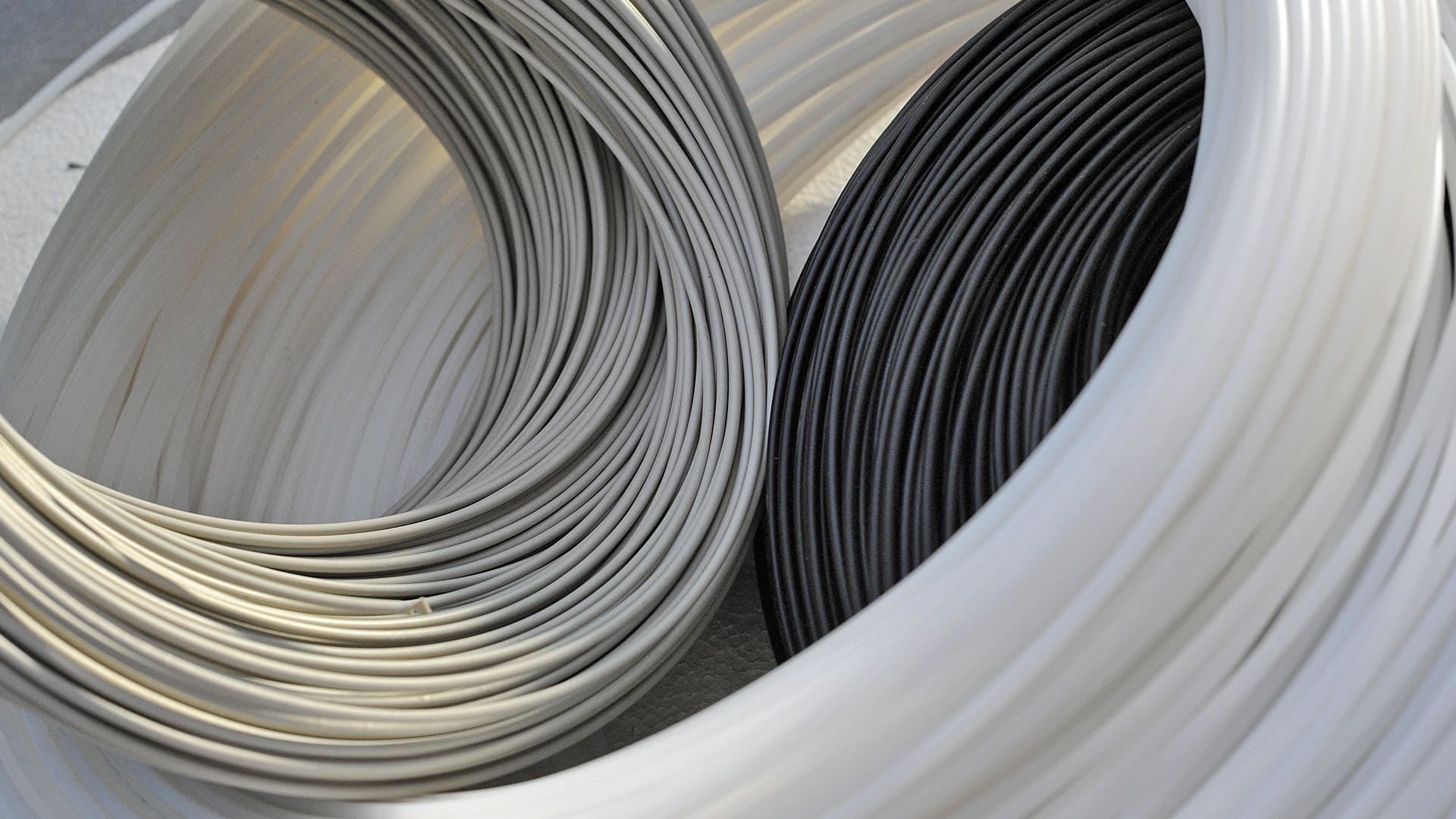

| Rod | Ø 3 - 4 - 5 mm 1/8" - 5/32" - 3/16" |
| Sheets | 1,5 ÷ 30 mm 1/16" ÷ 1.1" |
| Productivity | 3,2 Kg/h PE rod Ø 5 mm 3/16" |
| Power supply | 230 V - 50/60 Hz |
| Total absorbed power | 3500 W |
| Dimensions | 540 x 260 x 110 mm 21.2" x 10.2" x 4,3" |
| Weight | 6,8 Kg (15 lb) |

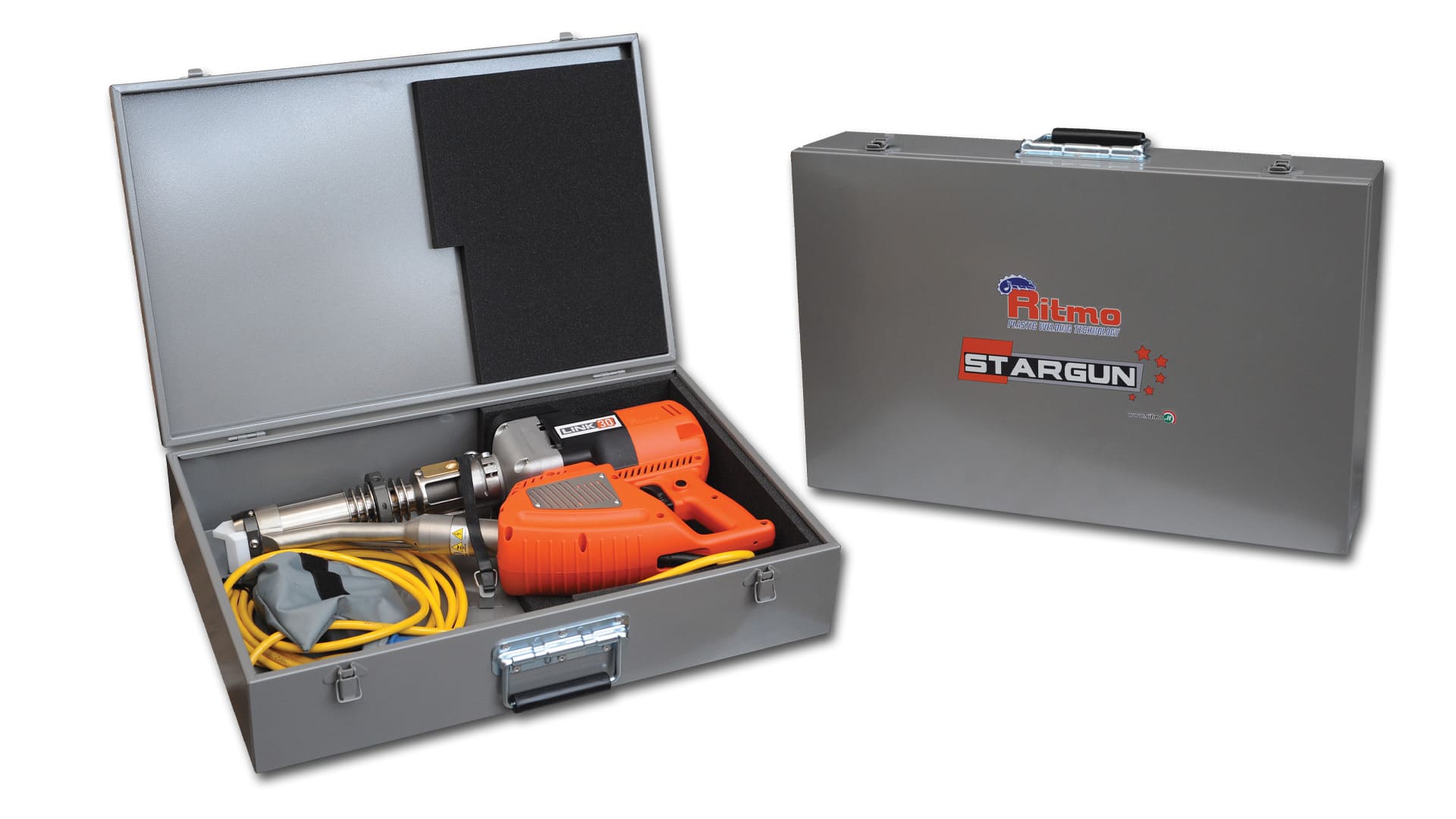

STANDARD COMPOSITION
Would you like more information about this product?
Fill out the form: our technical team is available to offer assistance, insights, or personalized advice. We’ll help you find the solution that best suits your operational needs.
