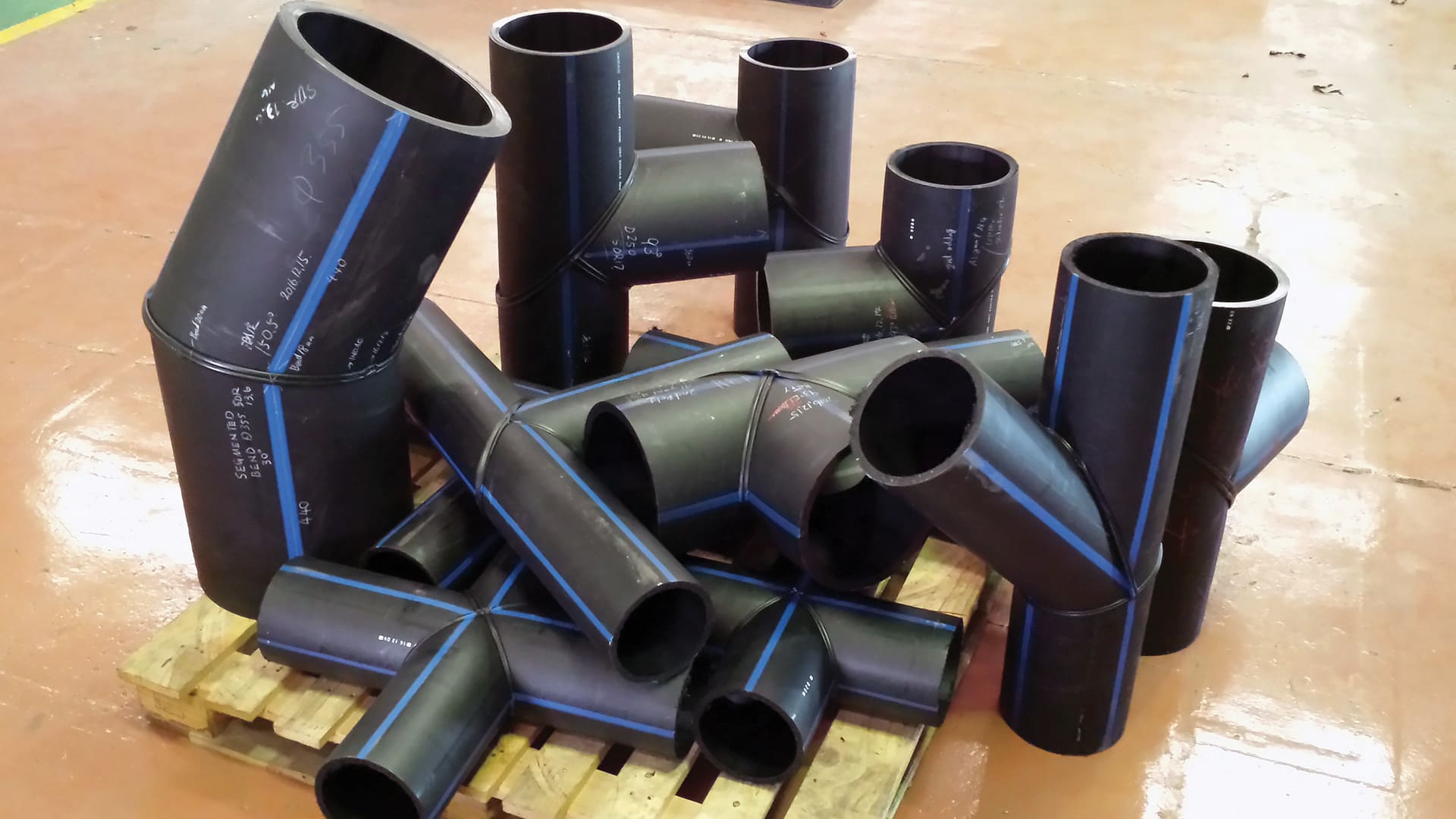

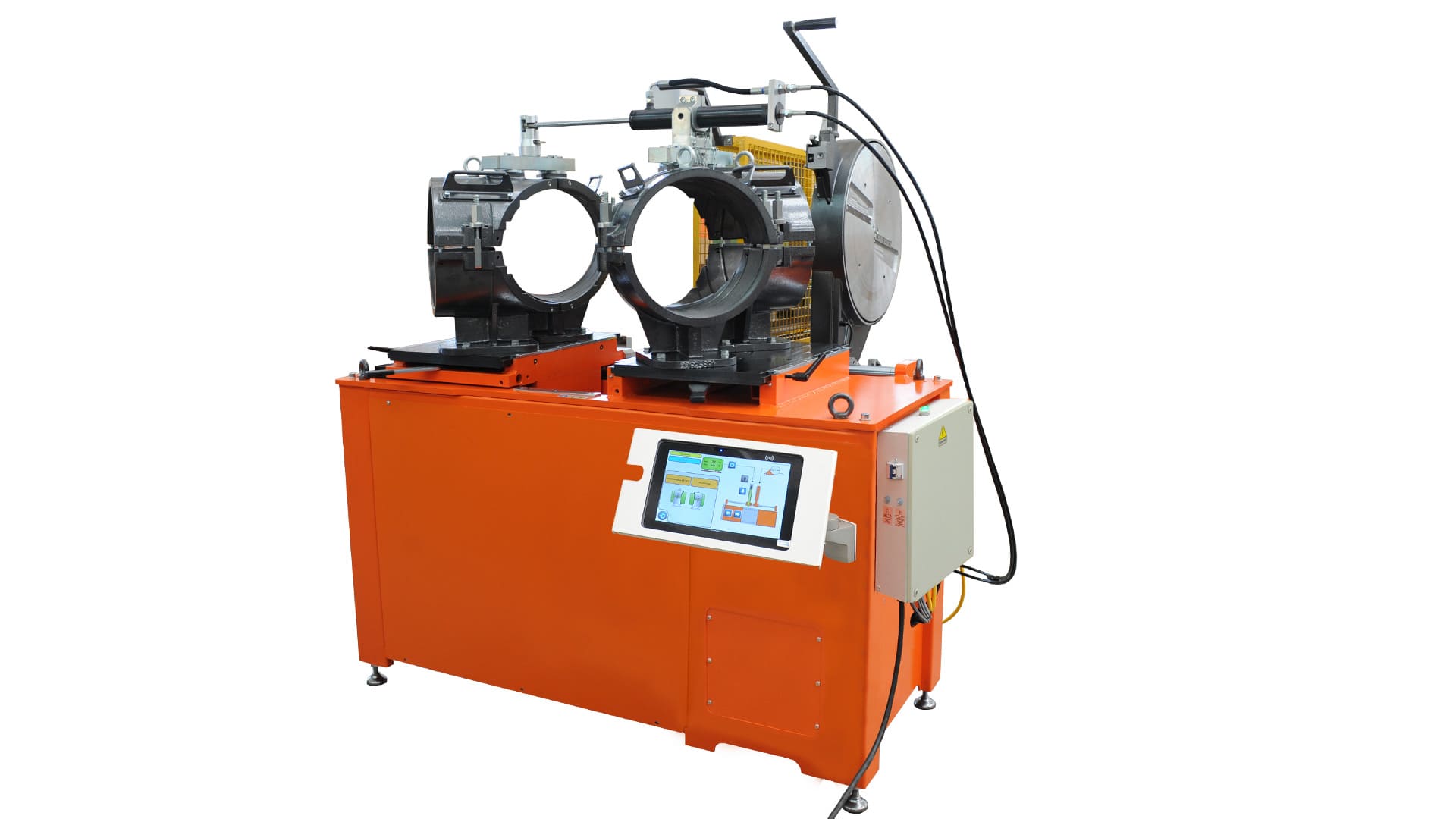

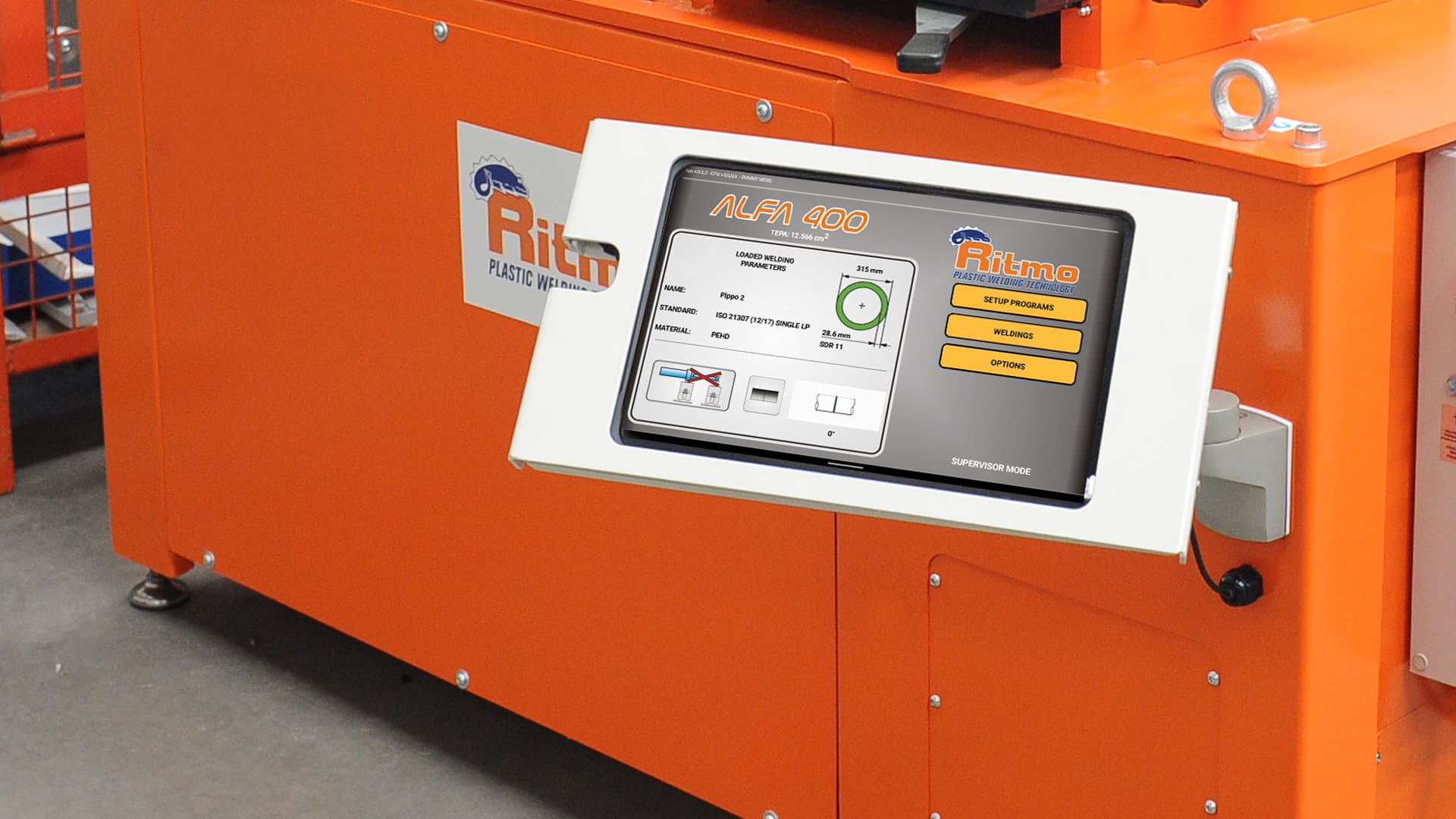

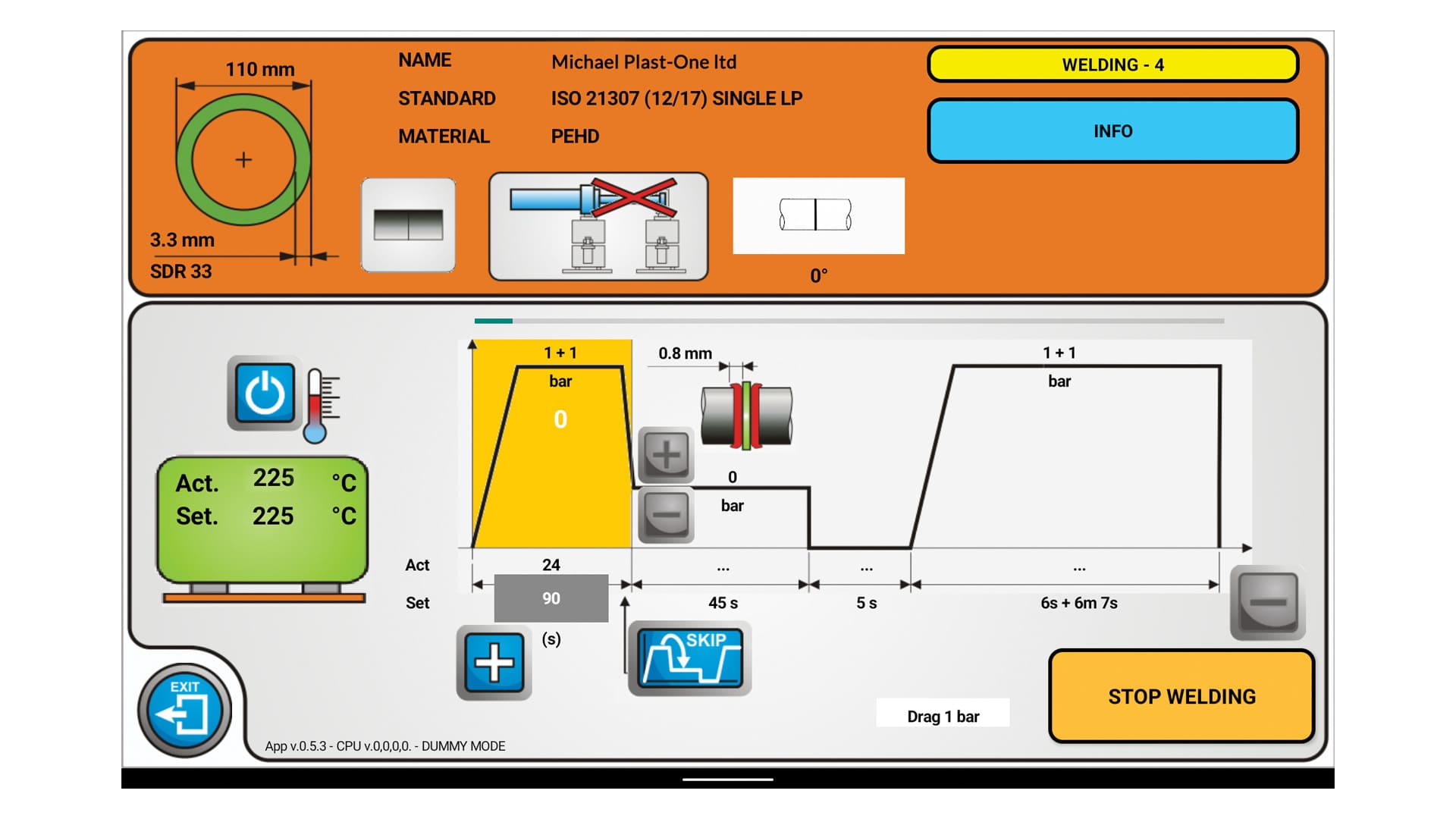

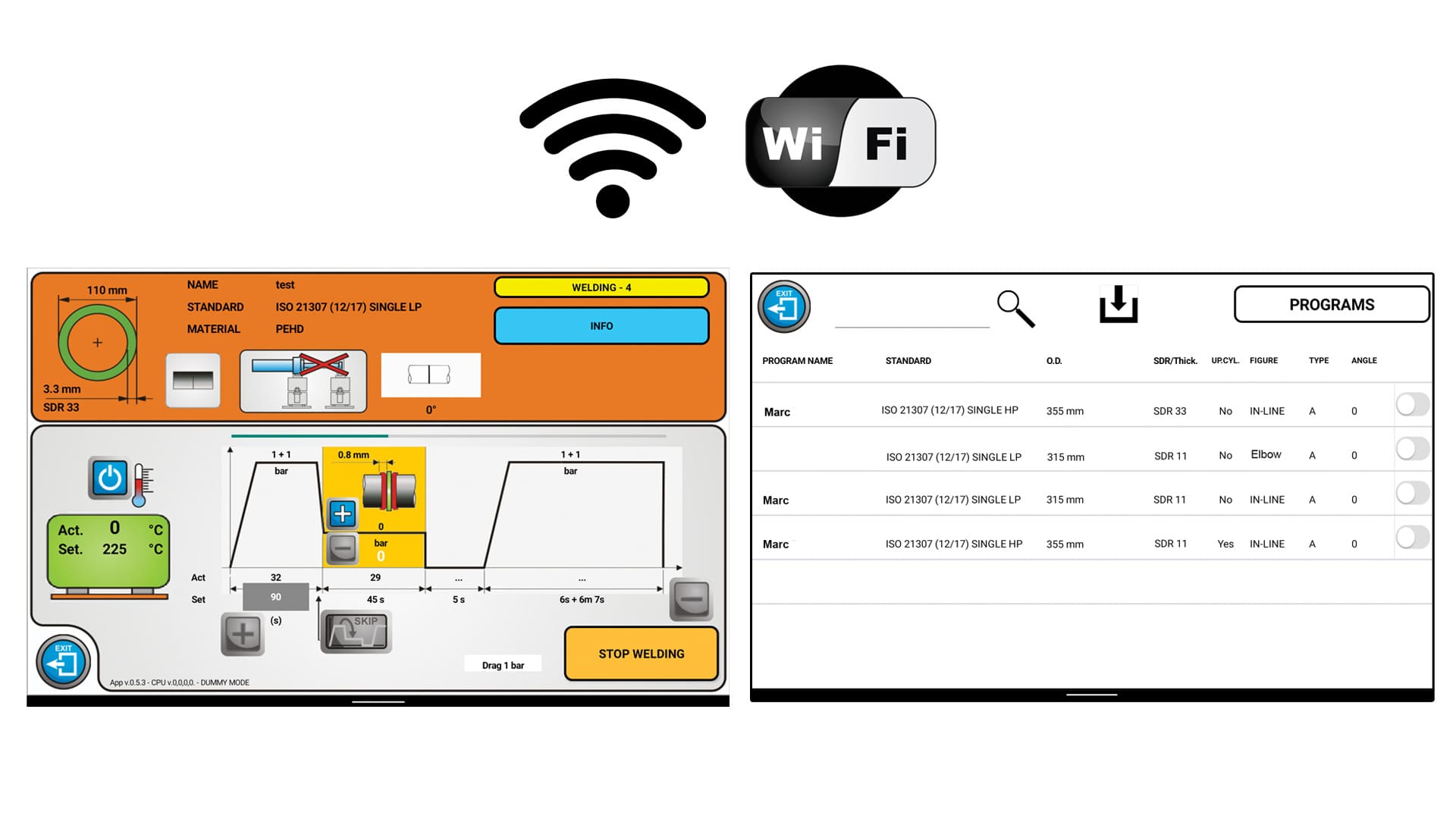

The Alfa 16 CNC TAB is not just an evolution of a CNC welder for creating quality fittings from pipe segments, but a new Premium concept where “Welding and Connection” now generate a new work experience. The new graphical interface of the ALFA 16 CNC TAB makes welding easier, while the “real-time connected” work cycle opens up new productivity scenarios for the customer. It complies with Industry 4.0 requirements.
TECHNOLOGY Fittings Fabrication
FEATURES
TECHNICAL SPECS

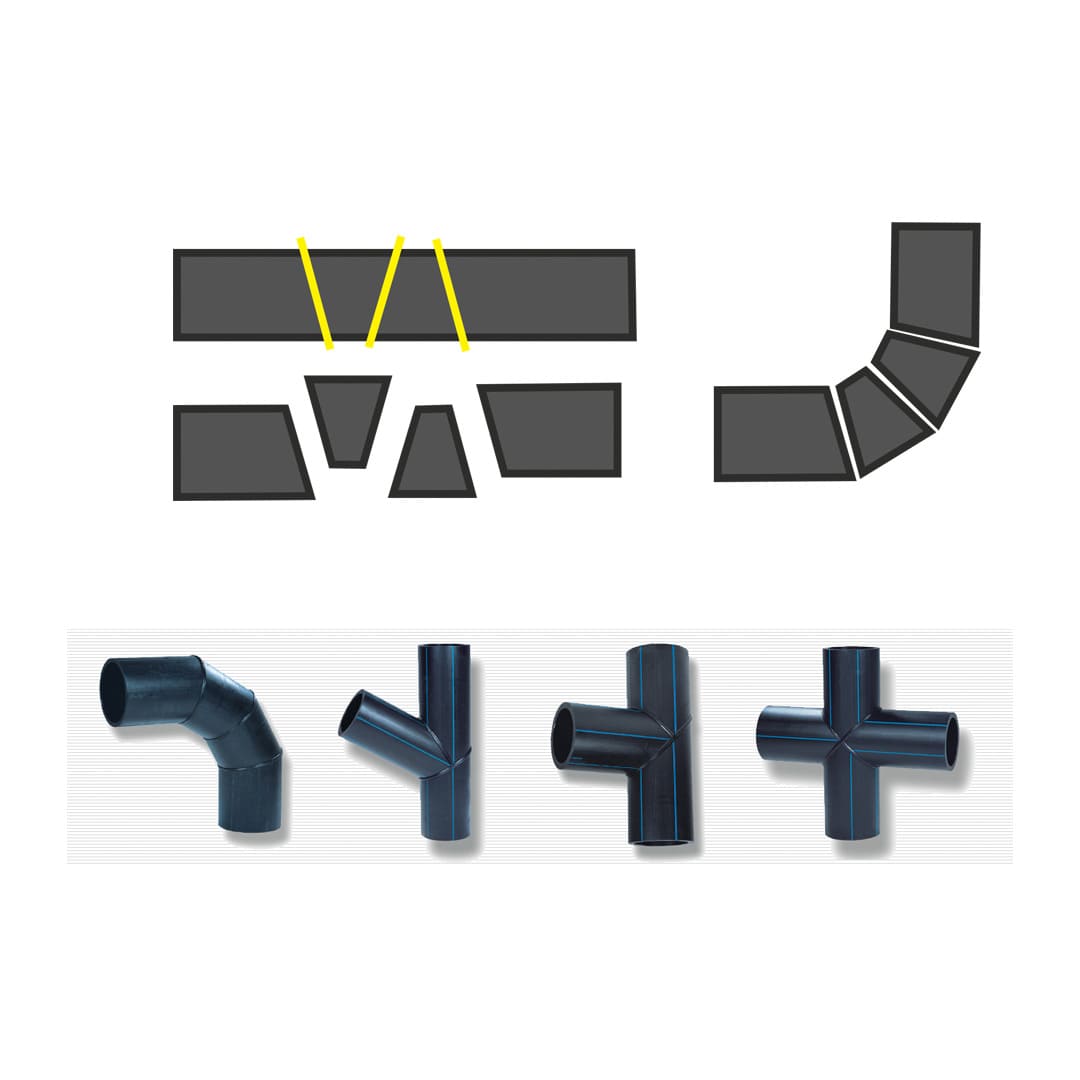

| Working range elbows 0° ÷ 60° | 4” ÷ 16 IPS 4” ÷ 14” DIPS |
| Working range wyes 45° ÷ 60° | 4” ÷ 12 IPS 4” ÷ 10” DIPS 45° ÷ 60° |
| Working range Tees | 4” ÷ 12 IPS 4” ÷ 10” DIPS |
| Working range crosses | 4” ÷ 12 IPS 4” ÷ 10” DIPS |
| Pressure range | 0 ÷ 150 bar |
| Welding system | CNC |
| Connection | USB Port Type A |

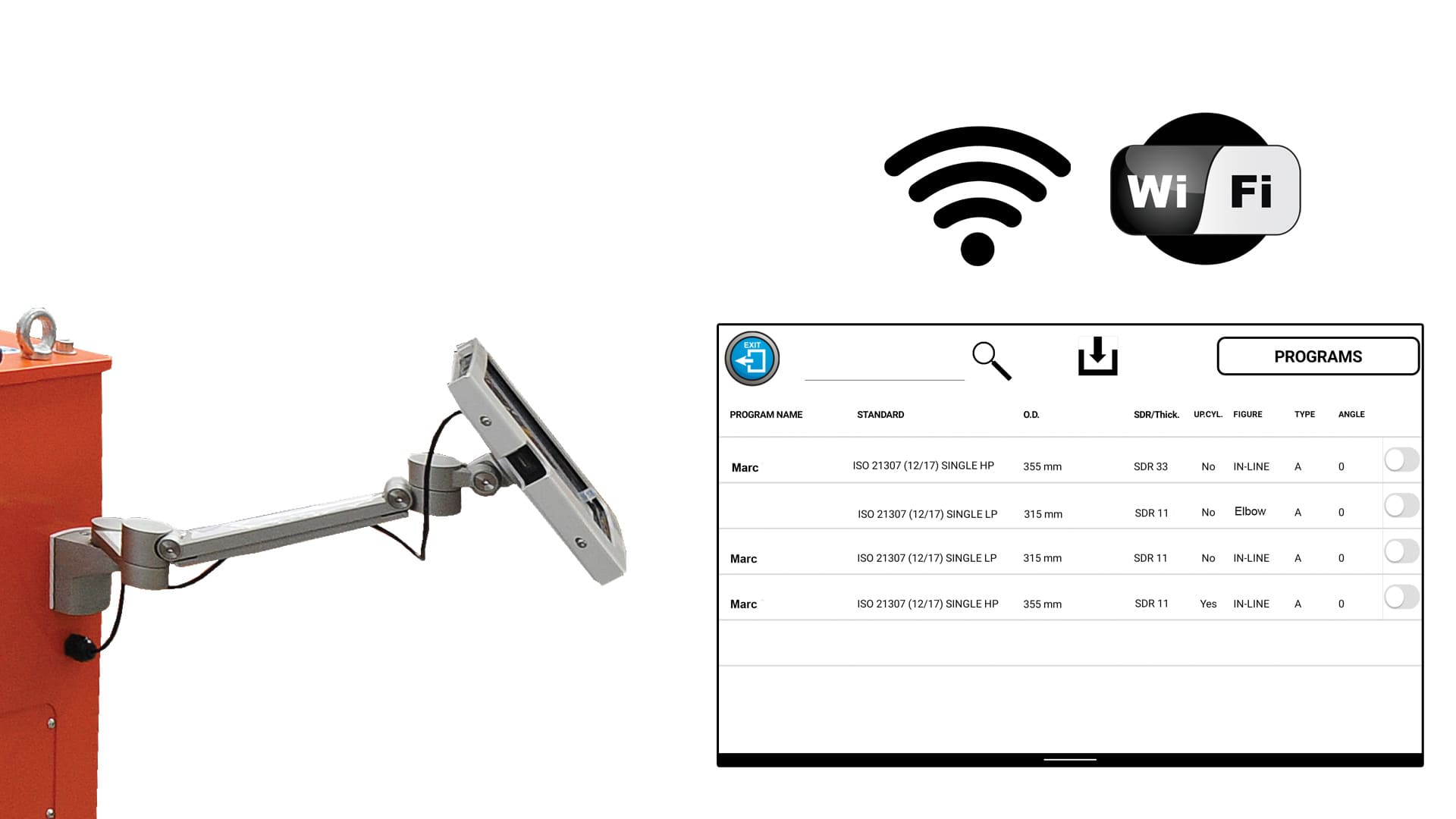

| Tablet | 10” |
| Wi-fi | Yes |
| Welding report | PDF - CSV |
| Memory | more than 16 gigabytes |
| Total absorbed power | 230 V Single Ph 400 V Three ph |
| Working temperature | 180° ÷ 280° C (356° ÷ 536° F) |
| Outside temperature range | -5° ÷ 40° C (23° ÷ 104° F) |
| Dimensions | 168 x 219 x 180 cm 55.1" x 71.9" x 59.1" |
| Weight | 647 Kg (1426 lb) |
STANDARD COMPOSITION
