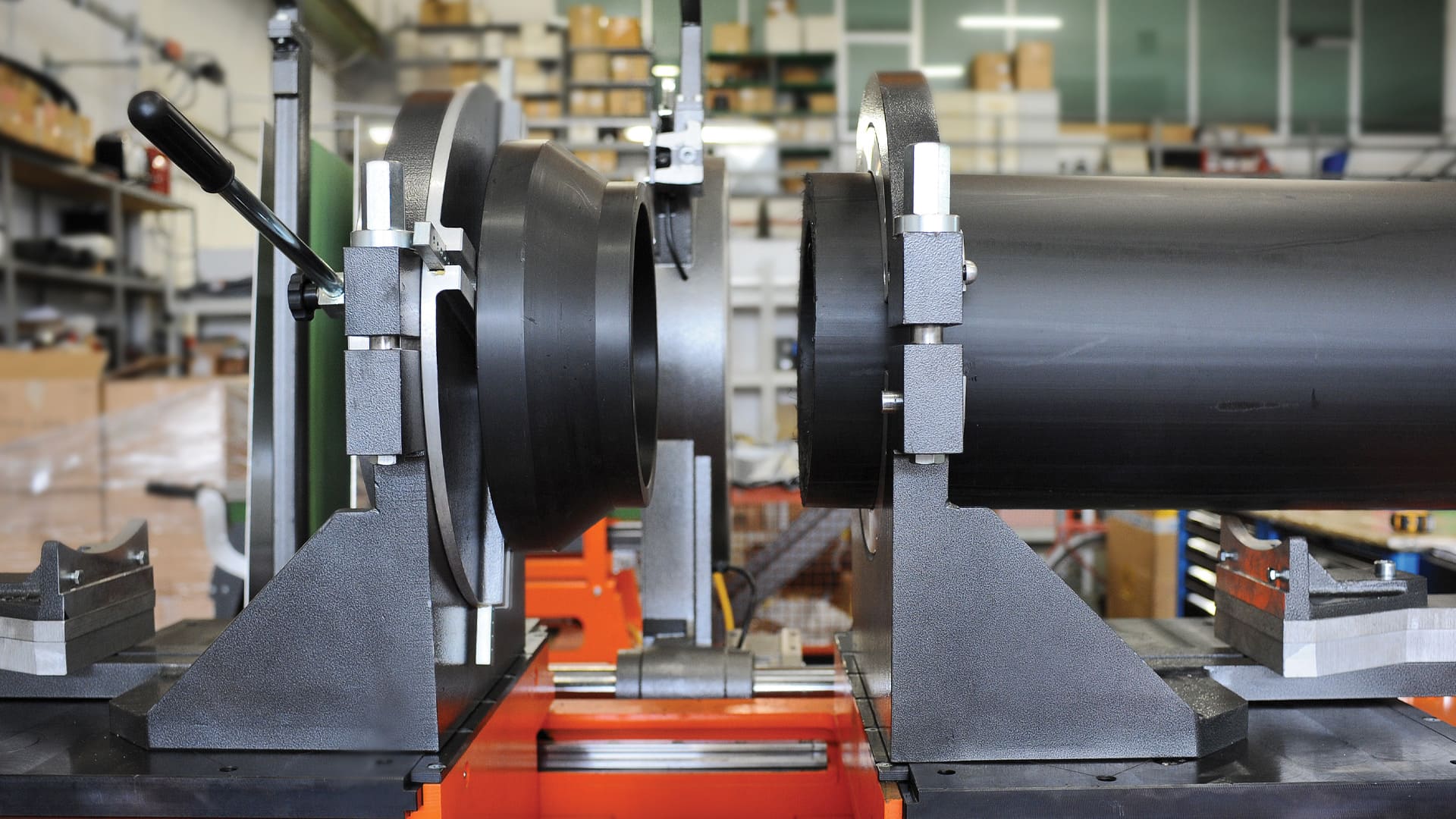

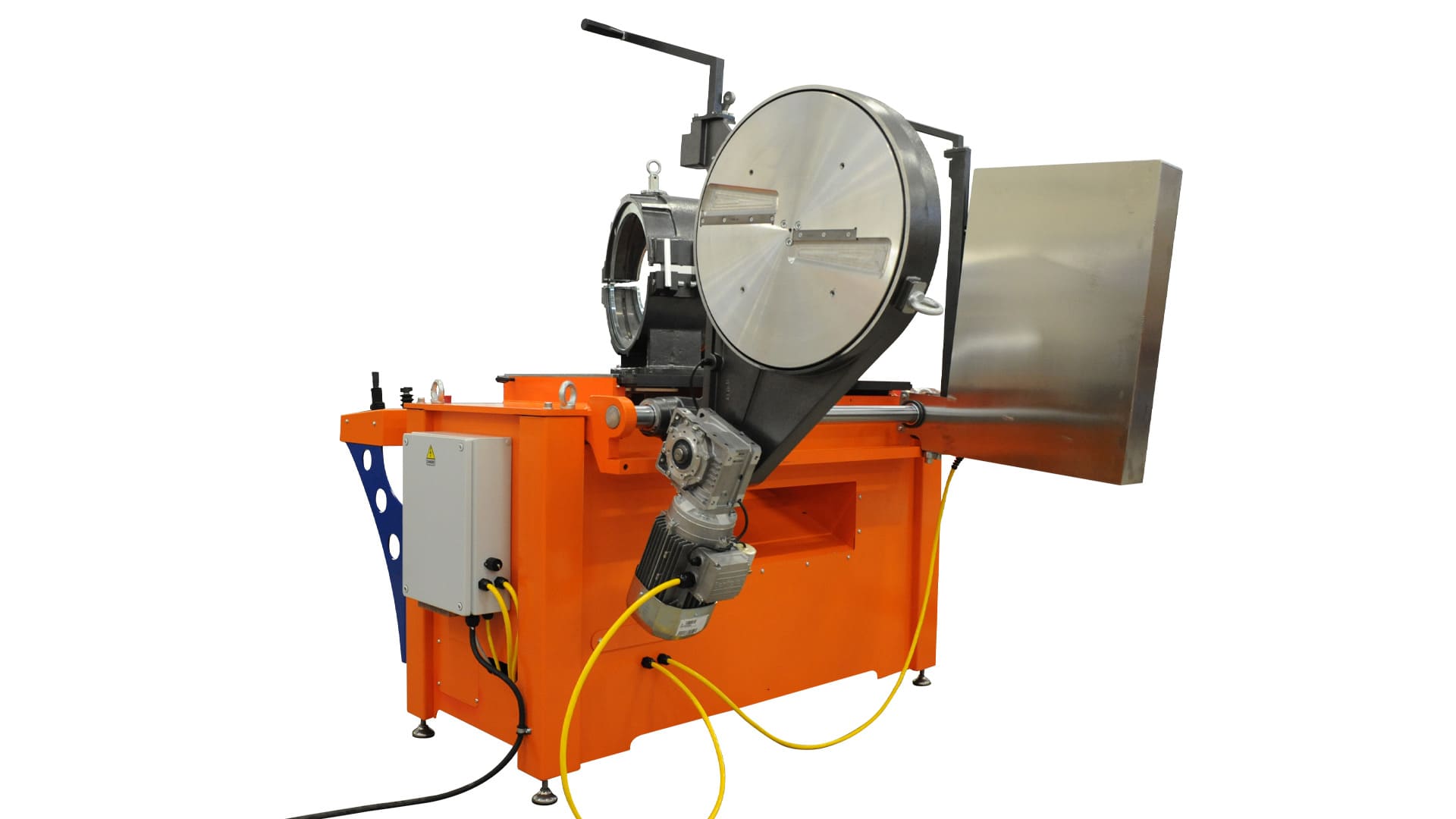

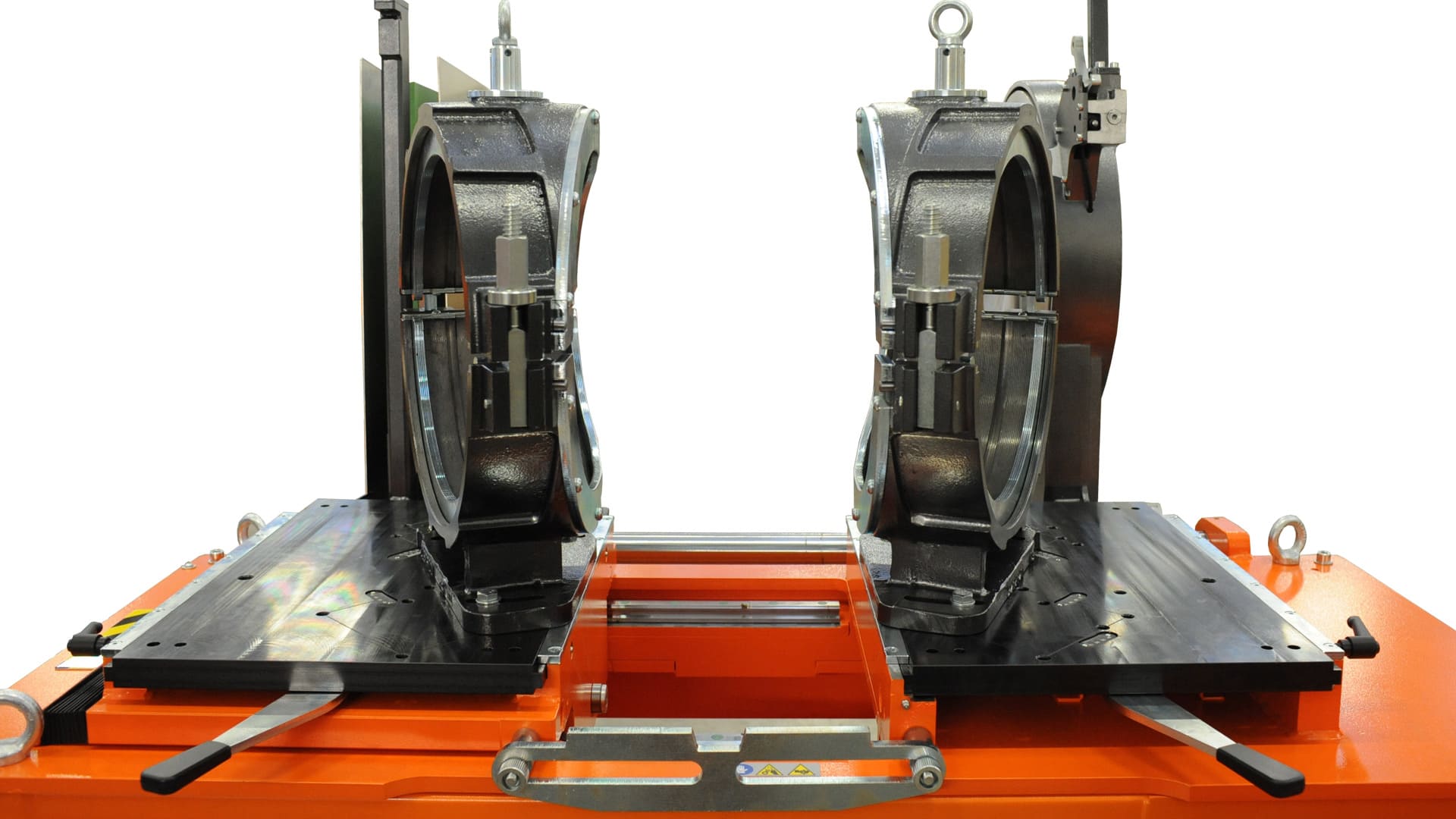

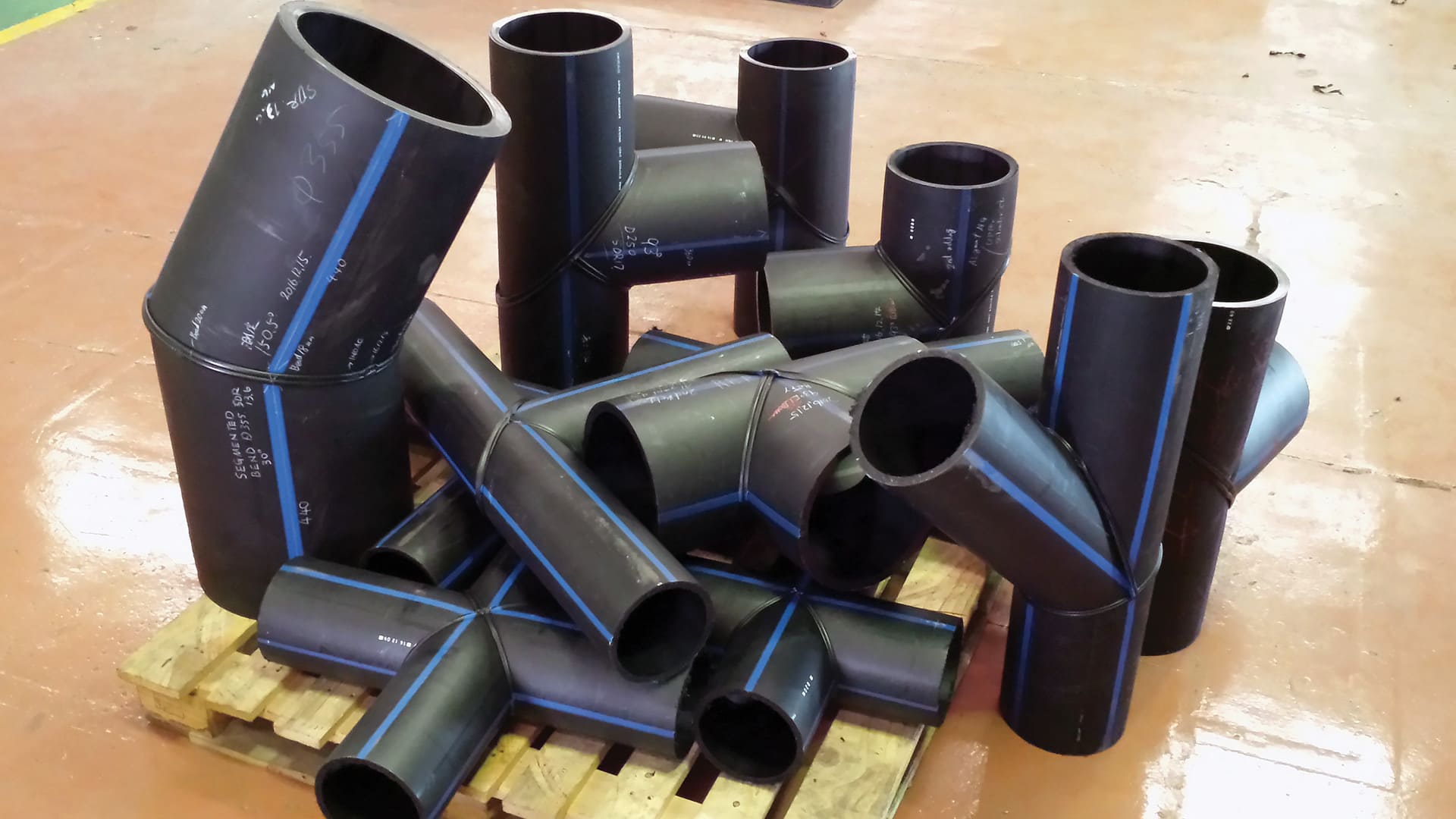

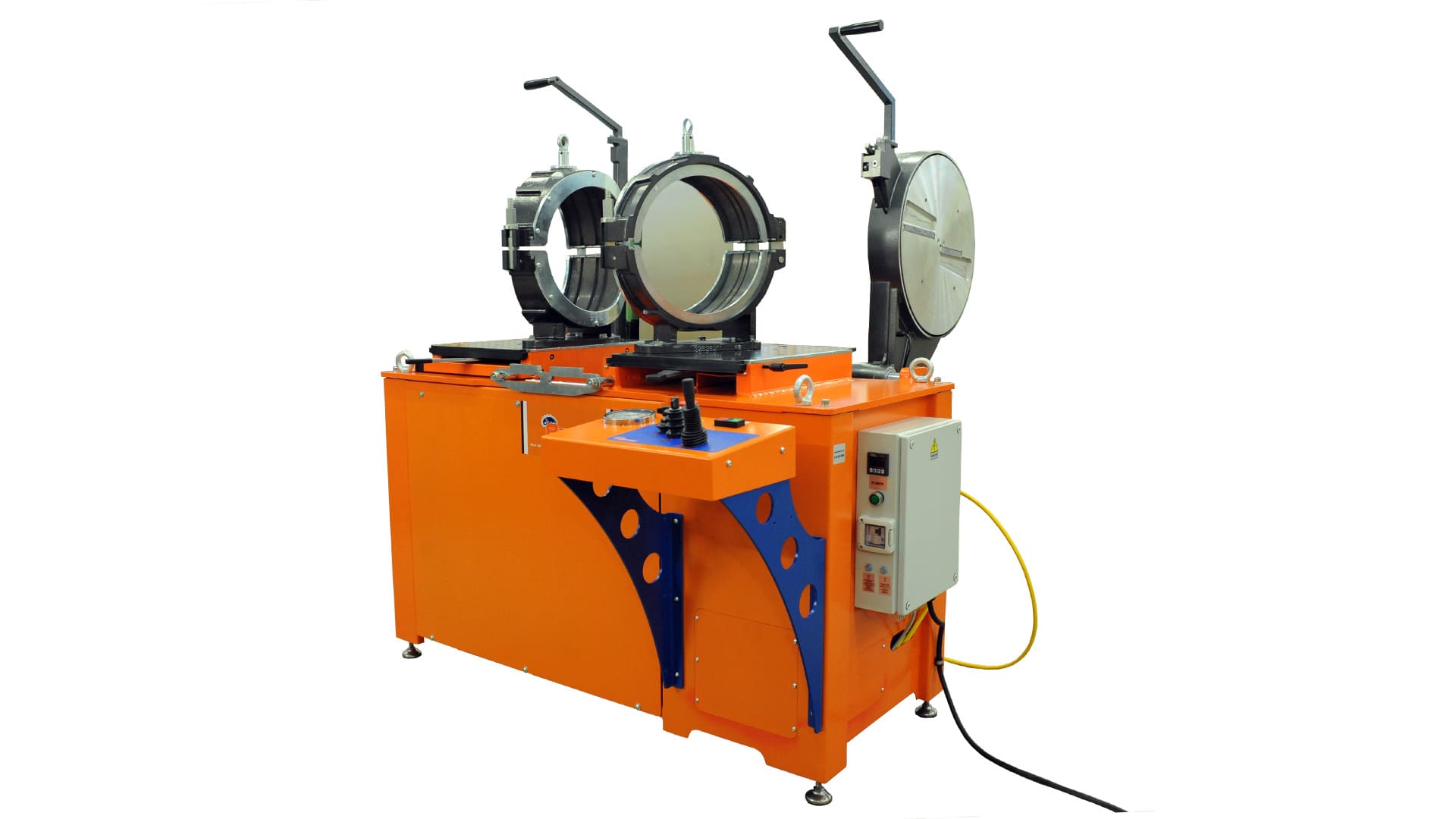

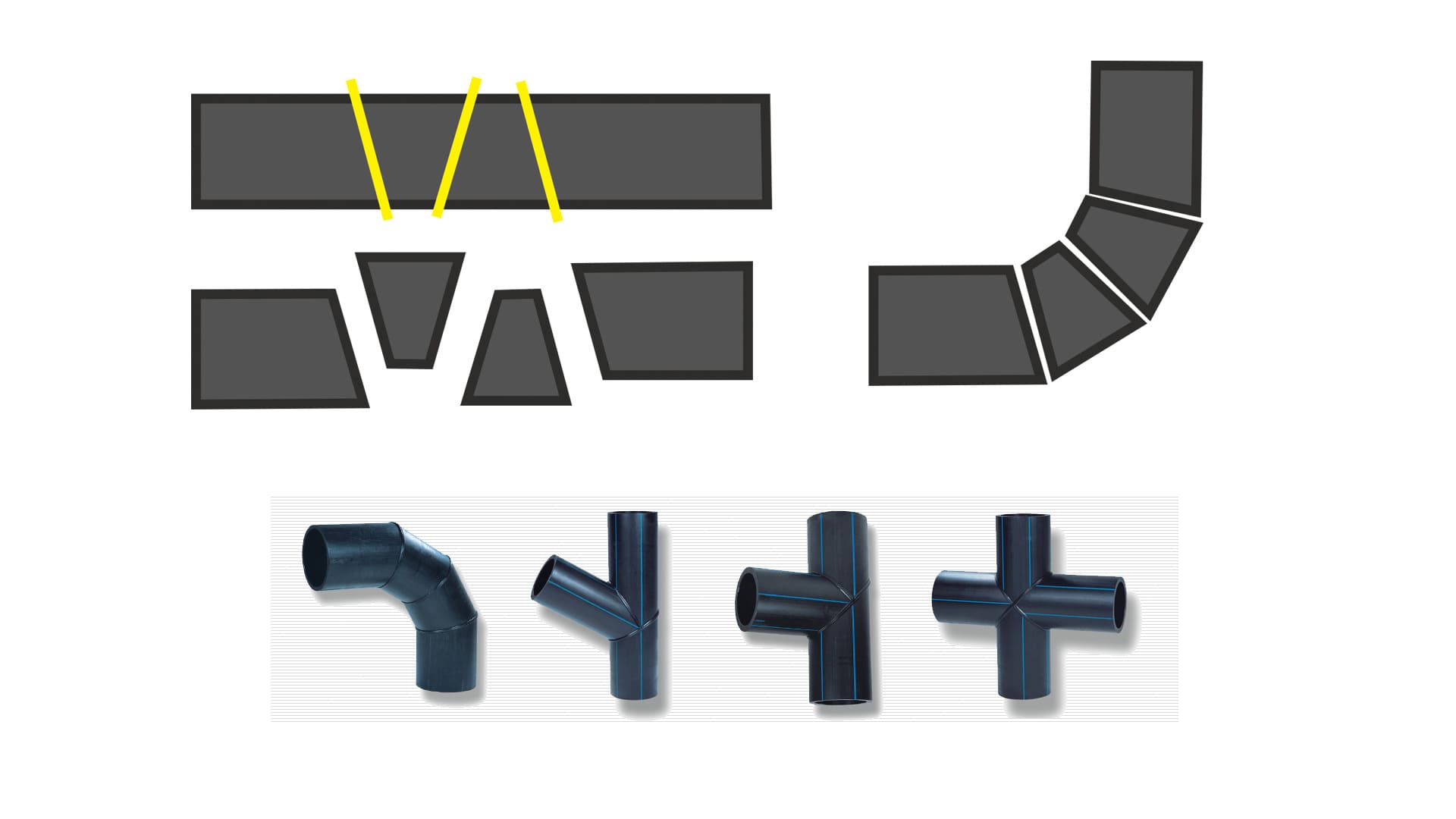

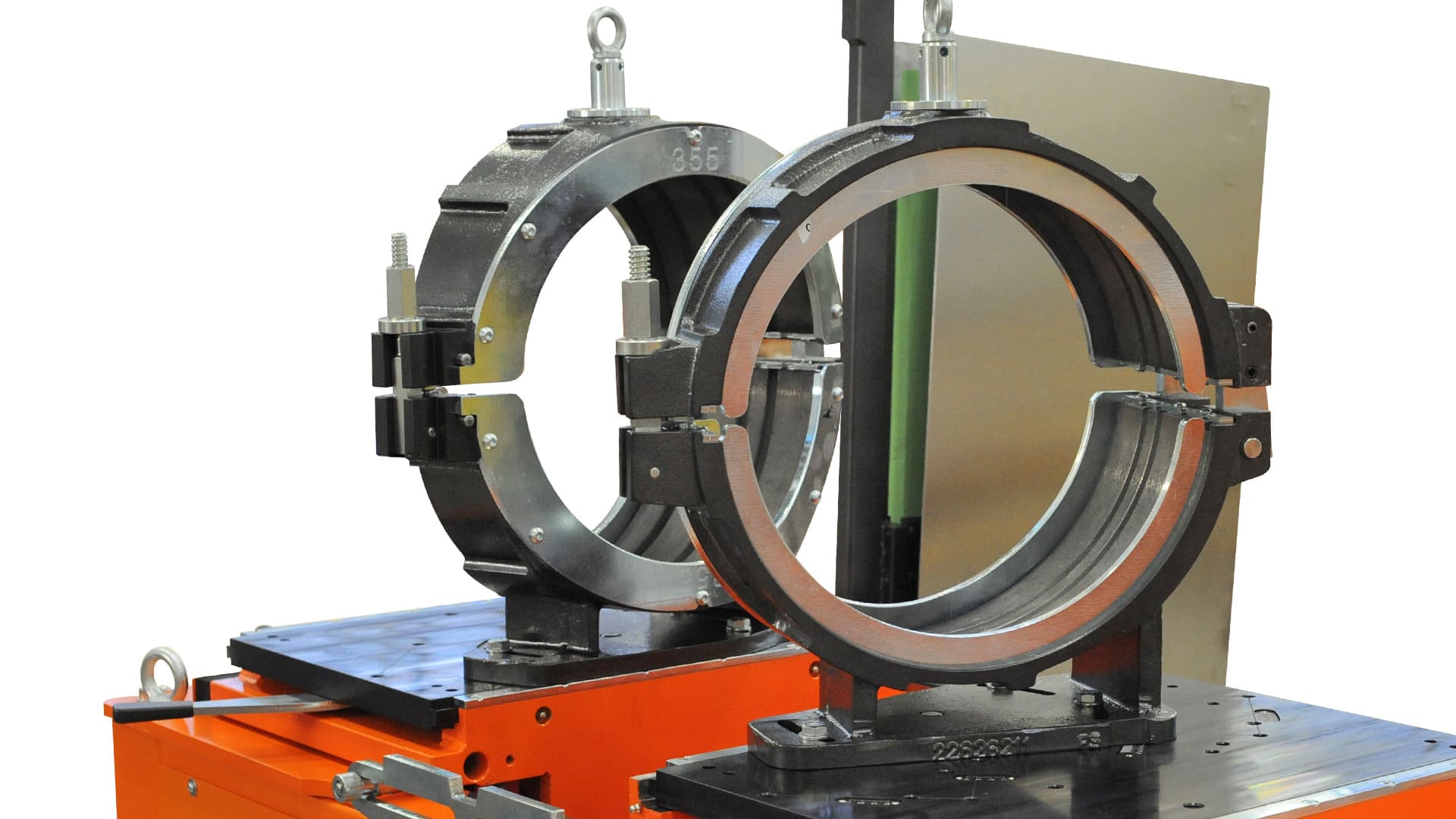

Manual welder for creating bends up to Ø 400 mm, branches, tees, or crosses up to Ø 315 mm. With its thin clamps, it is capable of welding fittings or molded bends. Simplicity and robust construction are key elements of this welder, now in its third generation.
TECHNOLOGY Fittings Fabrication
FEATURES
TECHNICAL SPECS
| Working range elbows 0° ÷ 60° | Ø 90 ÷ 400 mm; 4" ÷ 16" IPS; 4" ÷ 14" DIPS |
| Working range wyes 45° ÷ 60° | Ø 90 ÷ 315 mm; 4" ÷ 12" IPS; 4" ÷ 10" DIPS |
| Working range tees | Ø 90 ÷ 315 mm; 4" ÷ 12" IPS; 4" ÷ 10" DIPS |
| Working range crosses | Ø 90 ÷ 315 mm; 4" ÷ 12" IPS; 4" ÷ 10" DIPS |
| Pressure range | 0 ÷ 150 bar |
| Welding system | Manual |
| Power supply | 230 V Single Ph 400 V Three ph |
| Total absorbed power | 7400 W |
| Working temperature | 180° ÷ 280° C (356° ÷ 536° F) |
| Outside temperature range | -5° ÷ 40° C (23° ÷ 104° F) |
| Dimensions | 1490 x 2020 x 1700 mm 58.6" x 79.5" x 67" |
| Weight | 647 Kg (1426 lb) |
STANDARD COMPOSITION
