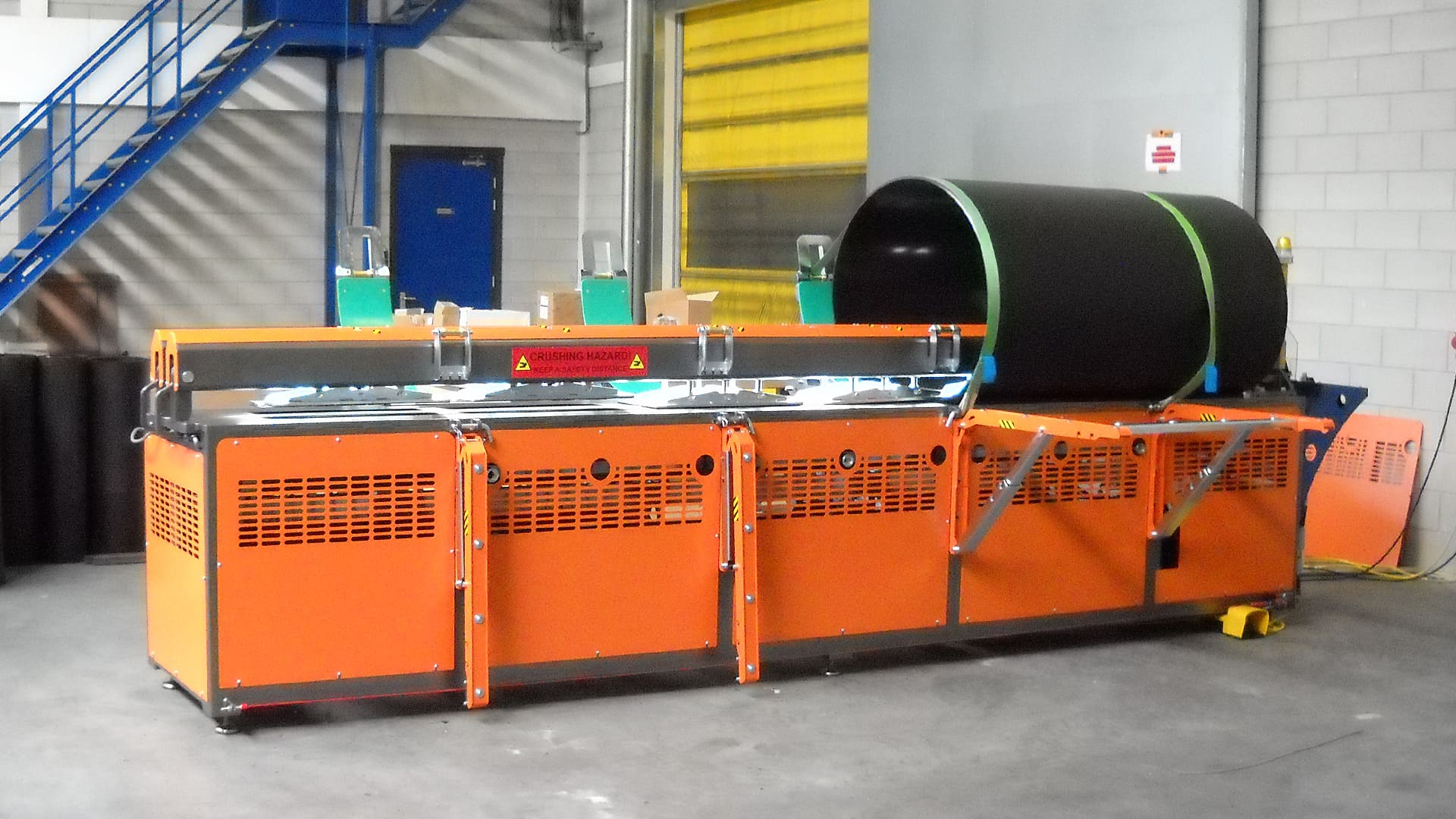

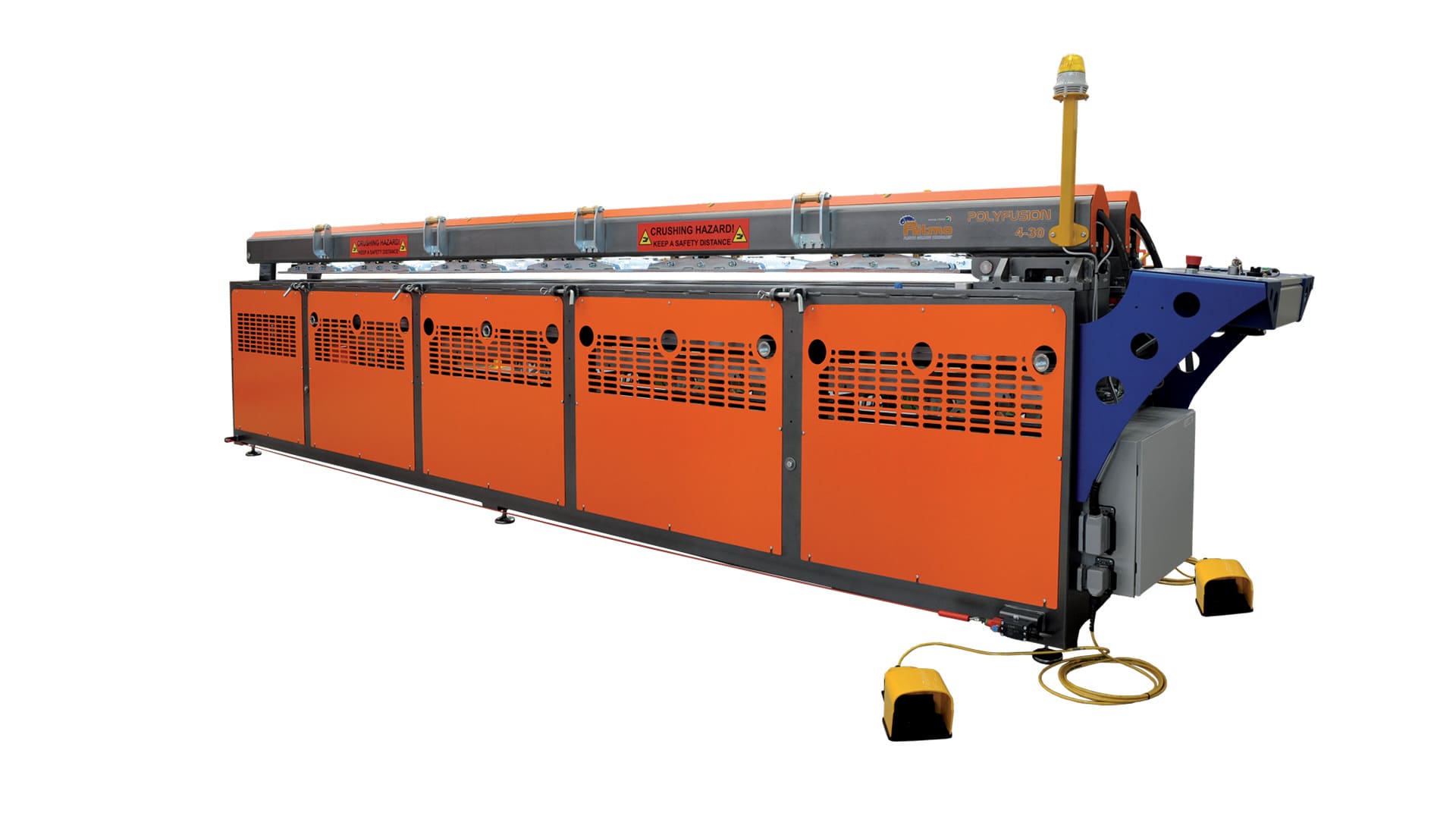

With the Polyfusion 4-30, you have all the power you need to join sheets up to 4 meters long and with a maximum thickness of 30 mm in HDPE, PP, and twin-wall sheets up to 30 mm. The work cycles are CNC and comply with the welding standards DVS 2207-1 and DVS 2207-11.
TECHNOLOGY S.Hydraulic
FEATURES
TECHNICAL SPECS
| Max. working width | 4 m - 13.12 ft |
| Weldable thickness | 3 mm -1/8" min; 30 mm - 1.2" max |
| Types of welding | straight; twin wall; 90° (kit on request) welding circular (kit on request min Ø 500 mm ) |
| Sheet locking clamps | hydraulic |
| Locking 90° sheets | pneumatic |
| Heating plate lift | automatic |
| Welding System | CNC |
| Report | |
| Memory | 4000 |
| Display | LCD |
| Power supply | 400 V Three Phase 50/60 Hz |
| Total absorbed power | 14500 W |
| Dimensions folded brackets | 5200 x 1260 x 840 mm 204,7” x 49.6” x 33” |
| Dimensions unfolded brackets | 5200 x 1260 x 1960 mm 204,7” x 49.6” x 77.2” |
STANDARD COMPOSITION
Would you like more information about this product?
Fill out the form: our technical team is available to offer assistance, insights, or personalized advice. We’ll help you find the solution that best suits your operational needs.
Il servizio di noleggio offre una soluzione rapida e flessibile per affrontare picchi di lavoro, cantieri imprevisti o esigenze temporanee. Le attrezzature sono sempre aggiornate, sottoposte a controlli accurati e pronte all’uso. È possibile richiedere il ritiro in sede o la consegna direttamente in cantiere, con assistenza tecnica garantita.
Butt fusion manual welding
An effective pipe joining method where the operator’s experience is essential for proper execution.
QUALITY IN WELDING
Through the use of high-quality materials and rigorous controls, Ritmo can guarantee long-lasting welds that stand the test of time.
High-productivity welding machines designed to ensure maximum autonomy. Equipped with an onboard generator and tracked drive. They operate in compliance with international standards ISO 21307 High Pressure and ASTM F2620, guaranteeing safe welds and significant time savings
For manual welding models, an innovative data logging system is available with cloud-based storage and analysis. With a capacity of up to 4,000 welding cycles, data is easily accessible. Reports can be exported via USB and saved in PDF format, ready for sharing.
Fill out the form: our technical team is available to offer support, insights, or personalized advice. We will help you find the solution that best suits your operational needs.
The ELEKTRA line speaks your language, featuring welding machines with a multilingual panel that is easy and intuitive to use. A simple system: prepare the pipe, point, read, and start welding. A straightforward action made possible by the automatic acquisition of welding parameters via barcode and scanner (ISO 13950: 2017).
The capabilities of pneumatic welders allow for fast and precise exchange phases.
Just a few simple actions on the PLC control panel are enough to quickly program the work cycle and achieve a CNC welding cycle that is always repeatable and error-free.The introduction of the Ritmo “AirPlus” system allows for the completion of a cycle even in the event of a failure in the plant’s pneumatic system.
The exhaust pipe welders automatically recognize the connection and adjust the welding cycle based on the outside temperature. Furthermore, a self-diagnosis system alerts the operator to any errors.
All the simplicity of the hydraulic system at your disposal for perfect welds with sheets up to 4 meters.

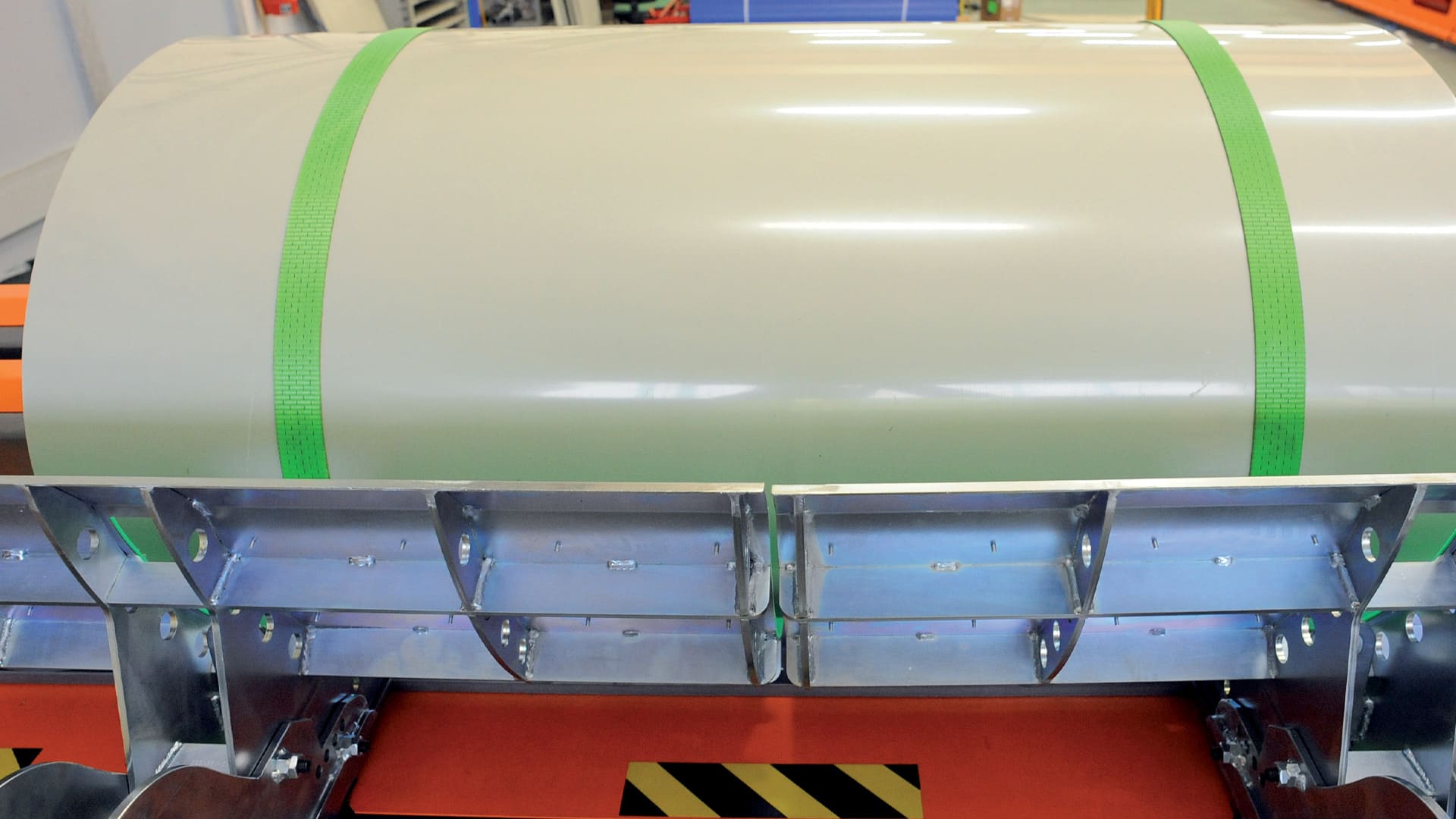

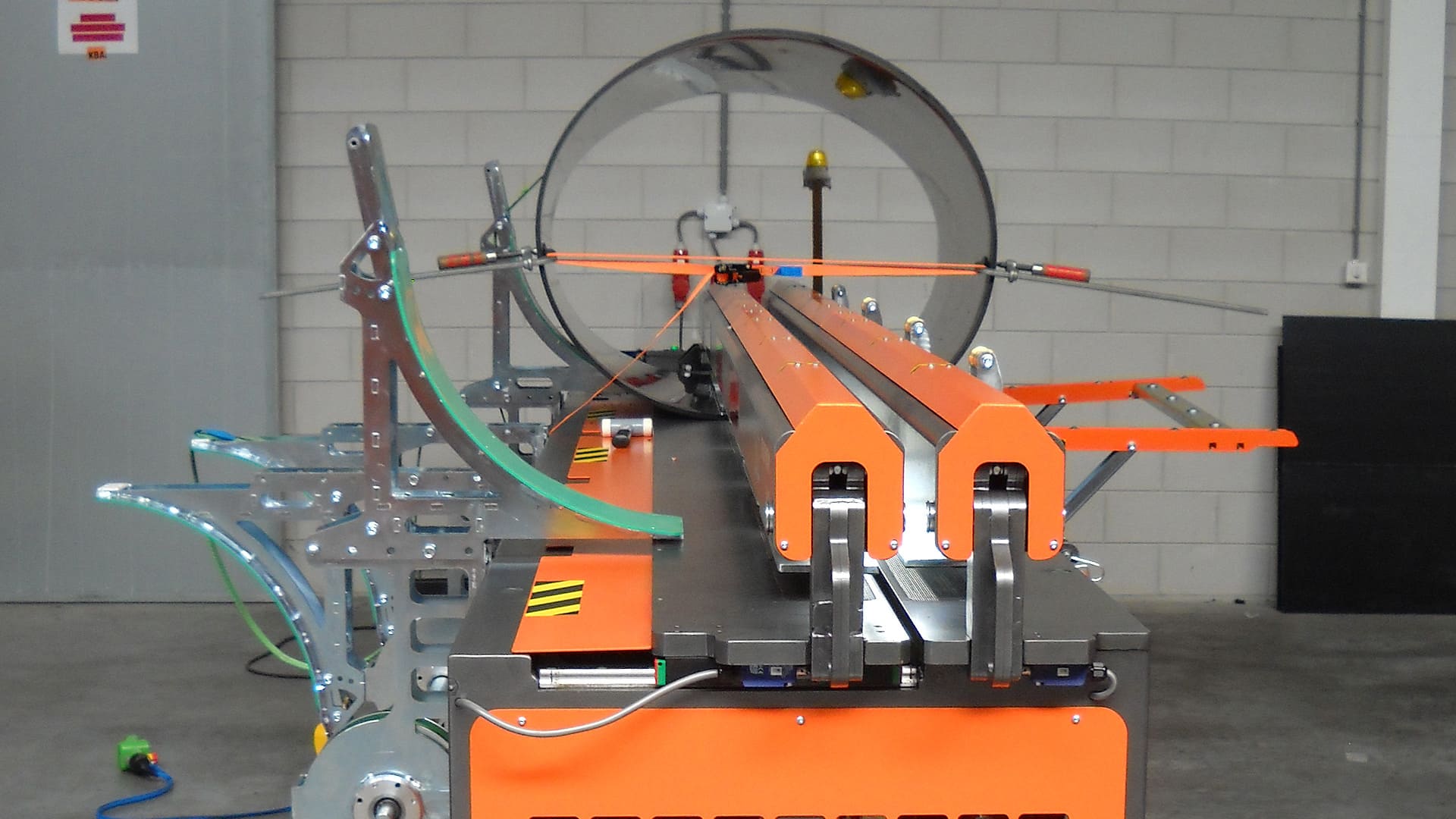

It doesn’t matter what position you need to place the sheet — horizontal, vertical, or circular — Polyfusion has all the power to perform the task effectively. Everything is easy, thanks to the reliability of the CNC welding system, where the operator automatically programs the work cycle, eliminating the risk of error. For those who enjoy the tactile experience, compact models for sheets up to 2 meters are available, allowing the operator to manage the welding manually.
