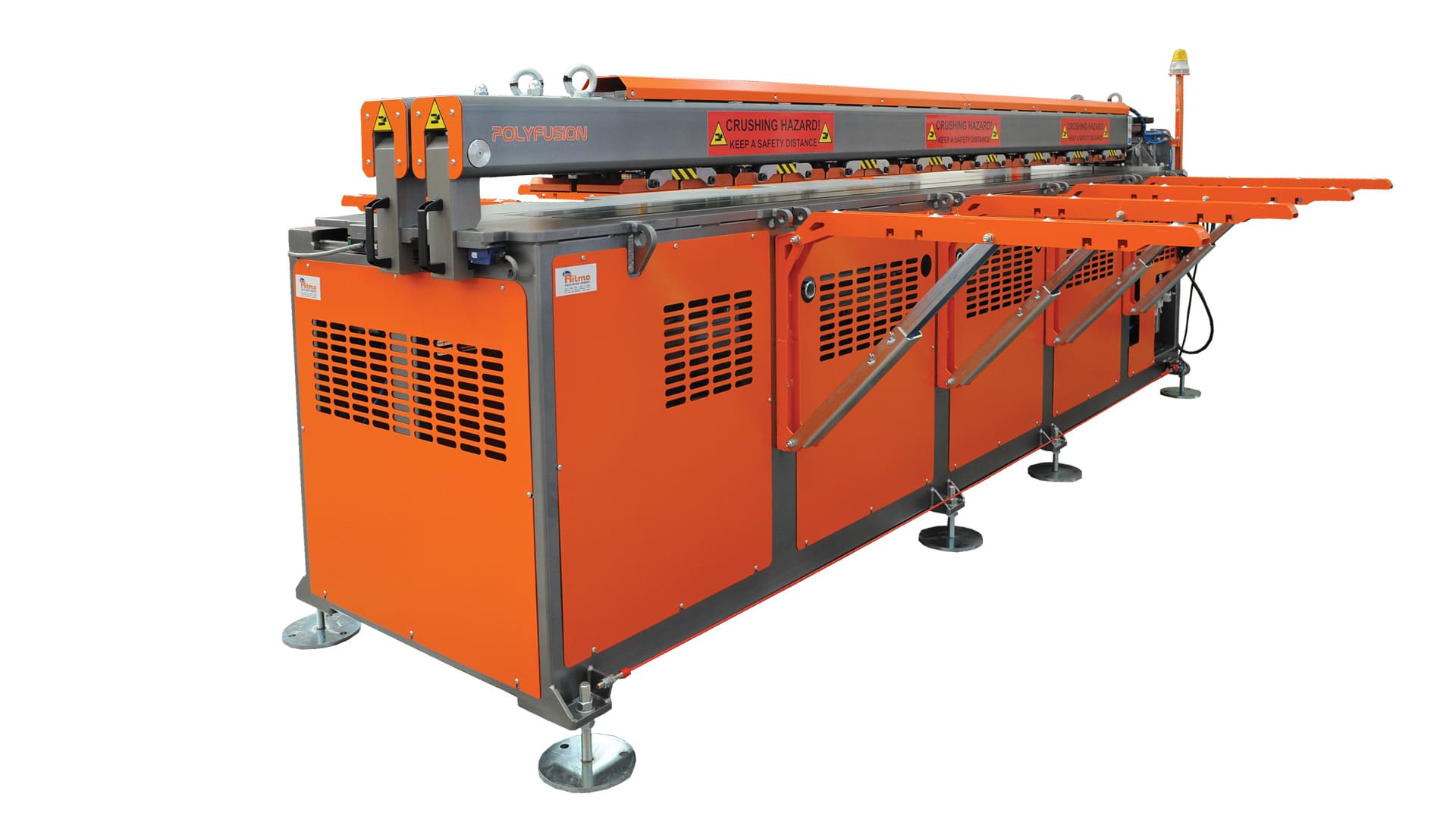

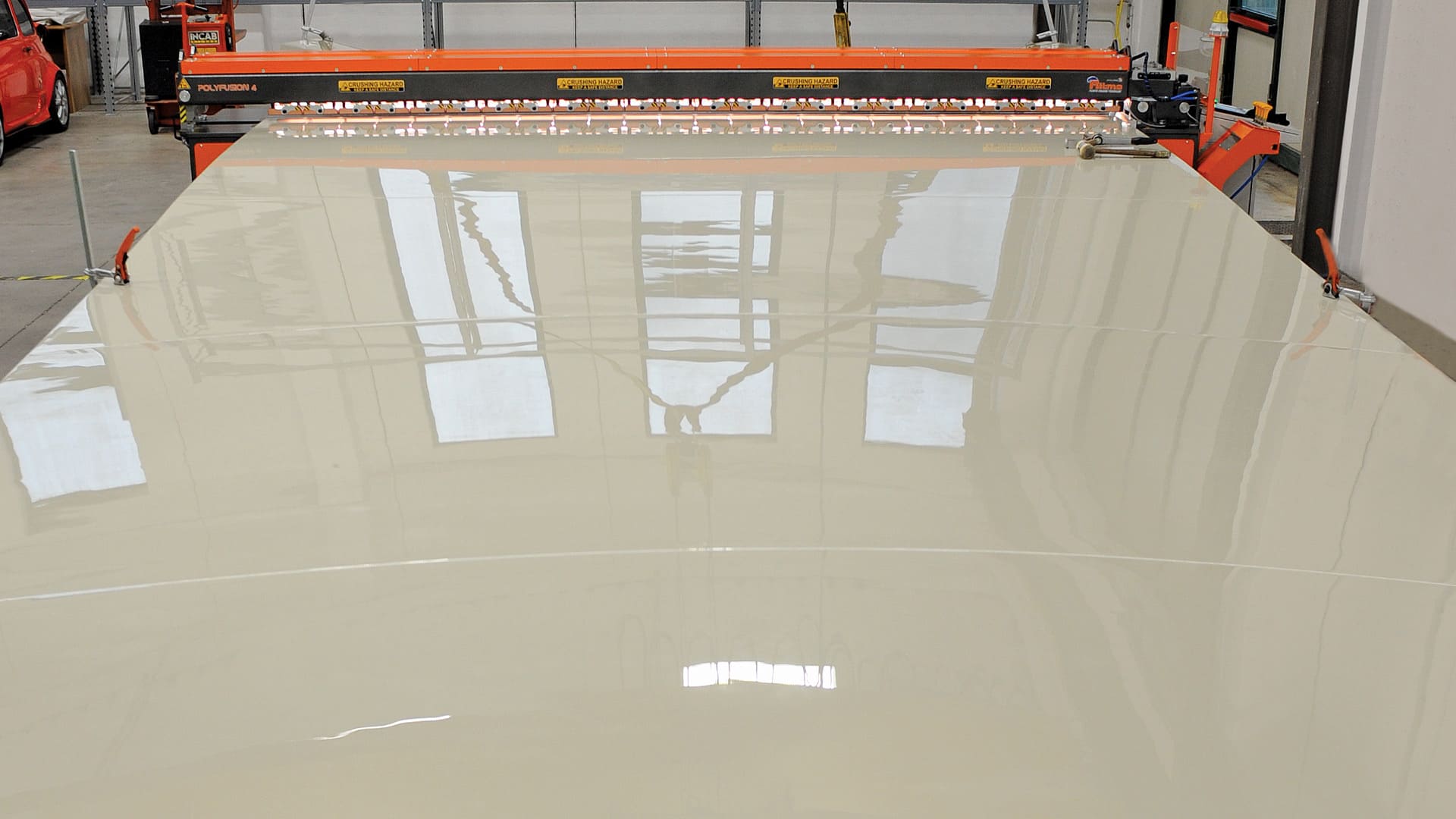

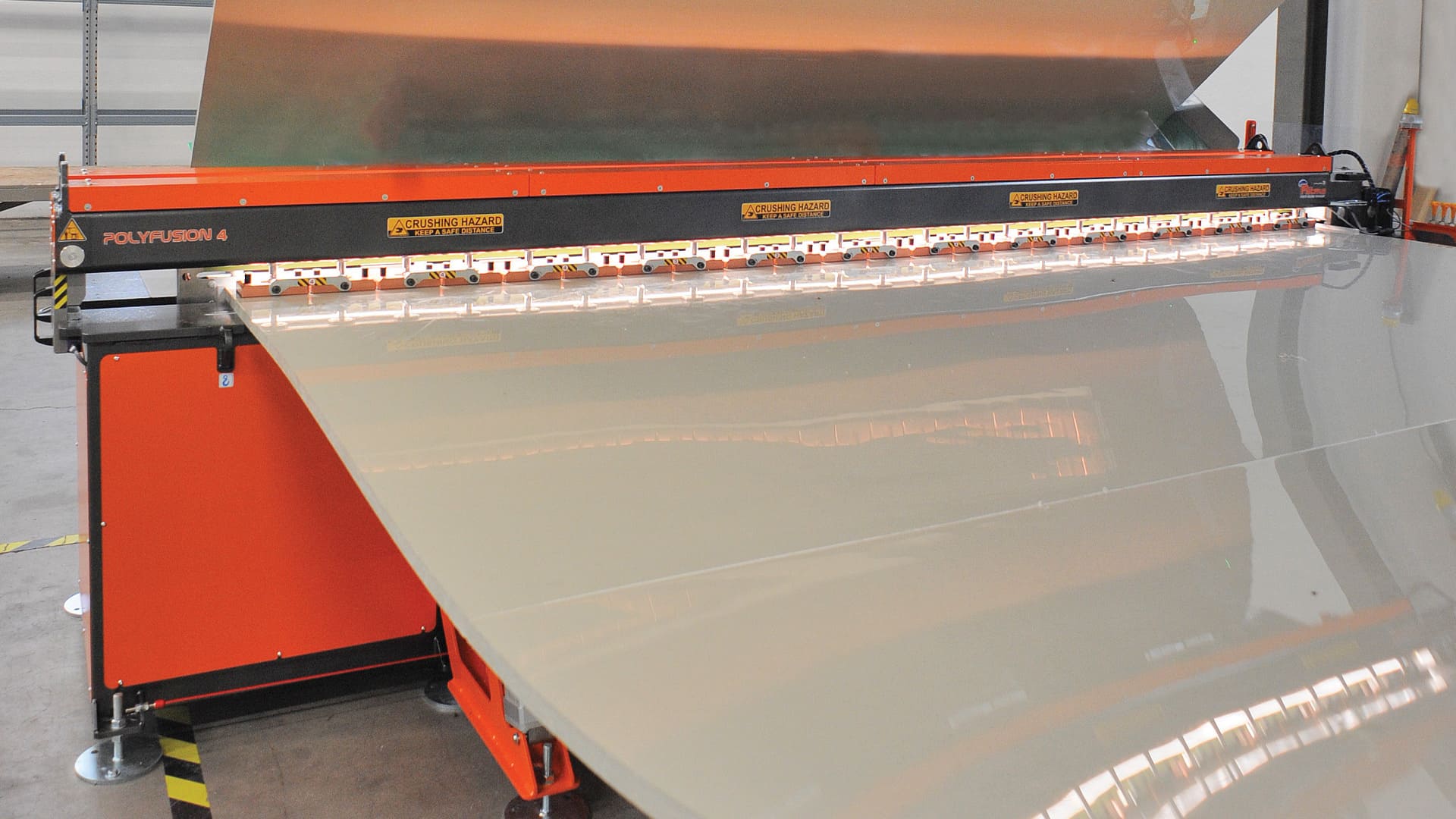

A concentrate of technology for high performance: this is the Polyfusion 4. With this welding machine, you have all the power you need to join sheets up to 4 meters long and with a thickness of up to 50 mm in HDPE, PP, PVC, and PVDF, as well as twin-wall up to 60 mm. The pneumatic system, the technical solutions implemented, the ease of the CNC welding cycle, and the wide range of accessories available upon request to expand functionality will provide you with numerous advantages and help you stand out in your work.
TECHNOLOGY S.Pneumatic
FEATURES
TECHNICAL SPECS
| Max. working width | 4050 mm |
| Min. weldable thickness | 3 mm |

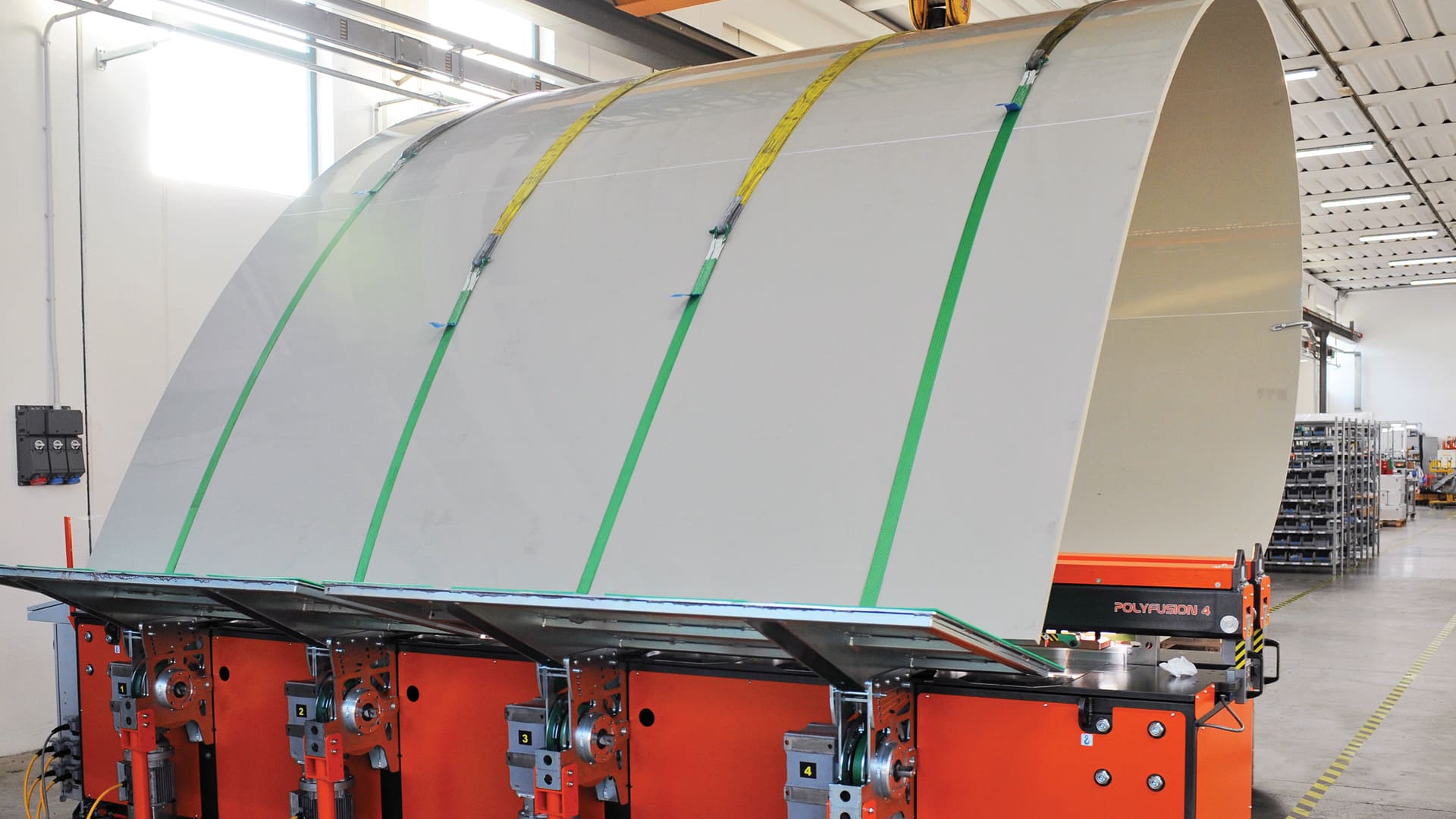

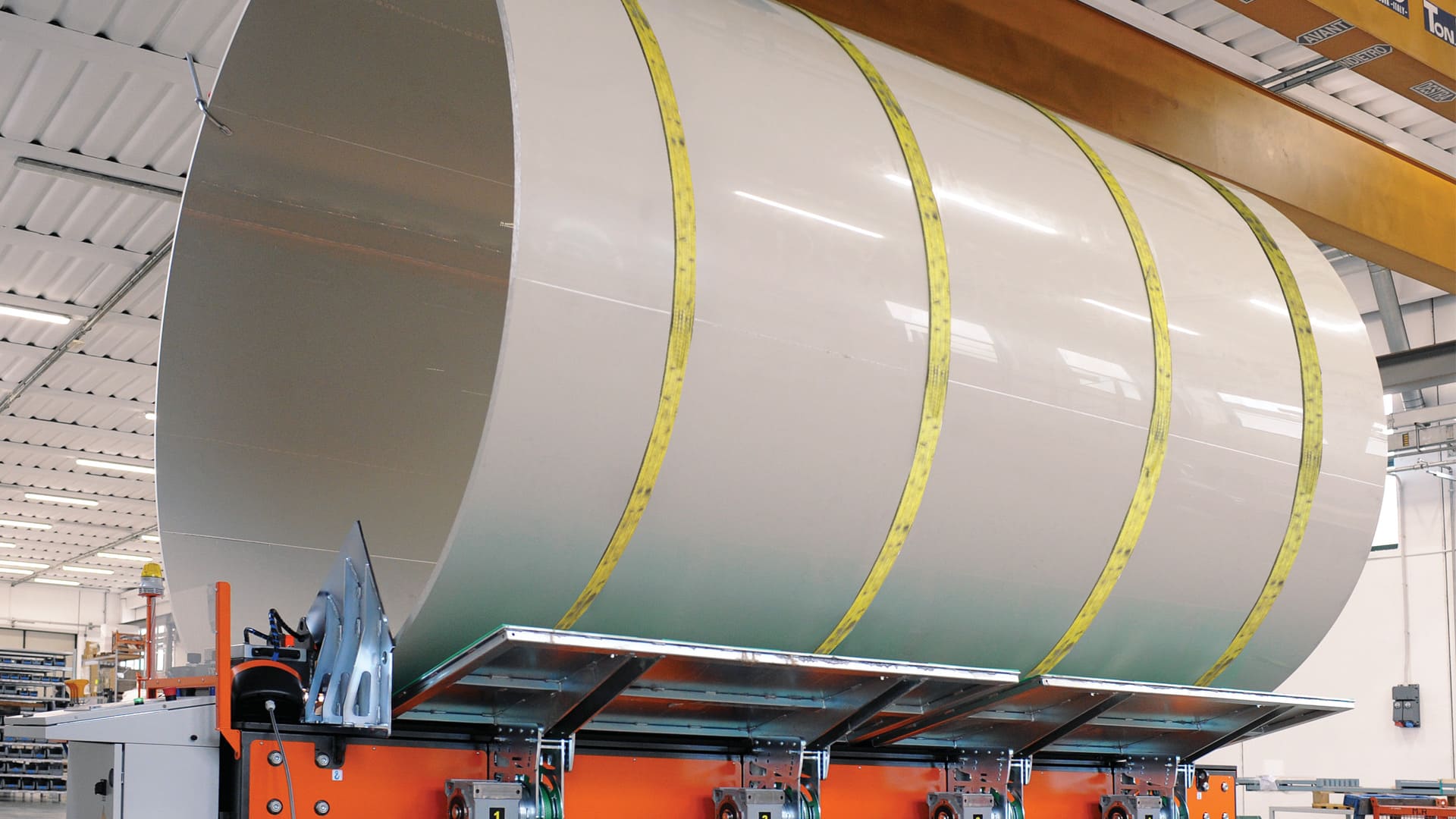

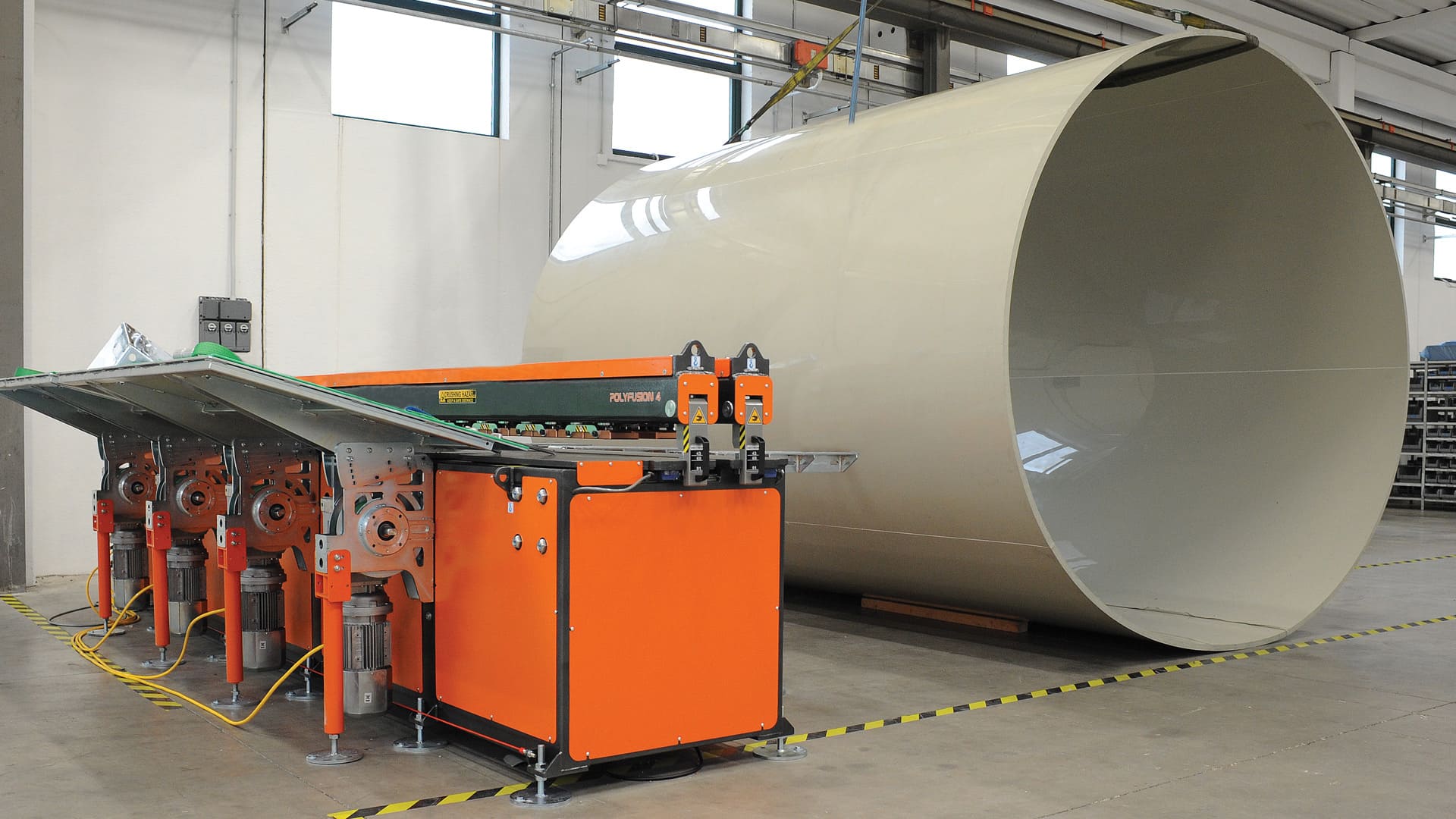

| Types of welding | straight; twin wall up to 60 mm; 90° ( kit on request); welding circular (kit on request min Ø 500 mm) |

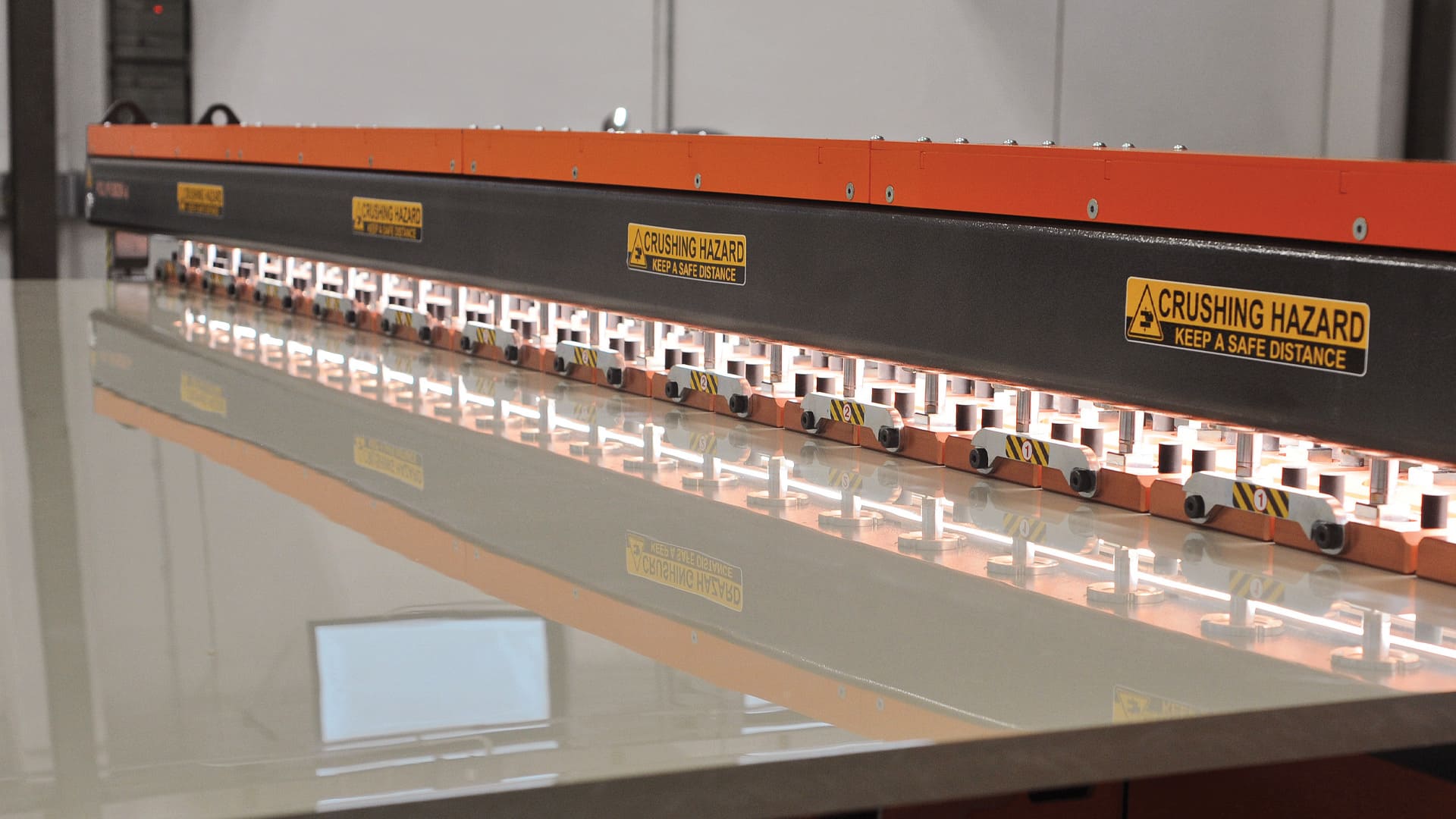

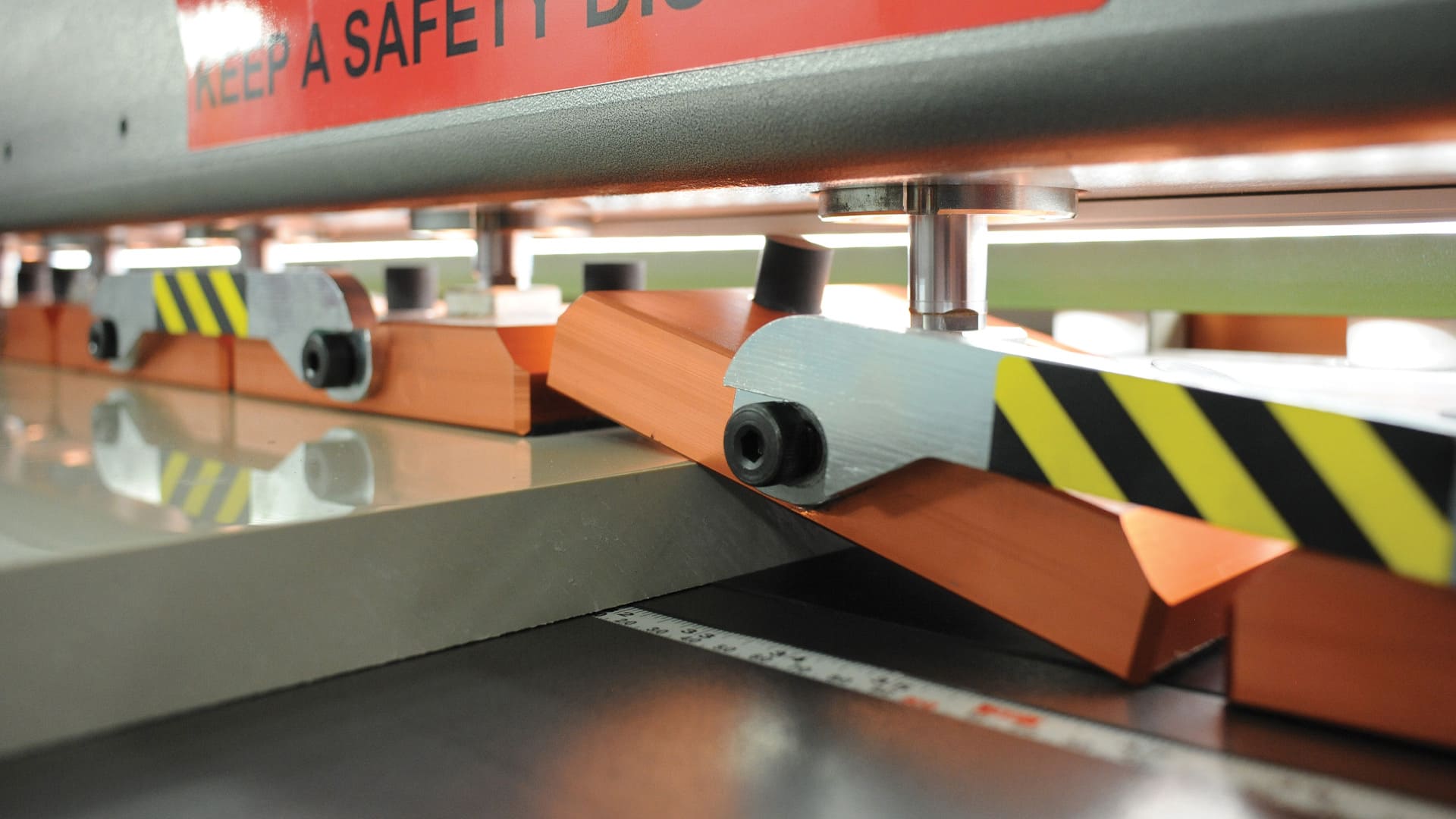

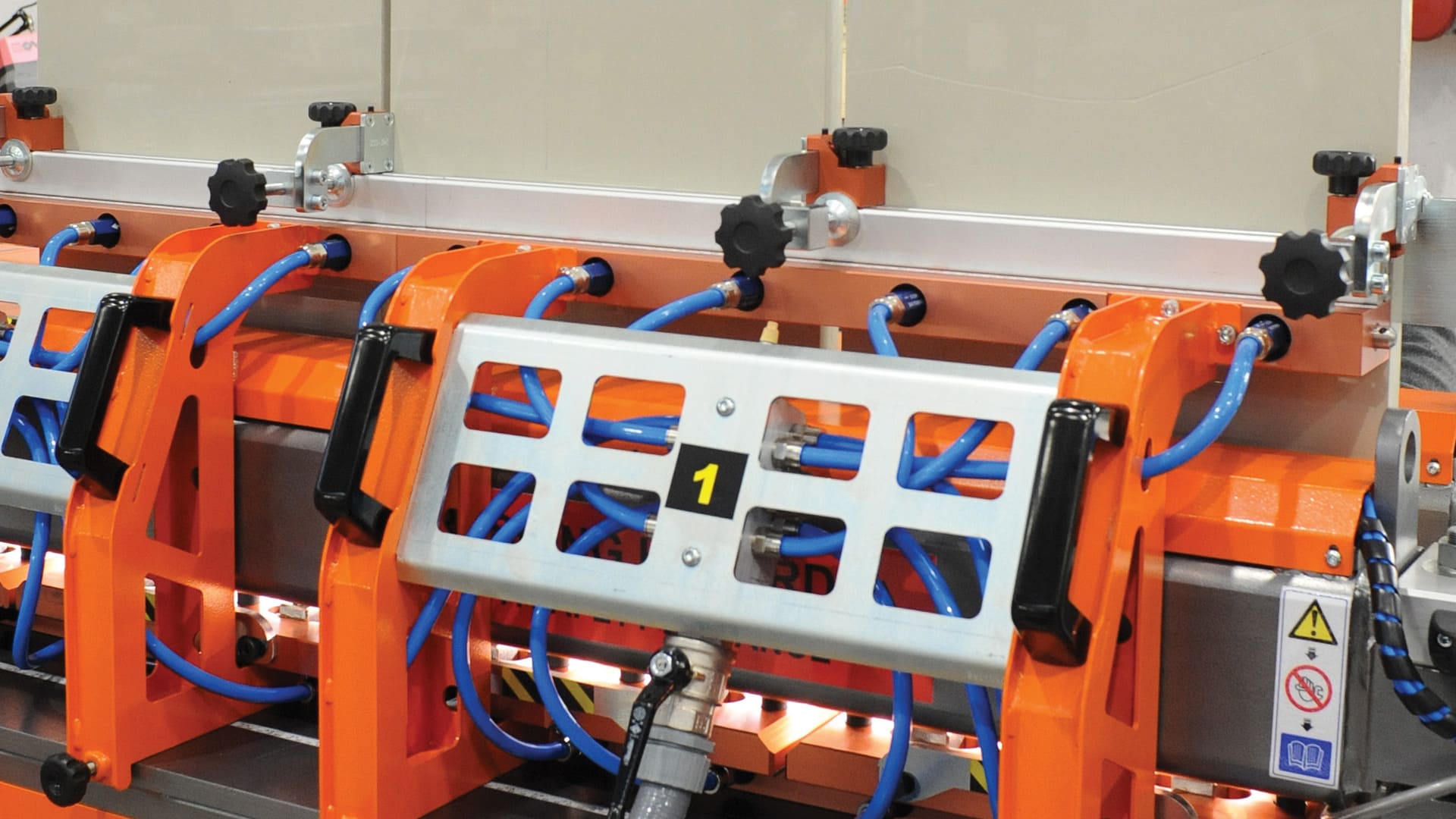

| Sheet locking clamps | pneumatic |

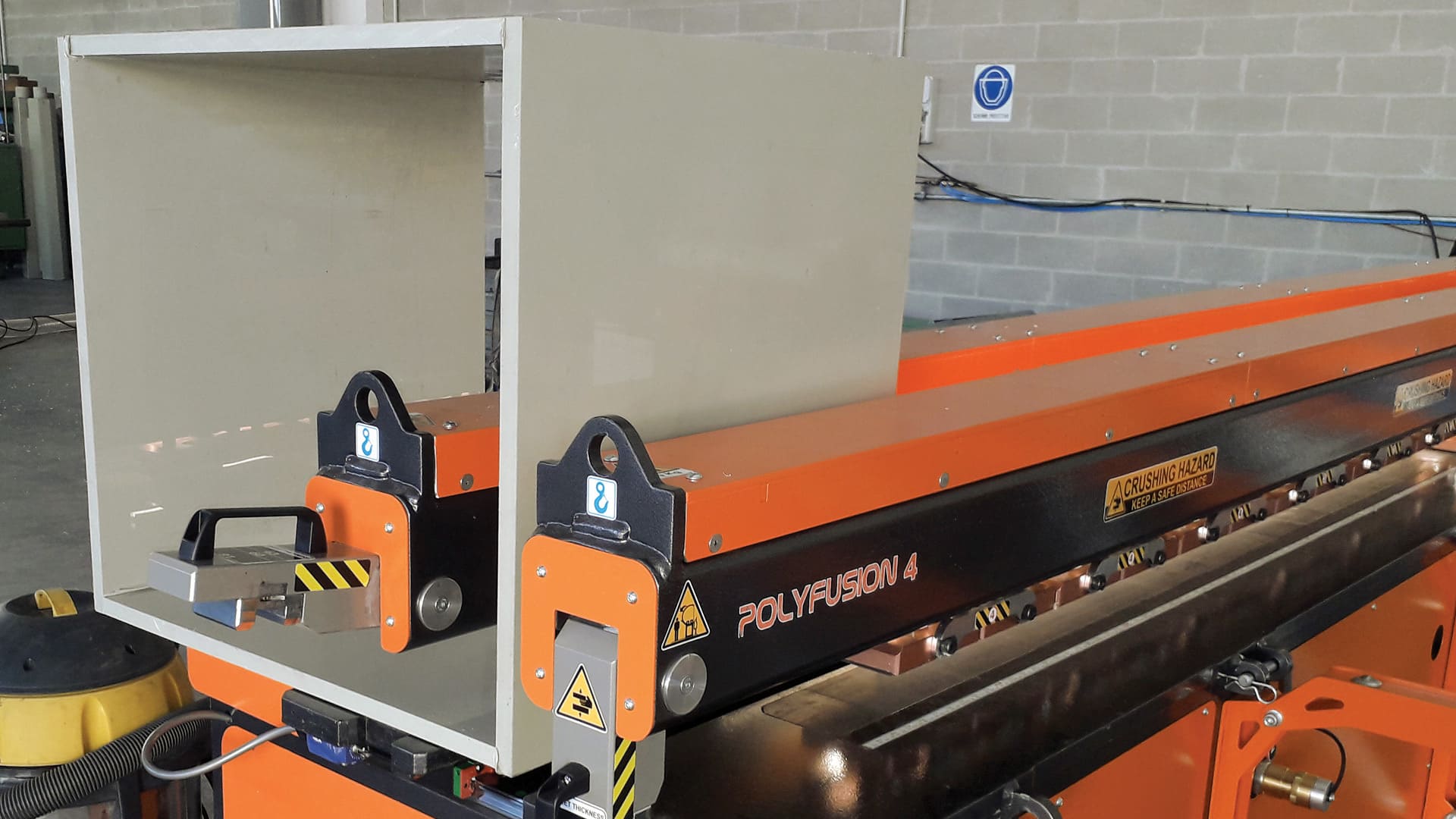

| Locking 90° sheets | pneumatic |
| Heating plate lift | automatic |
| Welding System | CNC |
| Report | CSV |
| Memory | limitless reports |

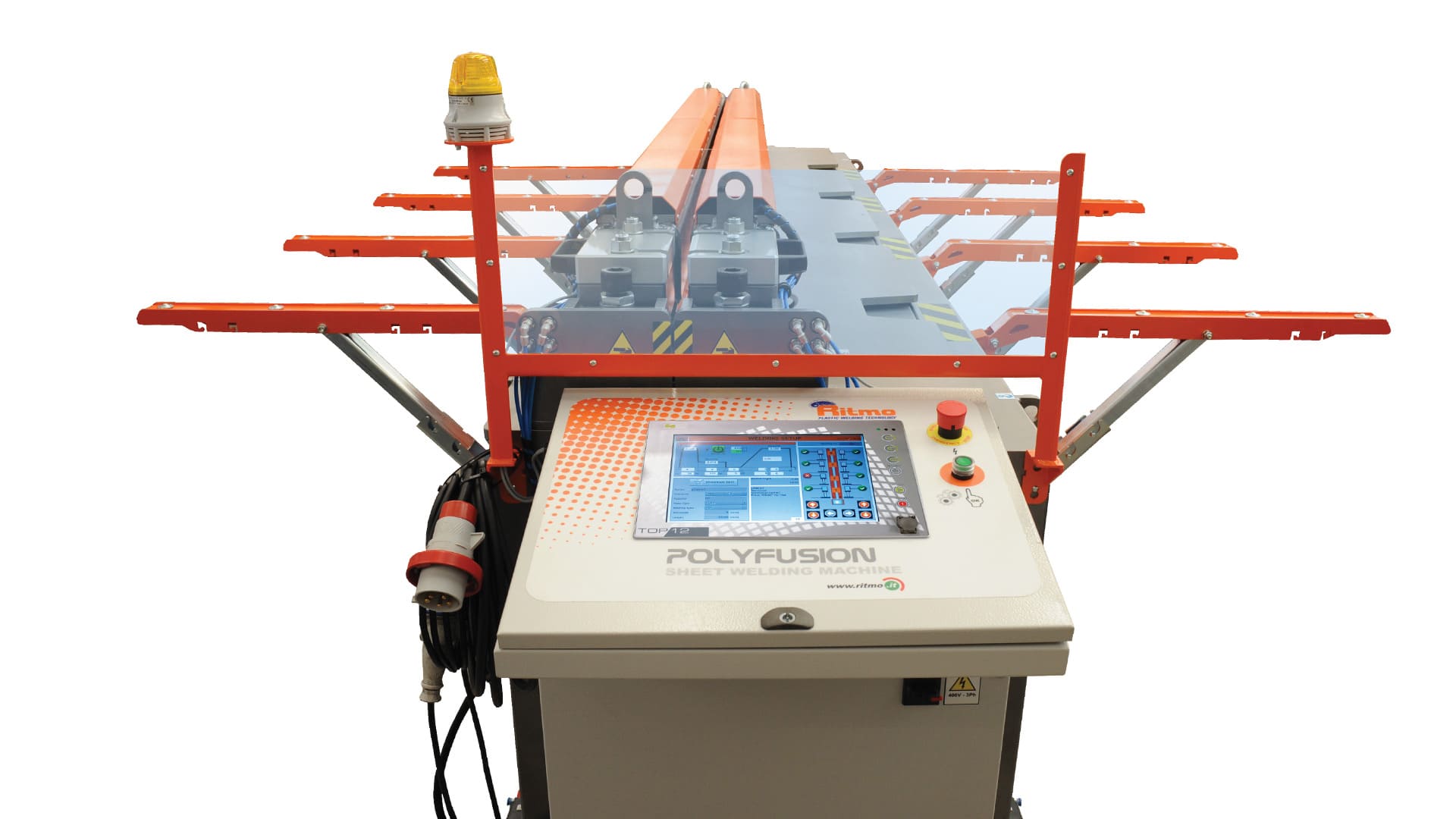

| Display | LCD 12" |
| Power supply | 400 V Three Phase 50/60 Hz |
| Total absorbed power | 13600 W |
| Dimensions | 5320 x 2673 x 1508 mm |
| Weight | 3200 Kg |
STANDARD COMPOSITION
