Build quality collectors with FM 630/125.

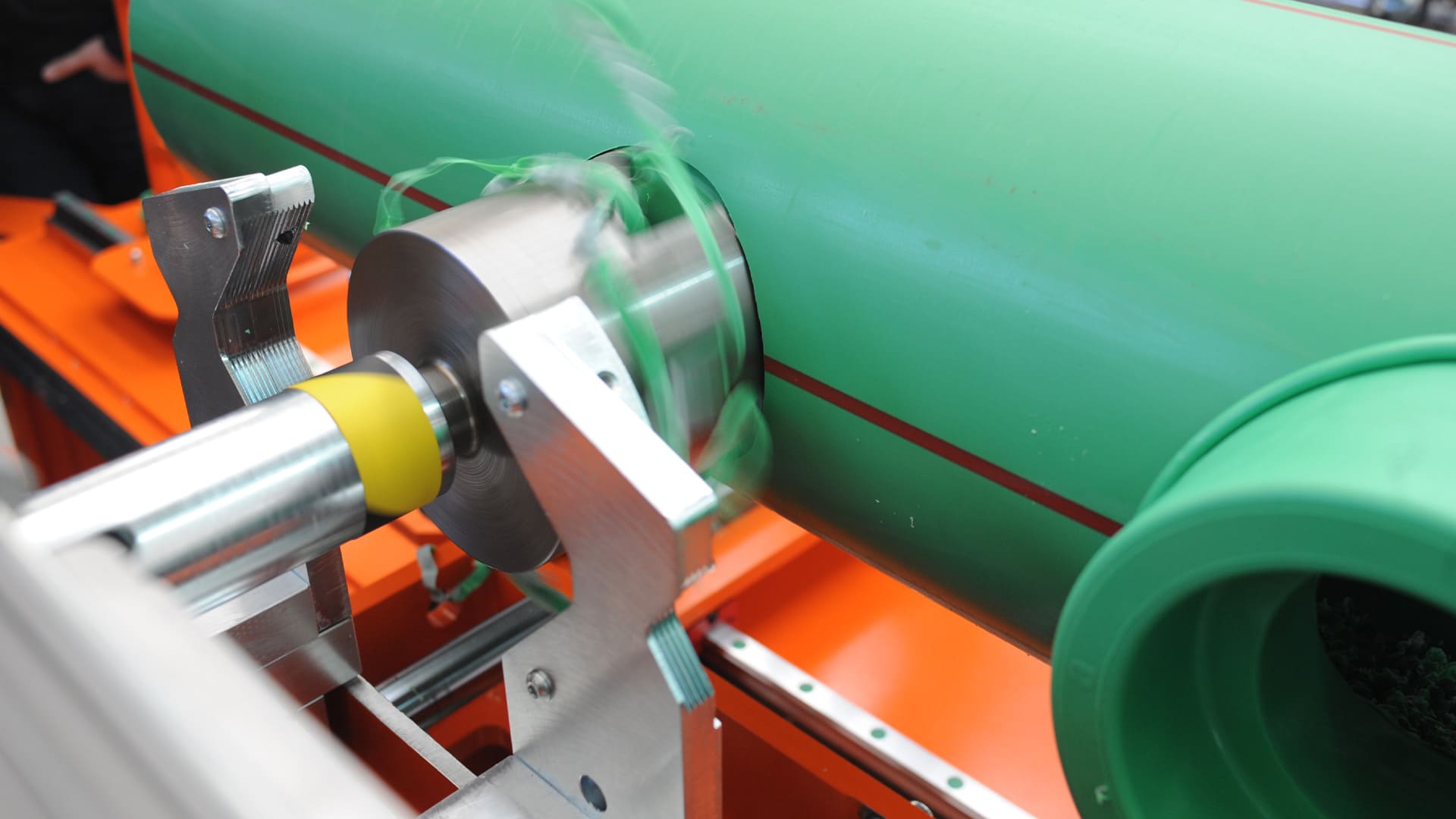

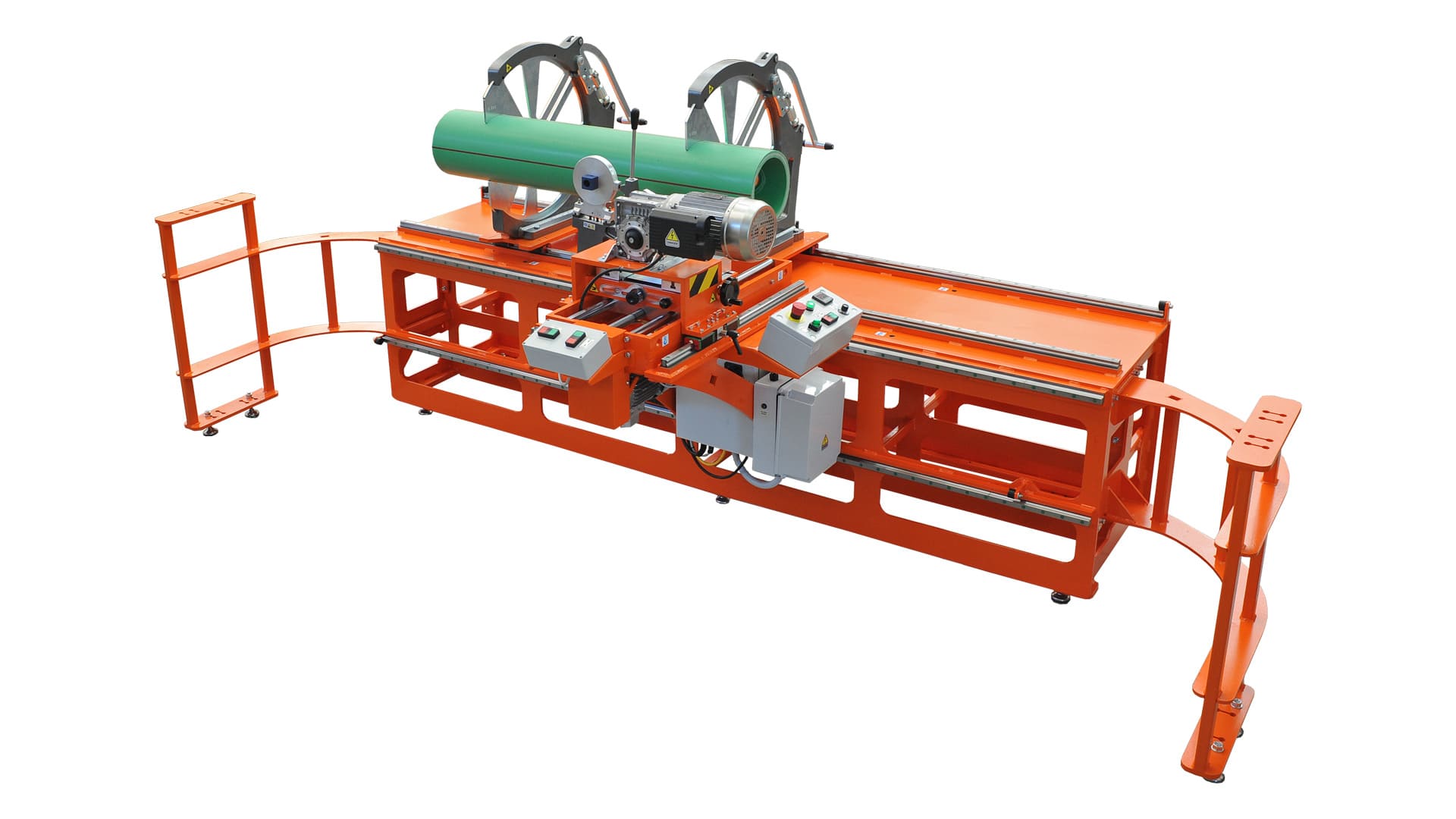

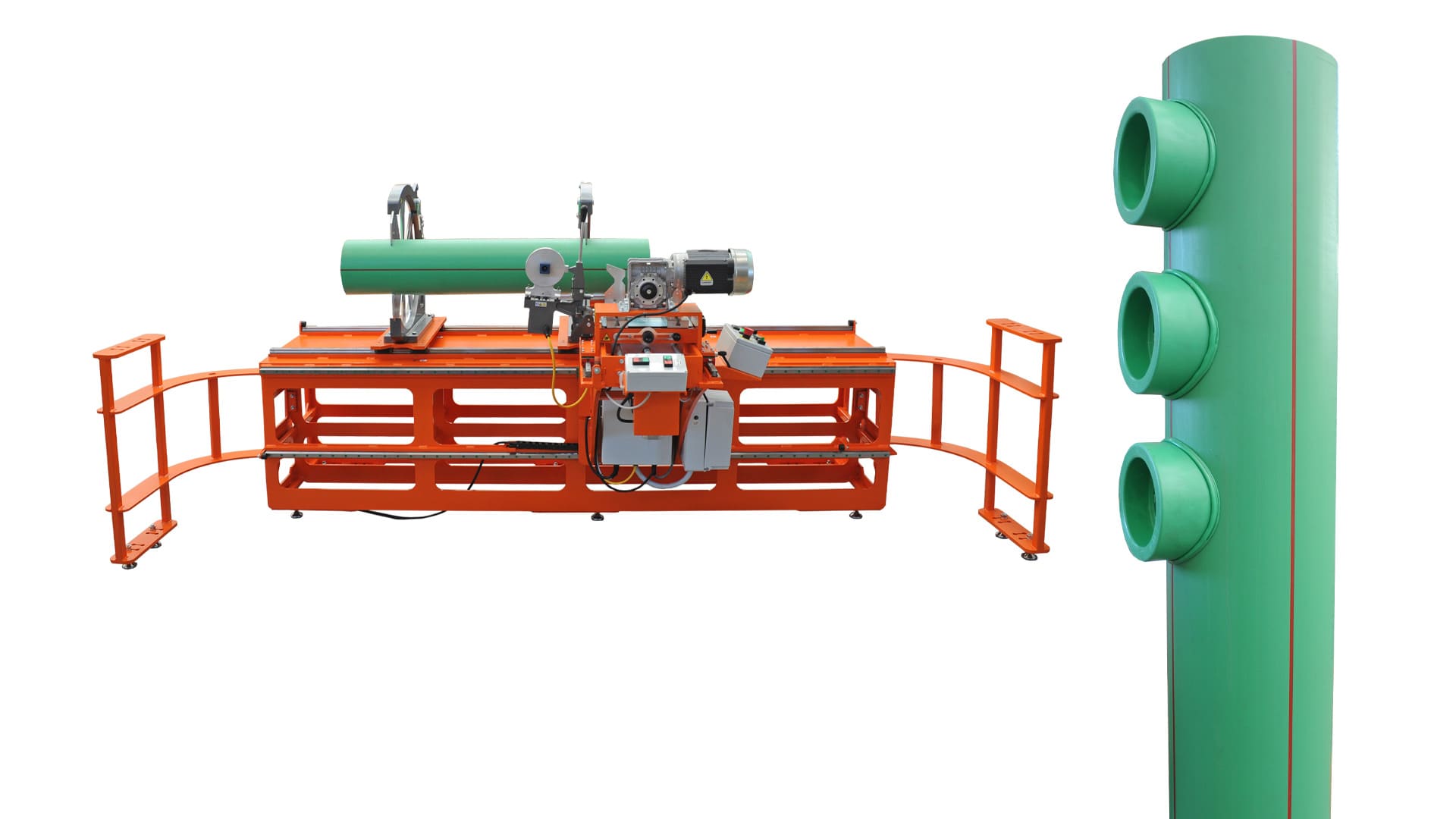

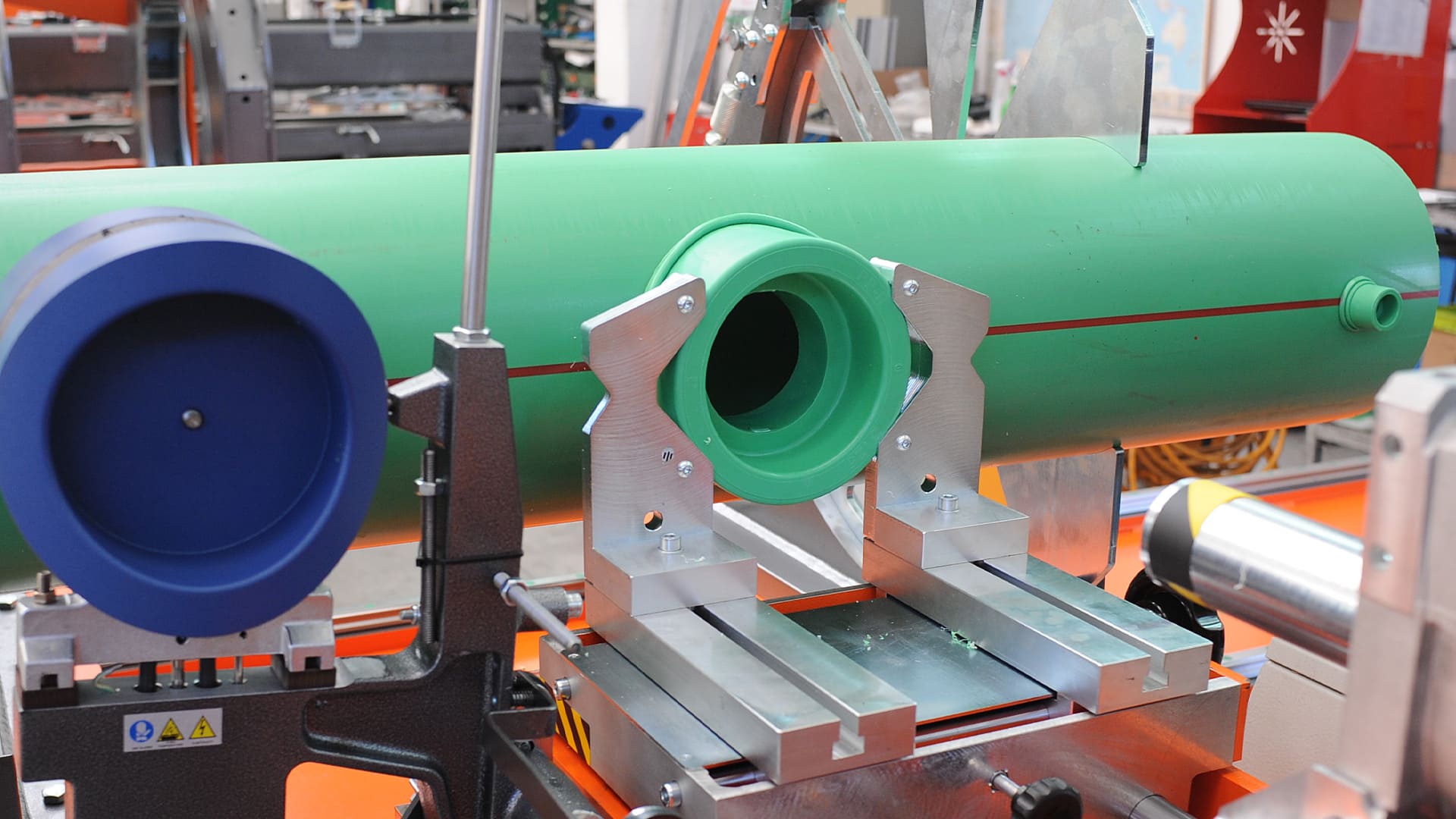

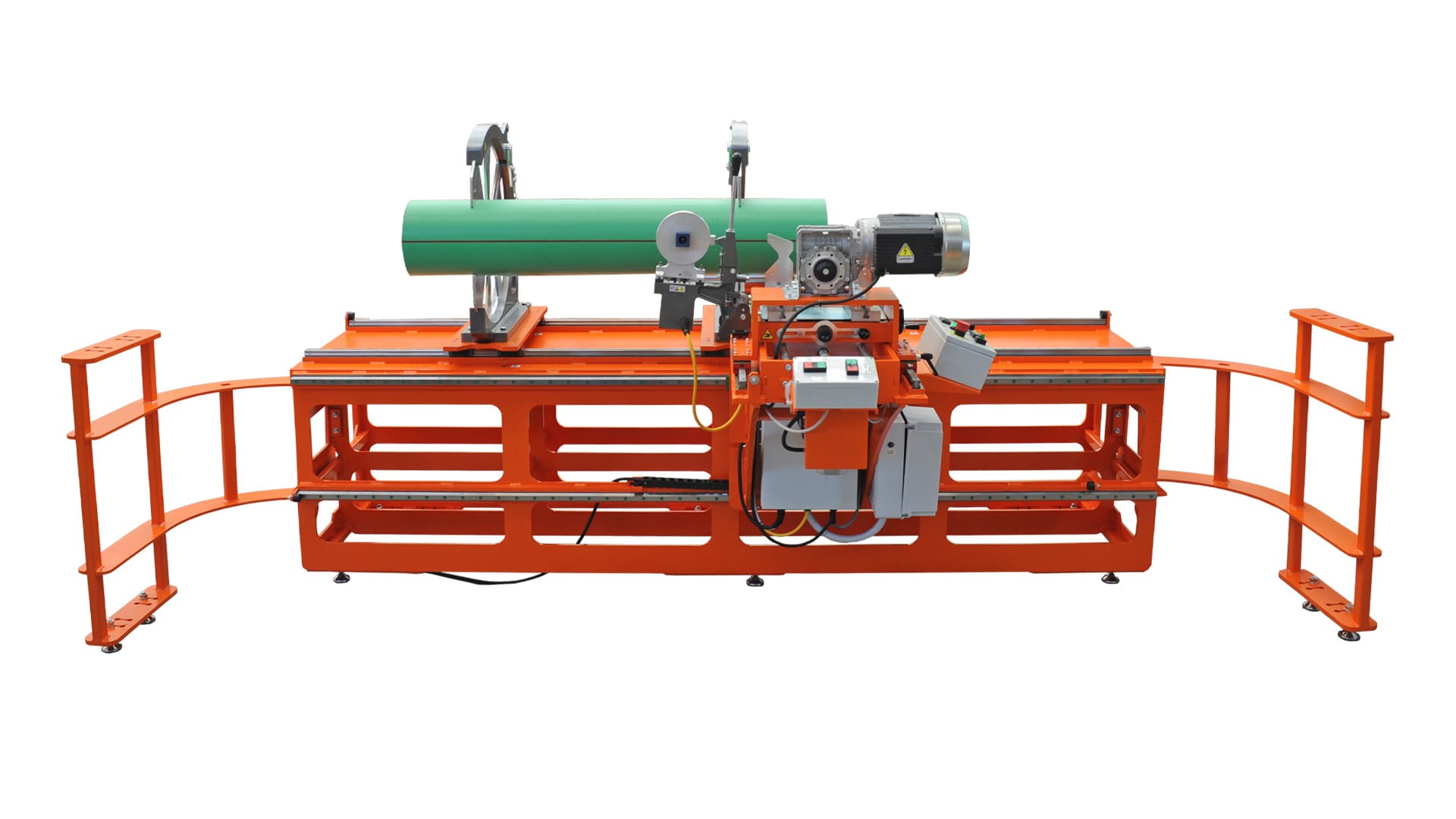

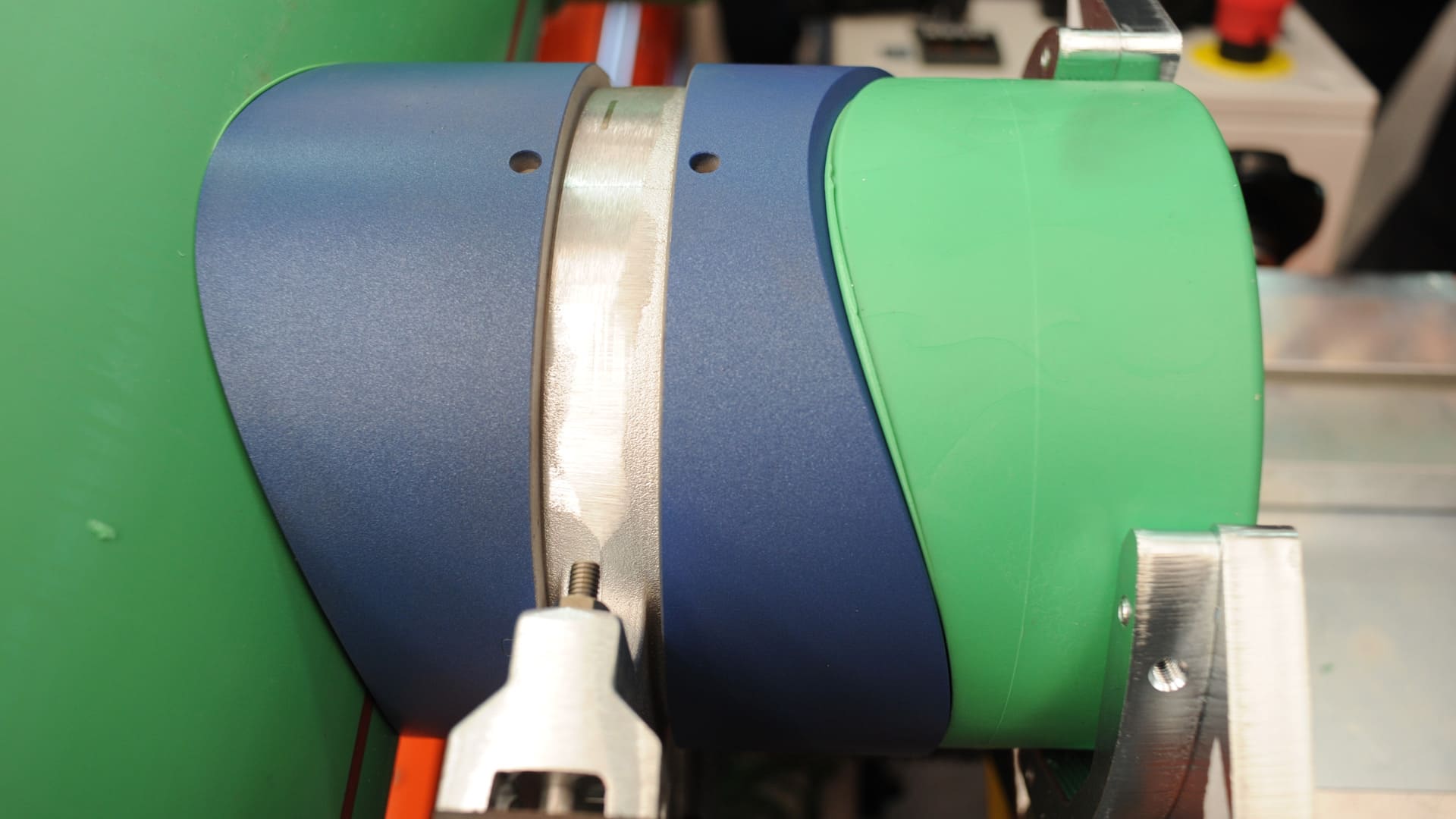

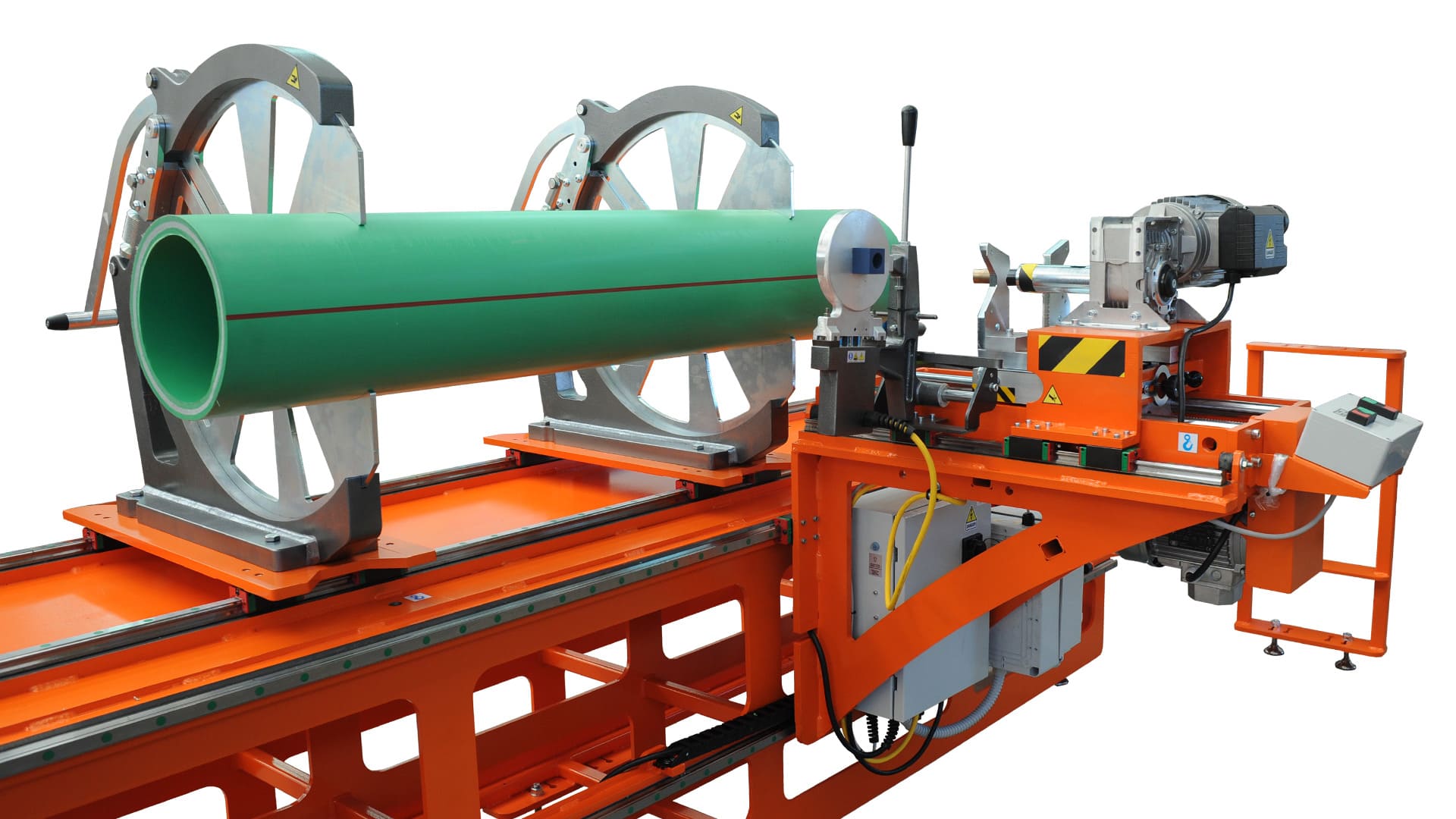

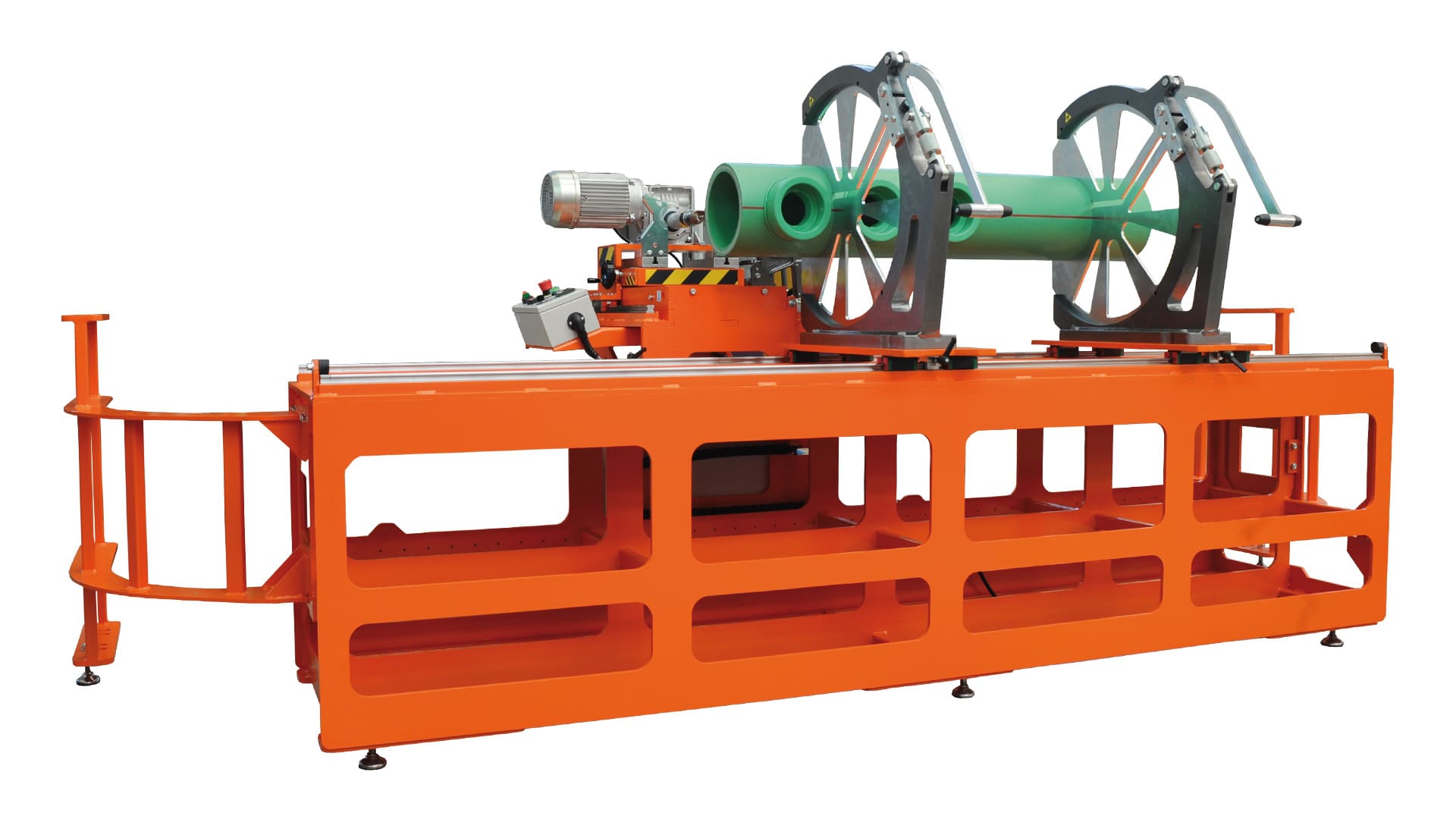

The welding machine is the solution for creating PP-R collectors up to Ø 630. FM 630-125 consists of two operational areas: a support bench where the pipe is fixed with two self-centering clamps that are free to slide along its entire length, and a work station capable of always moving parallel to the pipe to obtain collectors from Ø 50 ÷ 630 mm or 1½” ÷ 24″ and branches from Ø 20 ÷ 125 mm; ½” ÷ 4″.
TECHNOLOGY Socket fusion
FEATURES
TECHNICAL SPECS
| Working range Main Pipe OD range | Ø 50 ÷ 630 mm; 1½” ÷ 24” IPS |
| Working range Reduced Pipe OD range | Ø 20 ÷ 125 mm; ½” ÷ 4” IPS |
| Power supply | 230 V Single-phase 50/60 Hz |
| Total absorbed power | 3100 W |
| Dimensions | 3967 x 1895 x 1571 mm 156.1” x 74.6” x 61.8” |
| Weight | 1100 Kg (2.425 lb) |
STANDARD COMPOSITION
