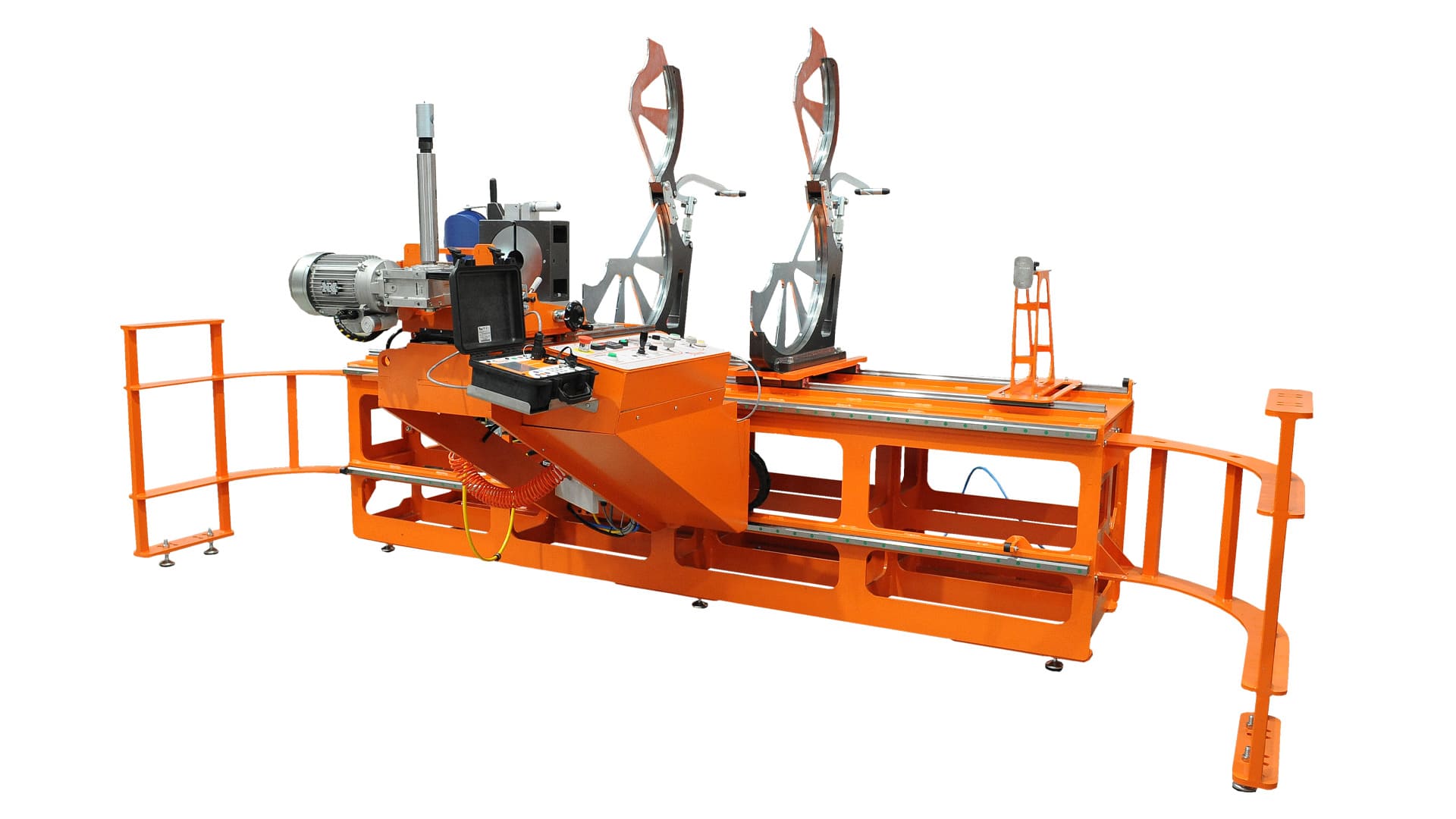

With FM 630/180 you have infinite possibilities with millimetric precision.

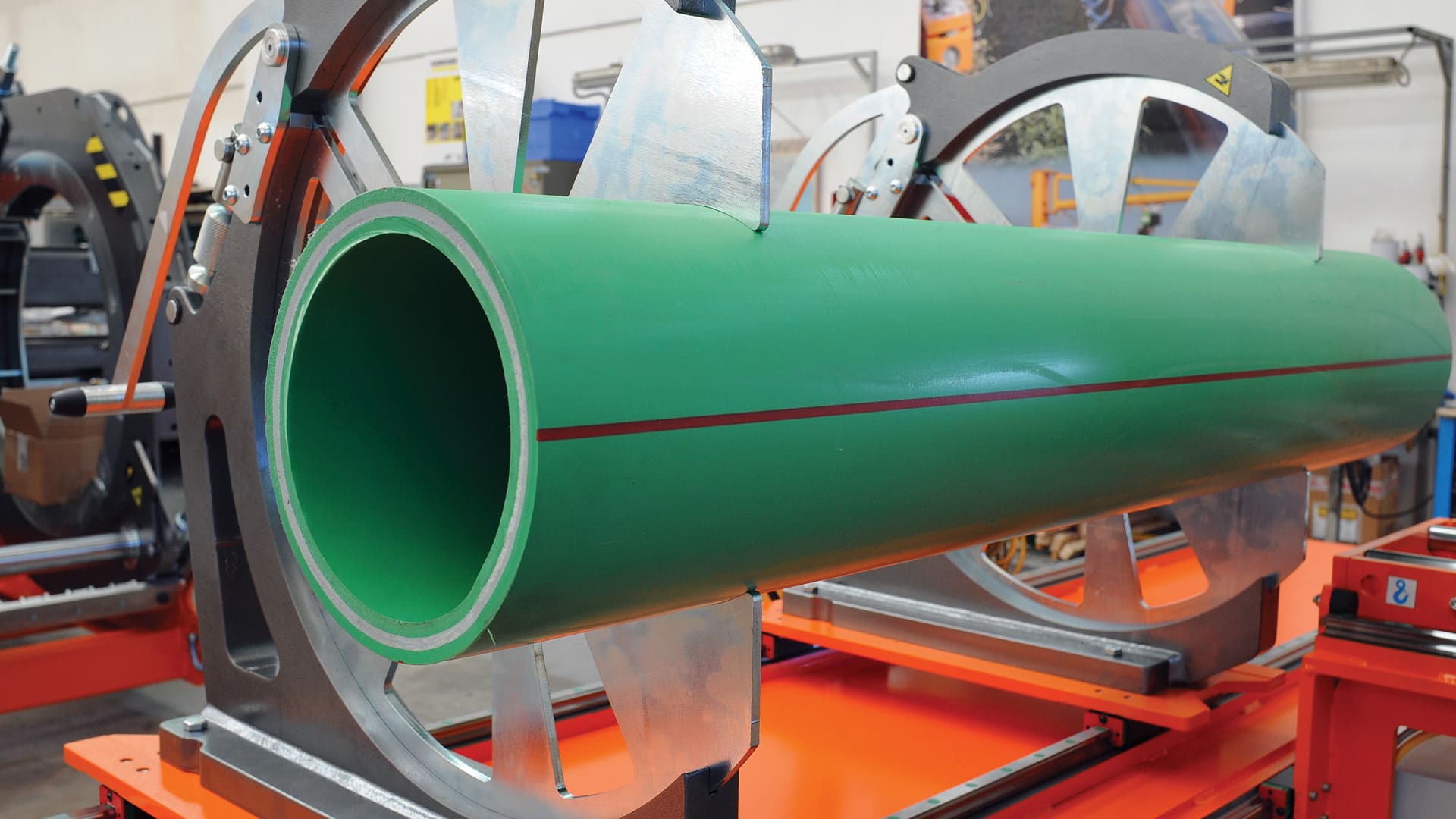

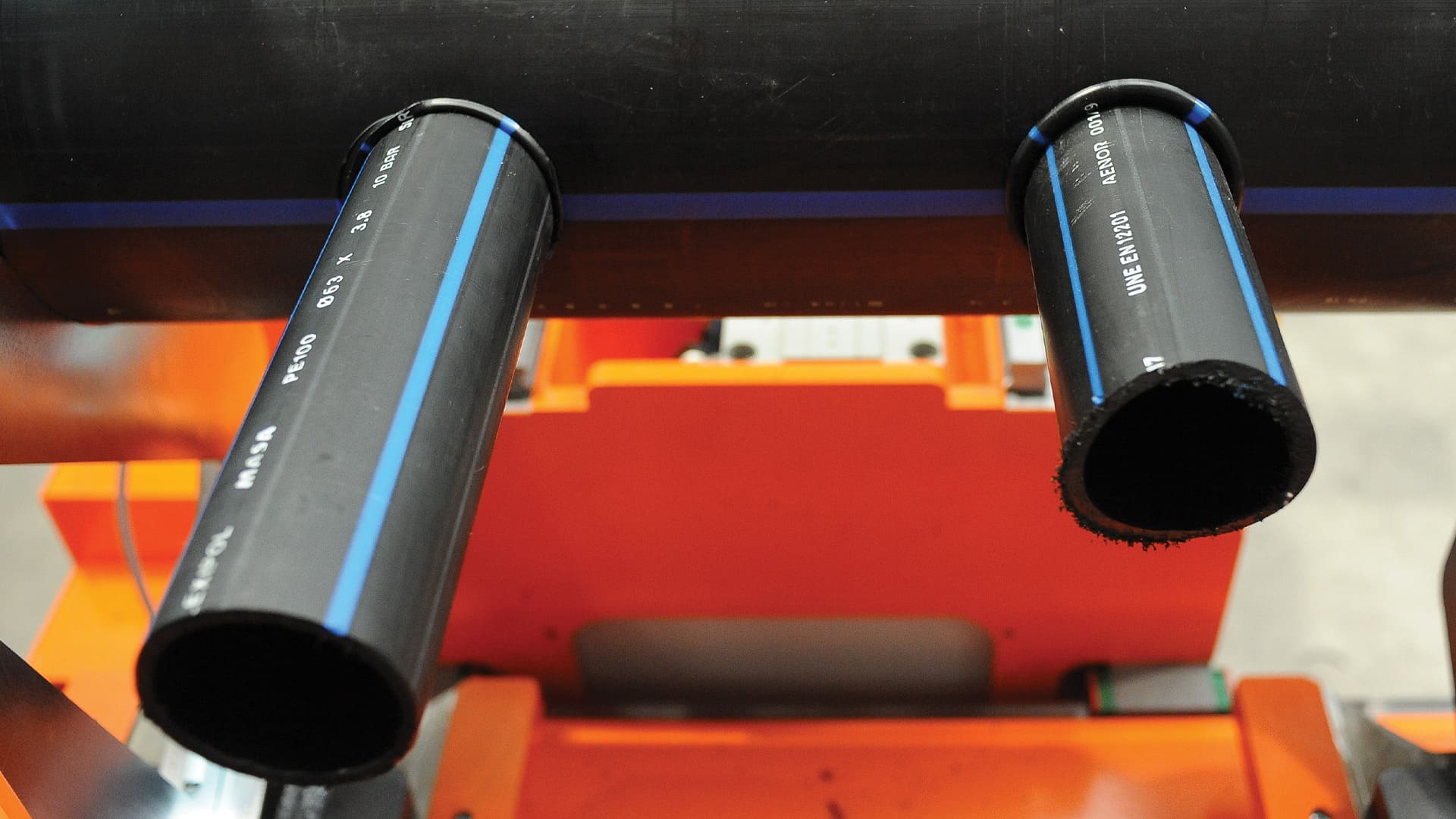

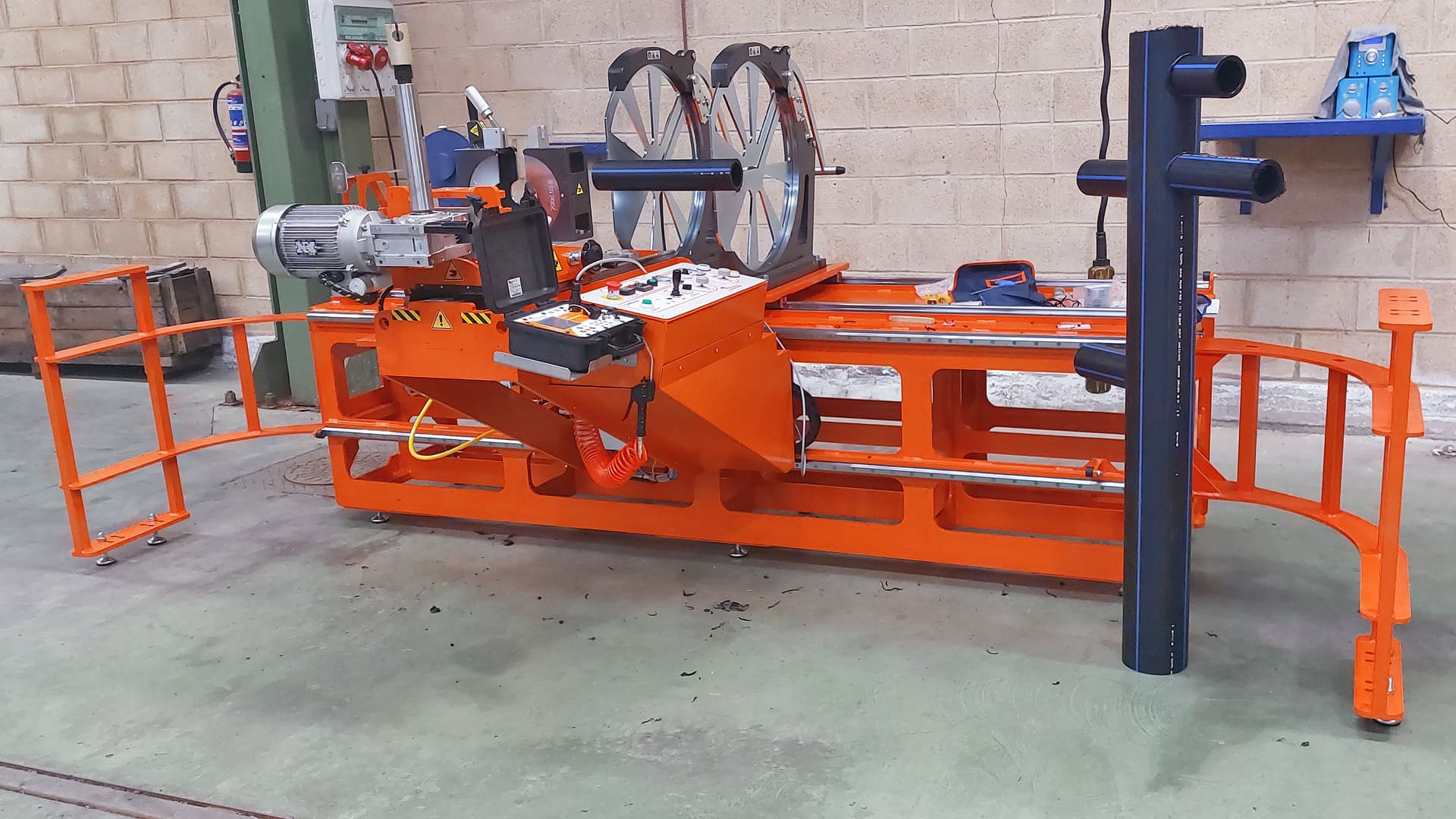

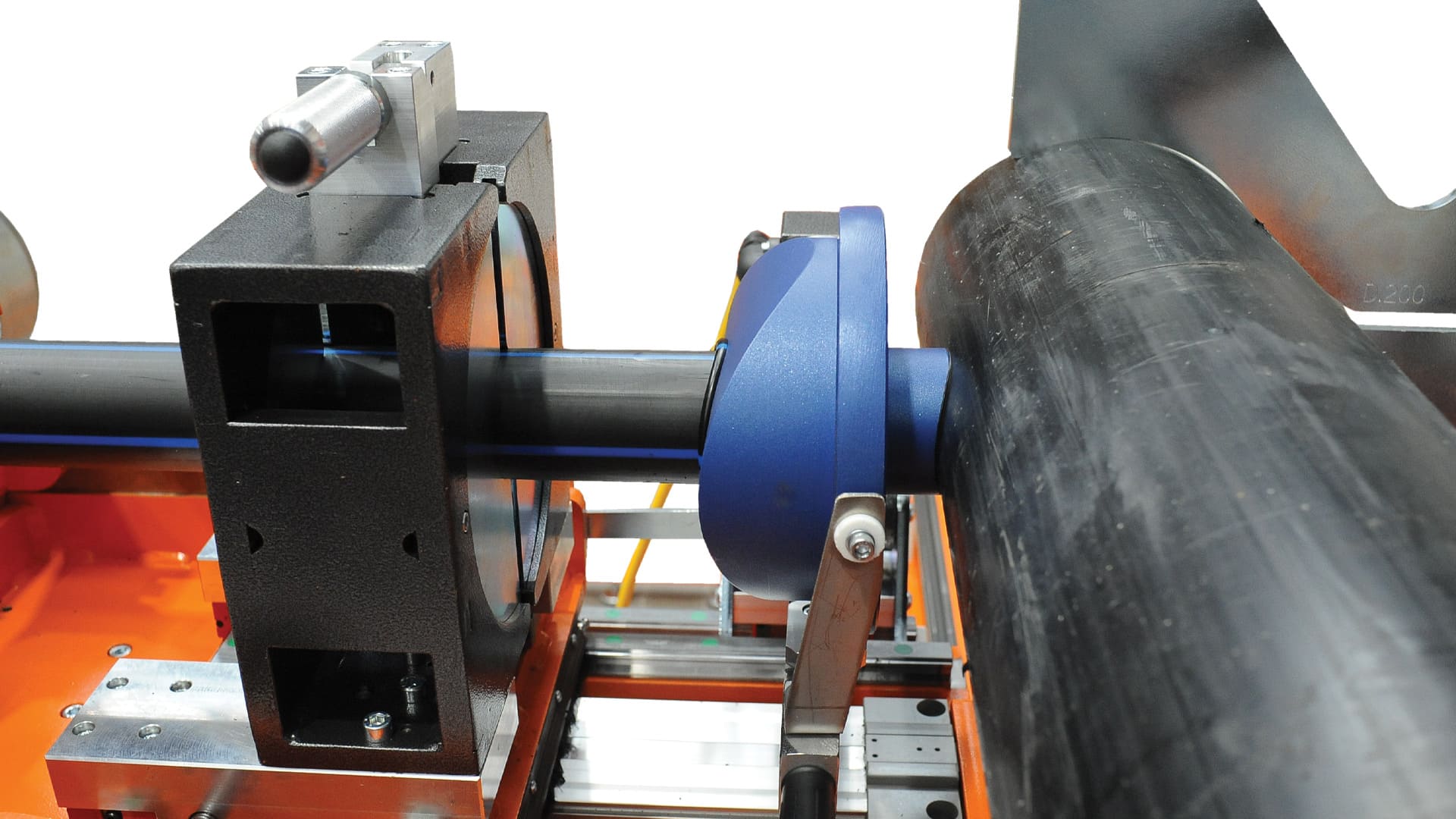

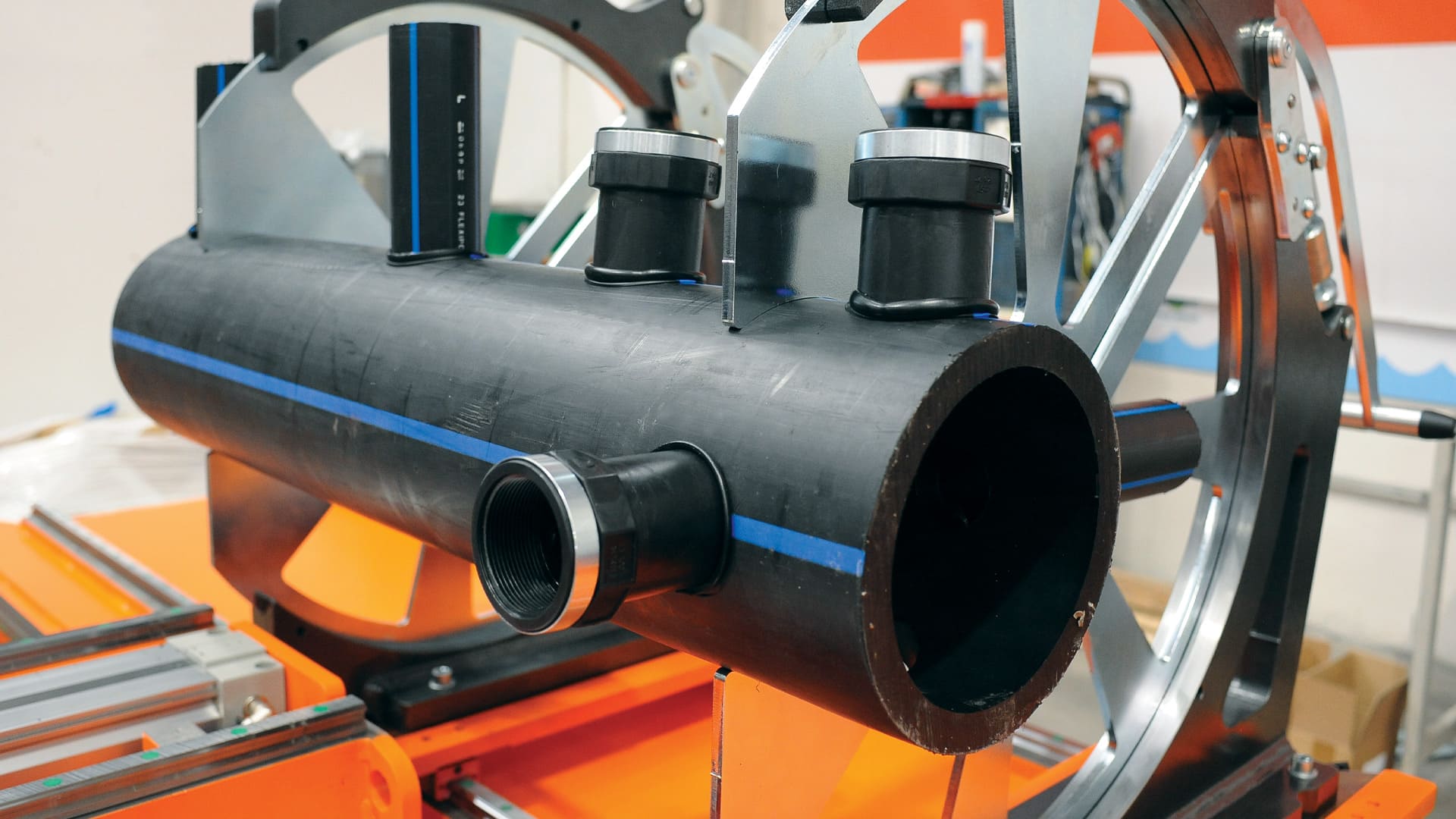

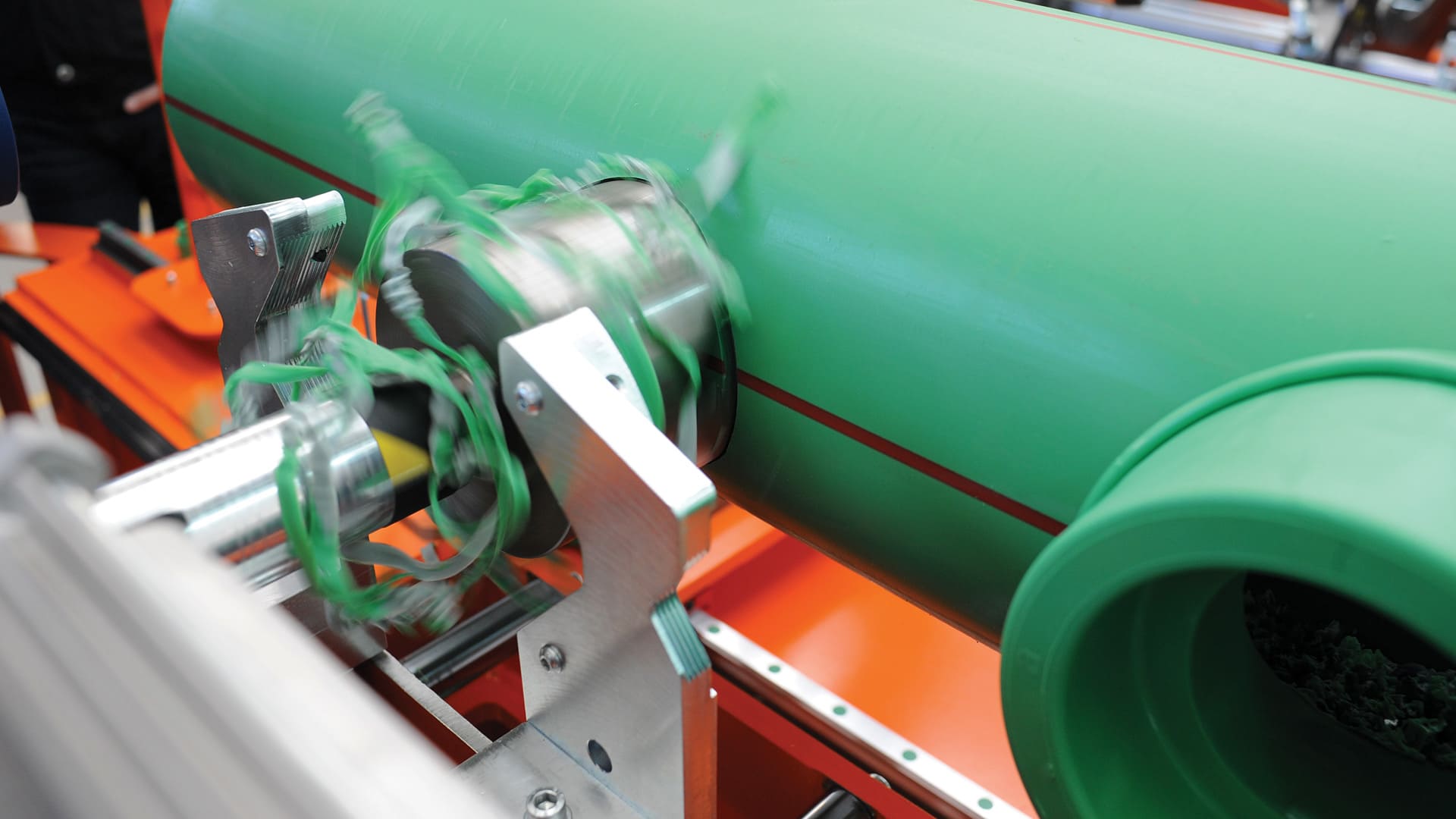

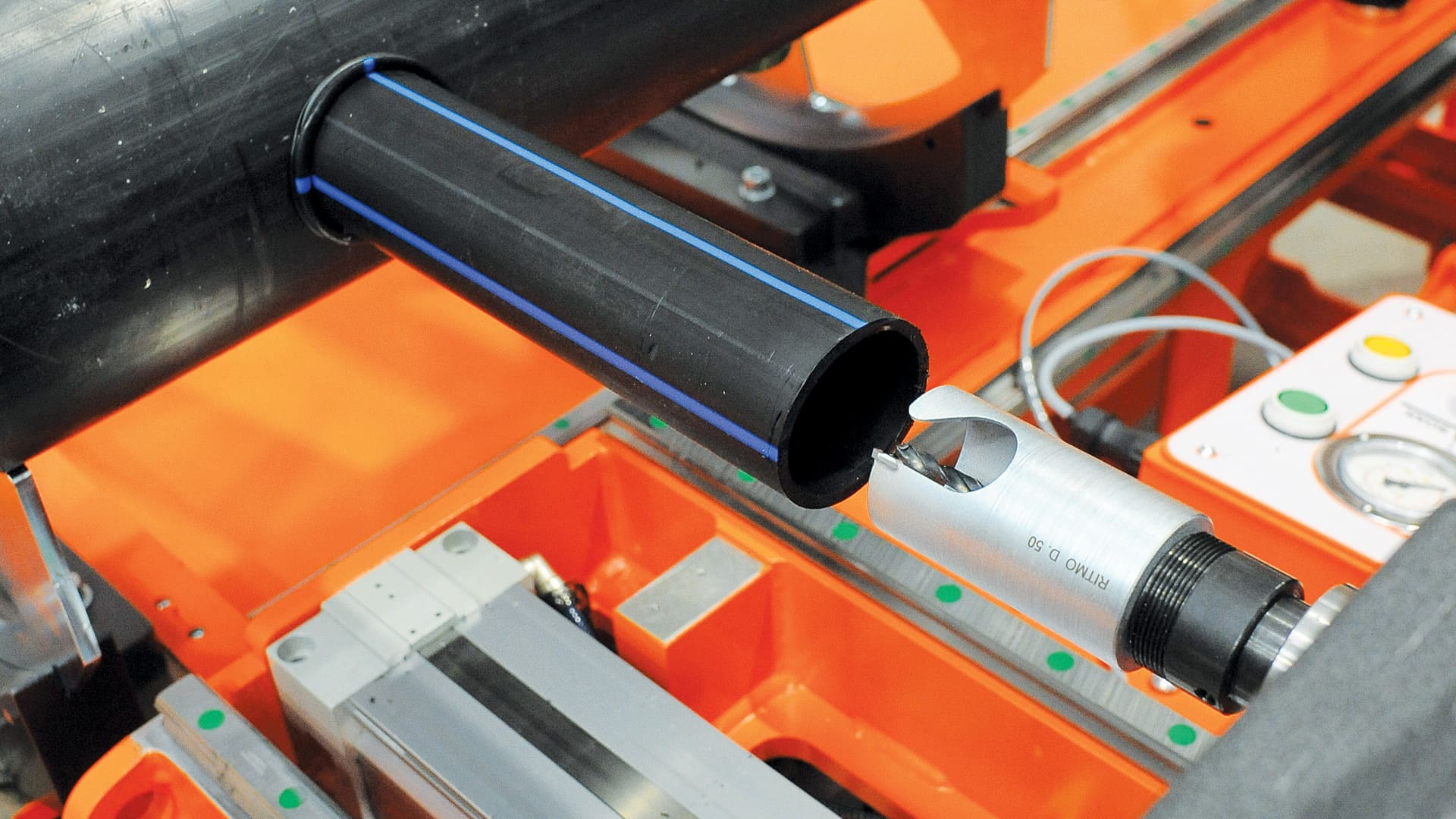

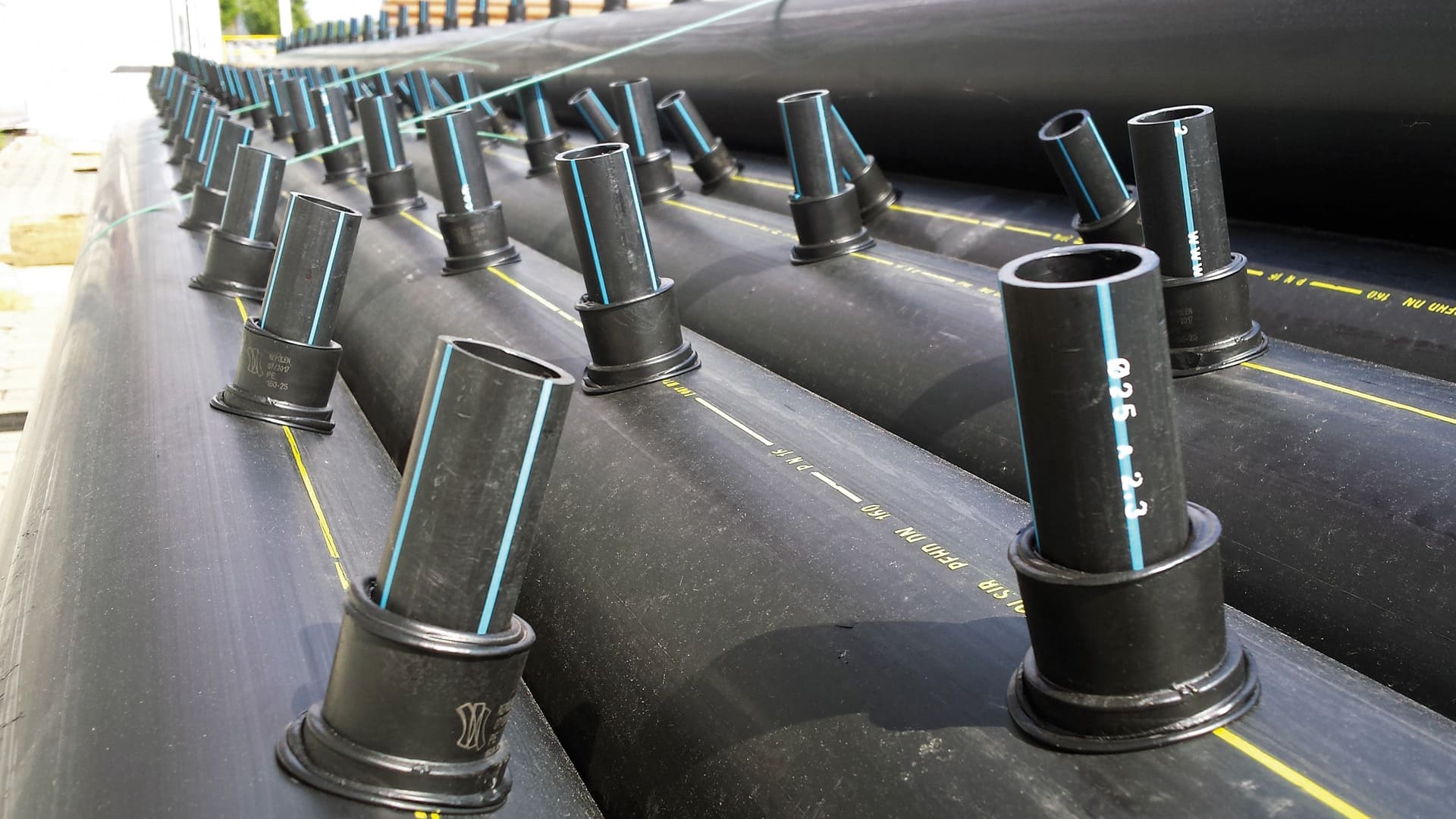

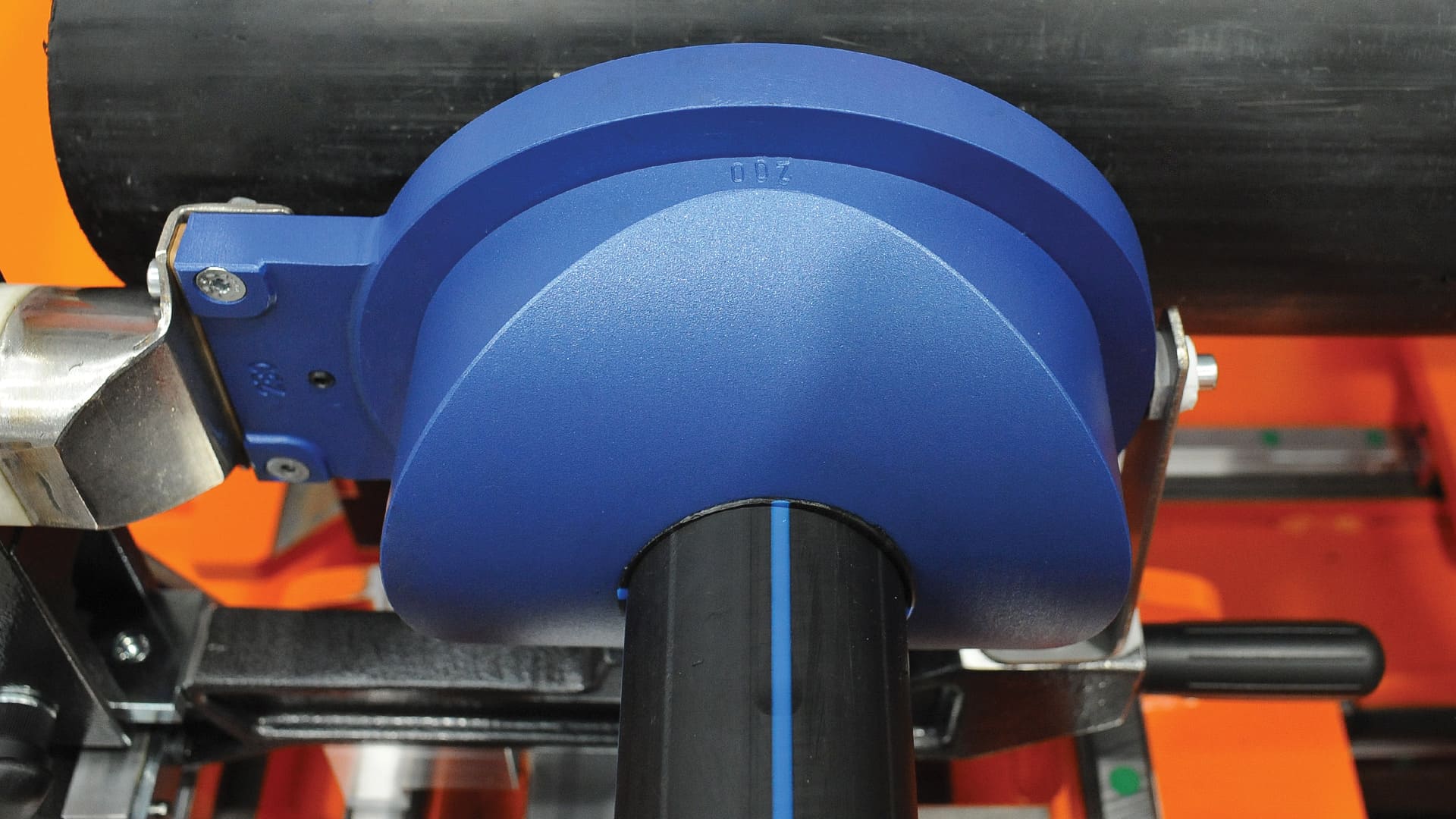

Pneumatic welding machine, easy to use, for building customized collectors up to Ø 630 mm in HDPE, PP, and PP-R. The operator can standardize the workflow with maximum flexibility and be able to weld by choosing between: butt fusion or socket fusion, always guaranteeing maximum quality. To certify the welding, it is possible to use a DataLogger Inspector 2.0 (on request).

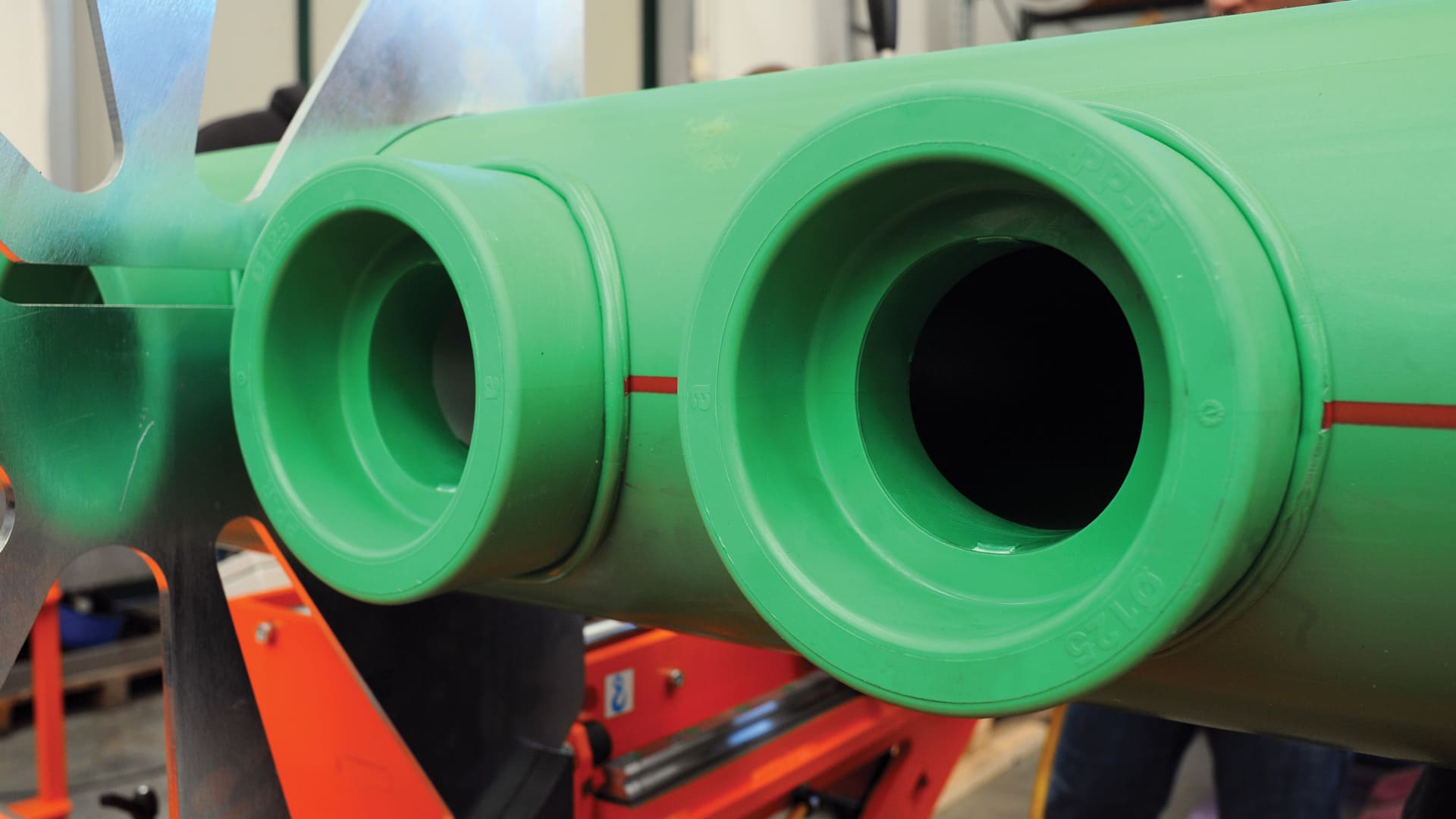

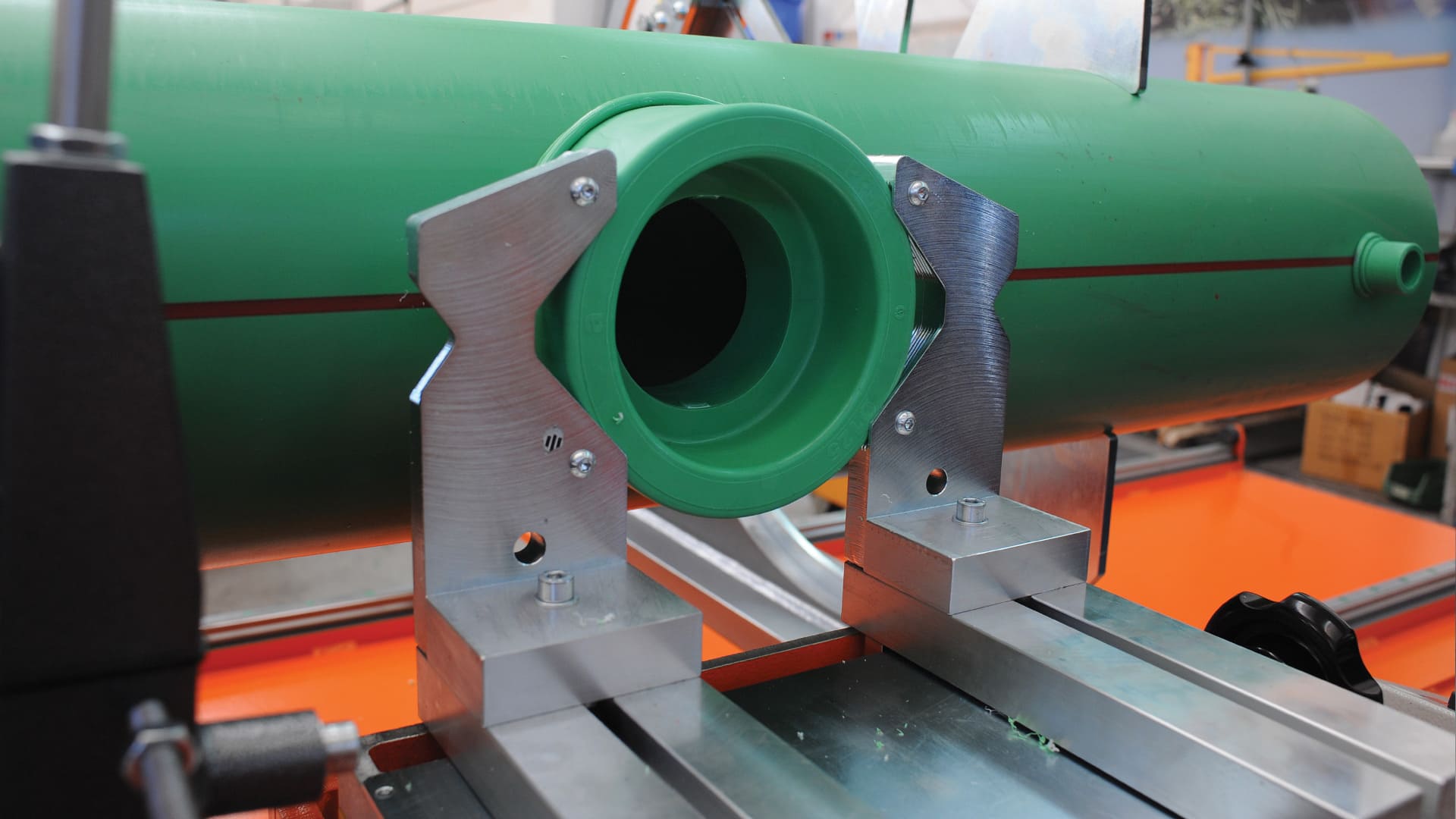

TECHNOLOGY Socket fusion
FEATURES
TECHNICAL SPECS
| Working range Butt Fusion | Main Pipe: Ø 50 ÷ 630 mm; 1½” IPS ÷ 24” IPS Branch pipe/fitting: Ø 32 ÷ 180 mm; 1” IPS ÷ 6” IPS |
| Working range Socket Fusion | Main pipe Ø 50 ÷ 630 mm; 1½” ÷ 24” Branch pipe/fitting: Ø 20 ÷ 125 mm; ½” ÷ 4” |
| Power supply | 230 V - 50 Hz |
| Total absorbed power | 3400 W |
| Outside temperature range | -5° ÷ 40° C (23° ÷ 104° F) |
| Pneumatic system requirements | Minimum 8 bar |
| Pressure | PE 0.15 N/mm2; PP 0.10 N/mm2 |
| Weight | 1260 Kg (2777 lb) |
STANDARD COMPOSITION
