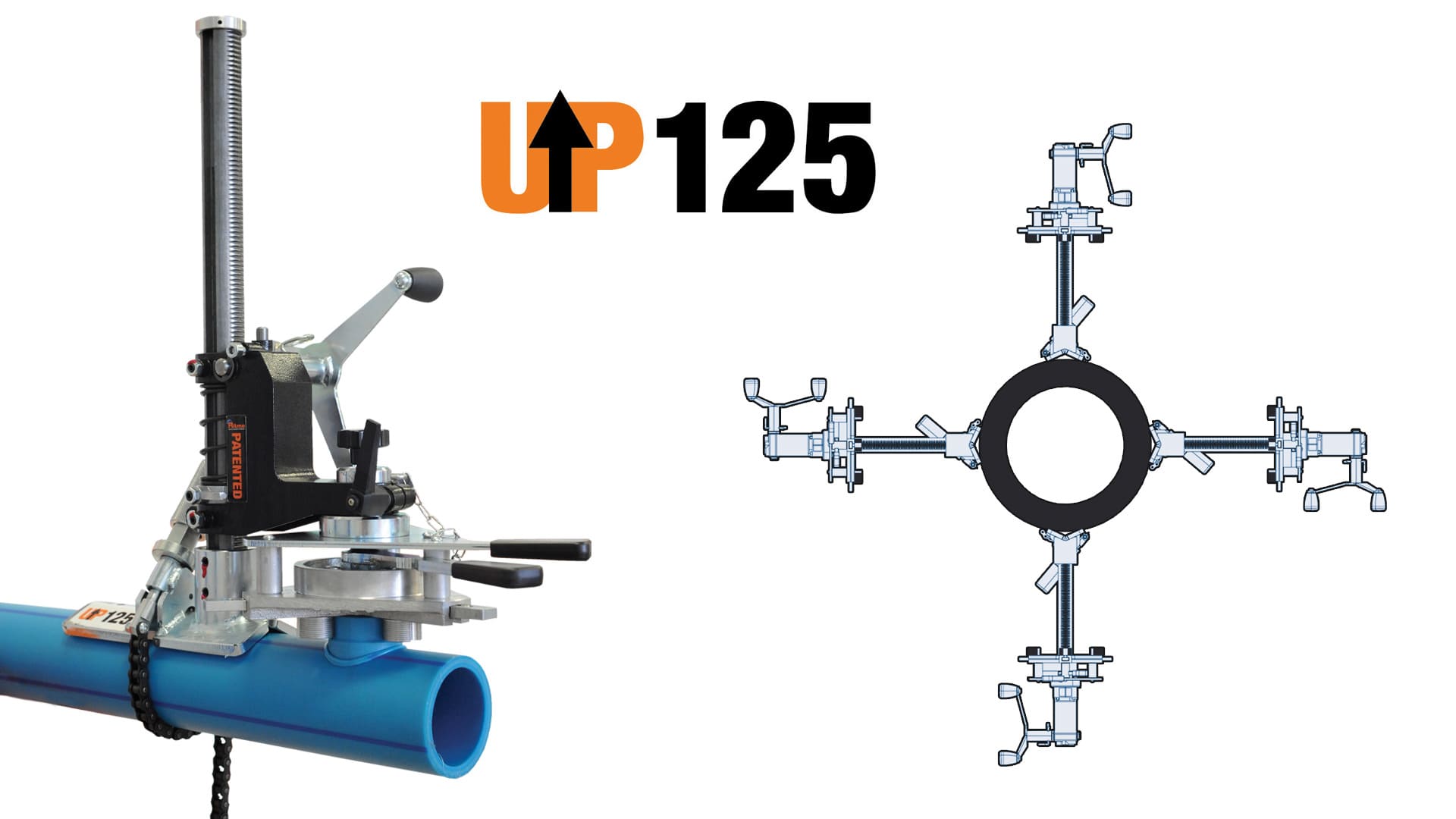

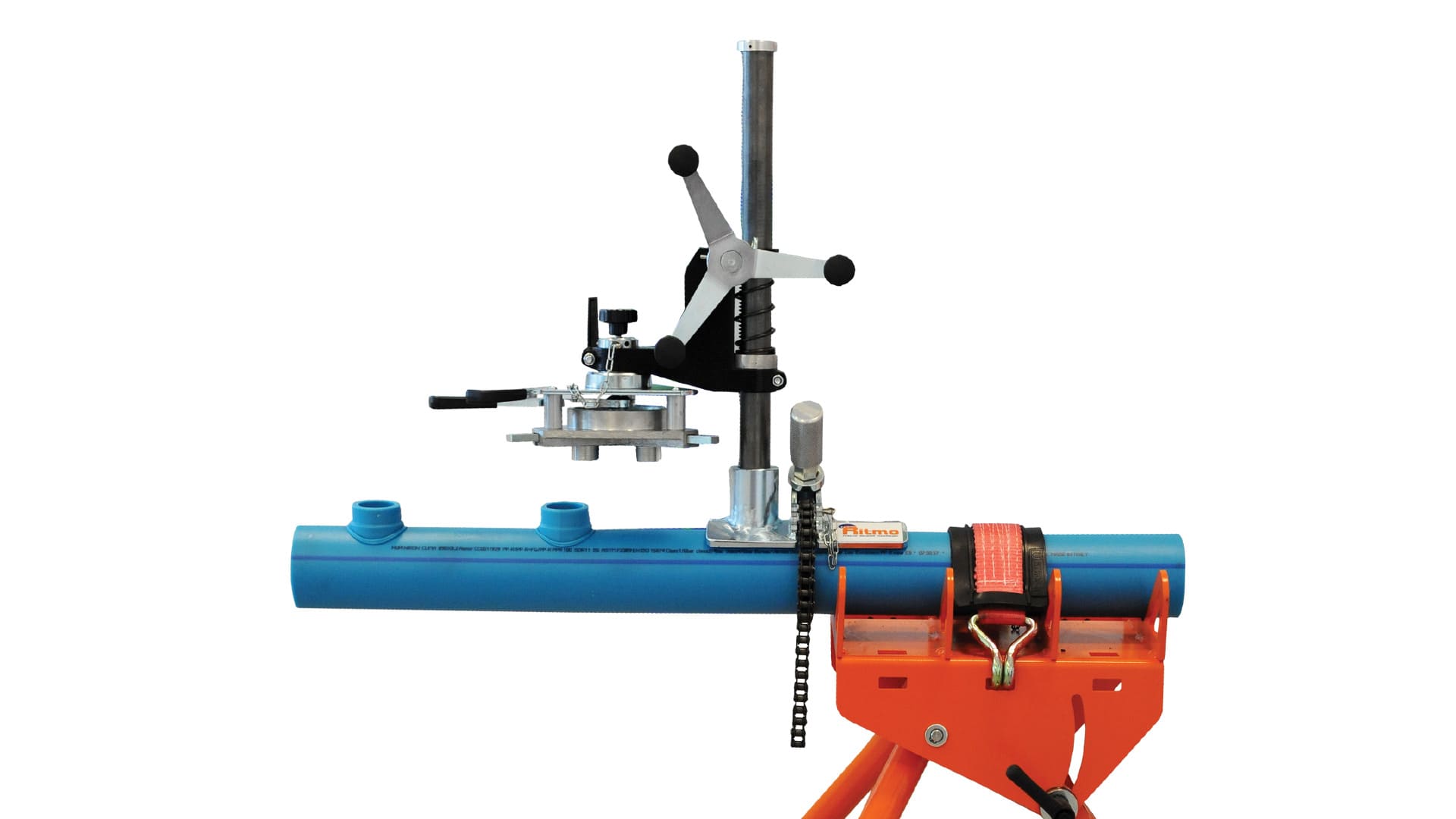

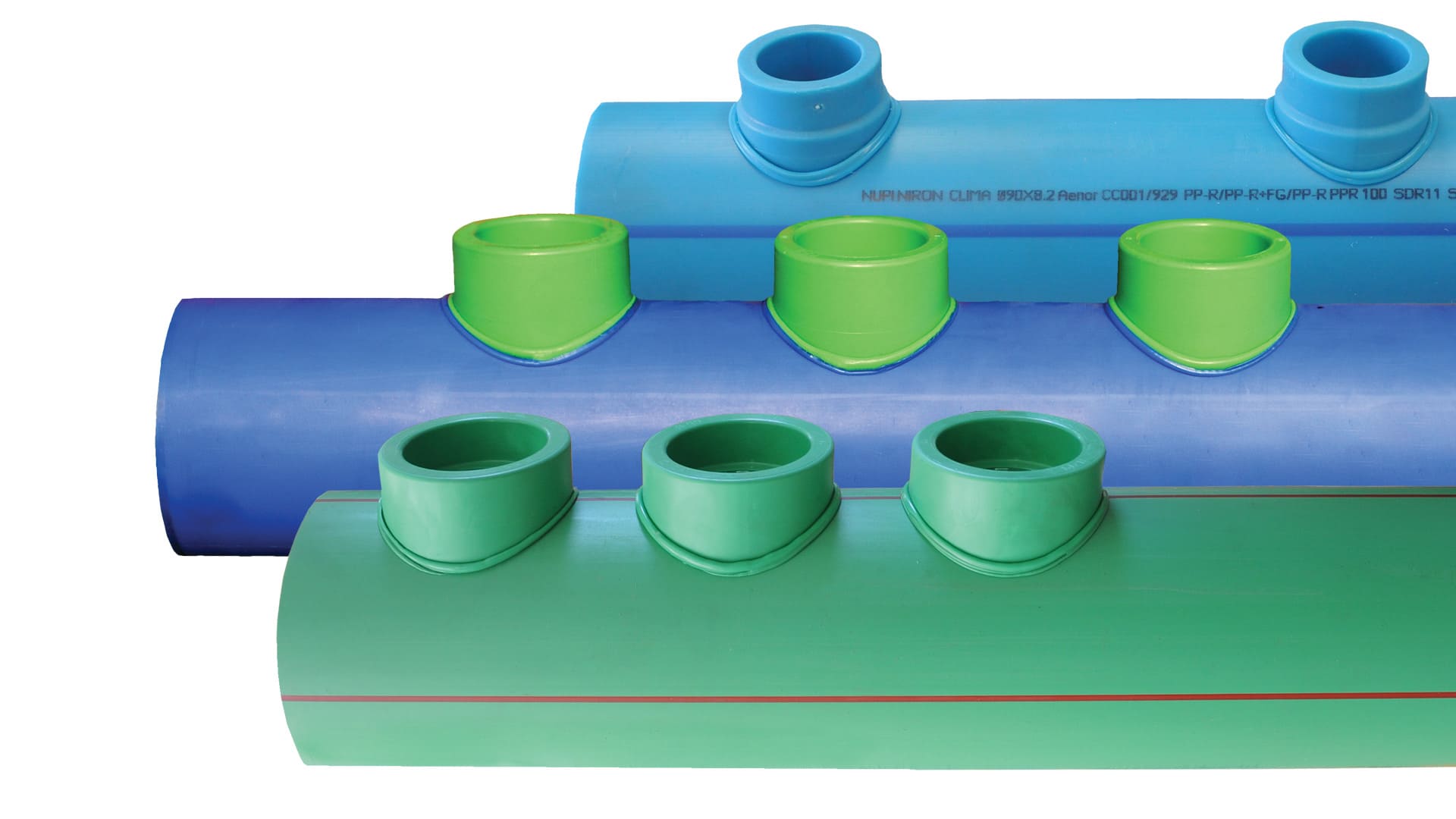

With UP 125, building collectors has never been so easy.

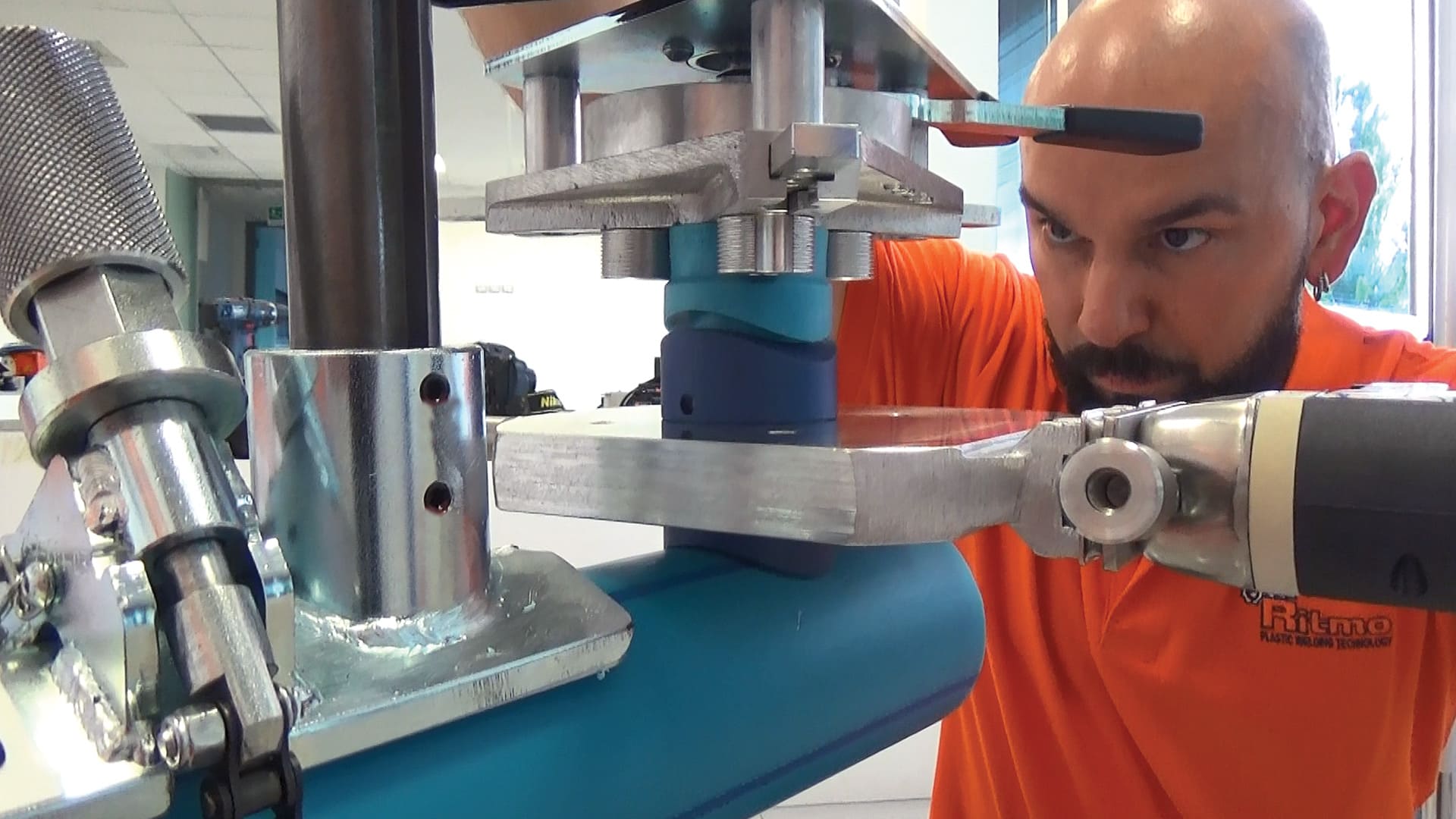

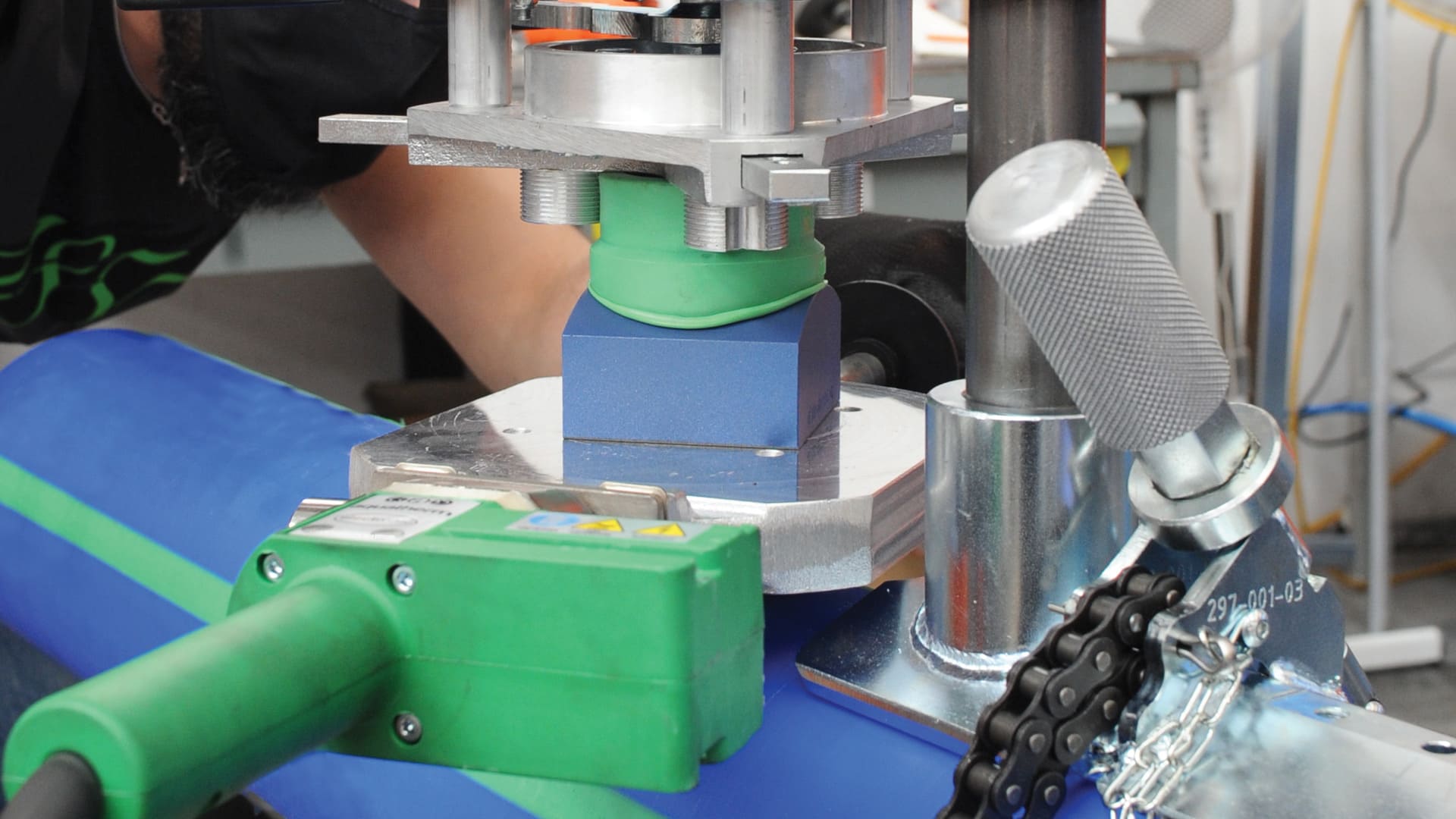

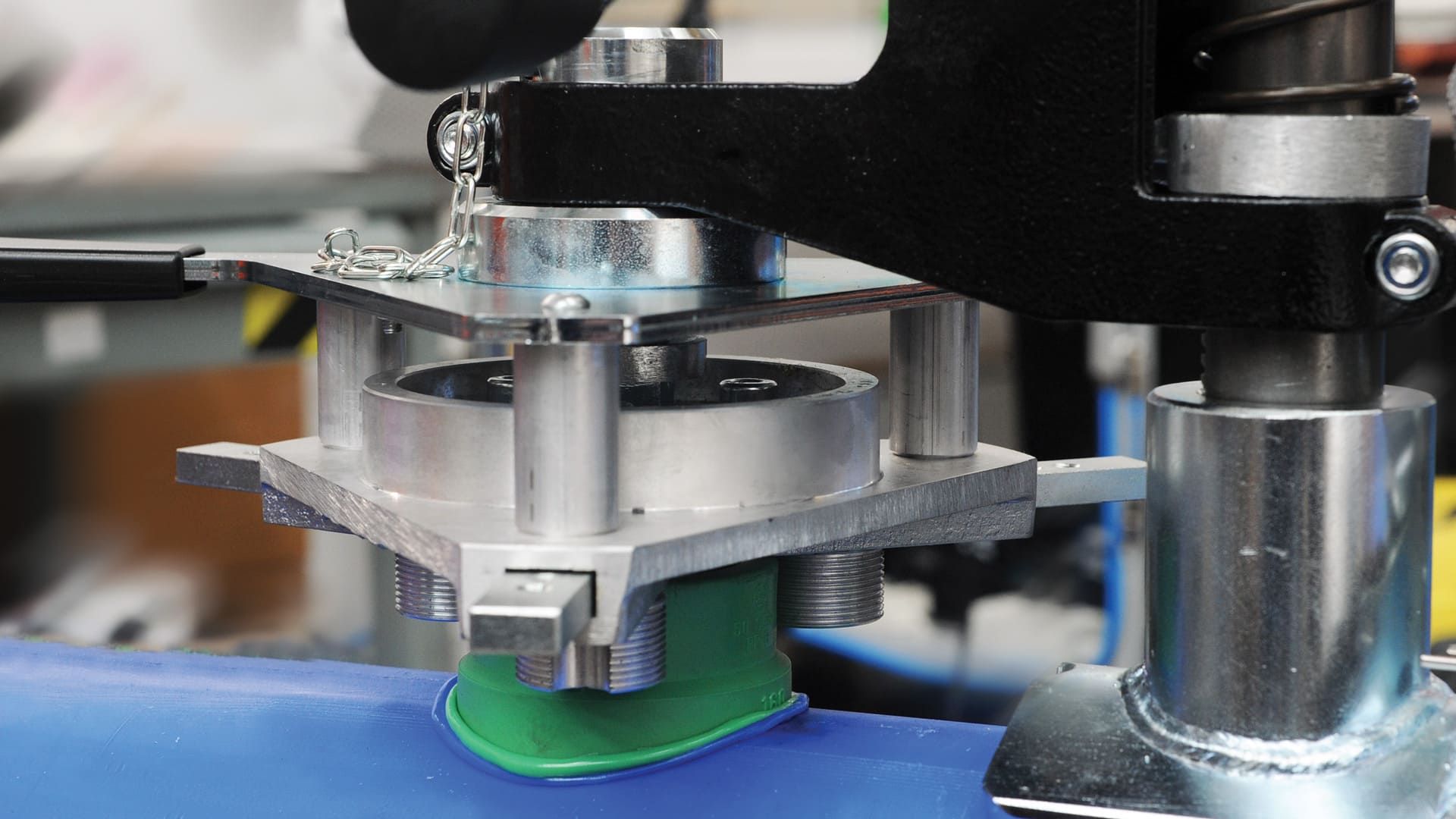

Drill and weld branch saddles on multi-brand PP and PE pipes/fittings in the laboratory or directly on-site. Up 125 is Patent Pending and guarantees perpendicularity between drilling and welding.

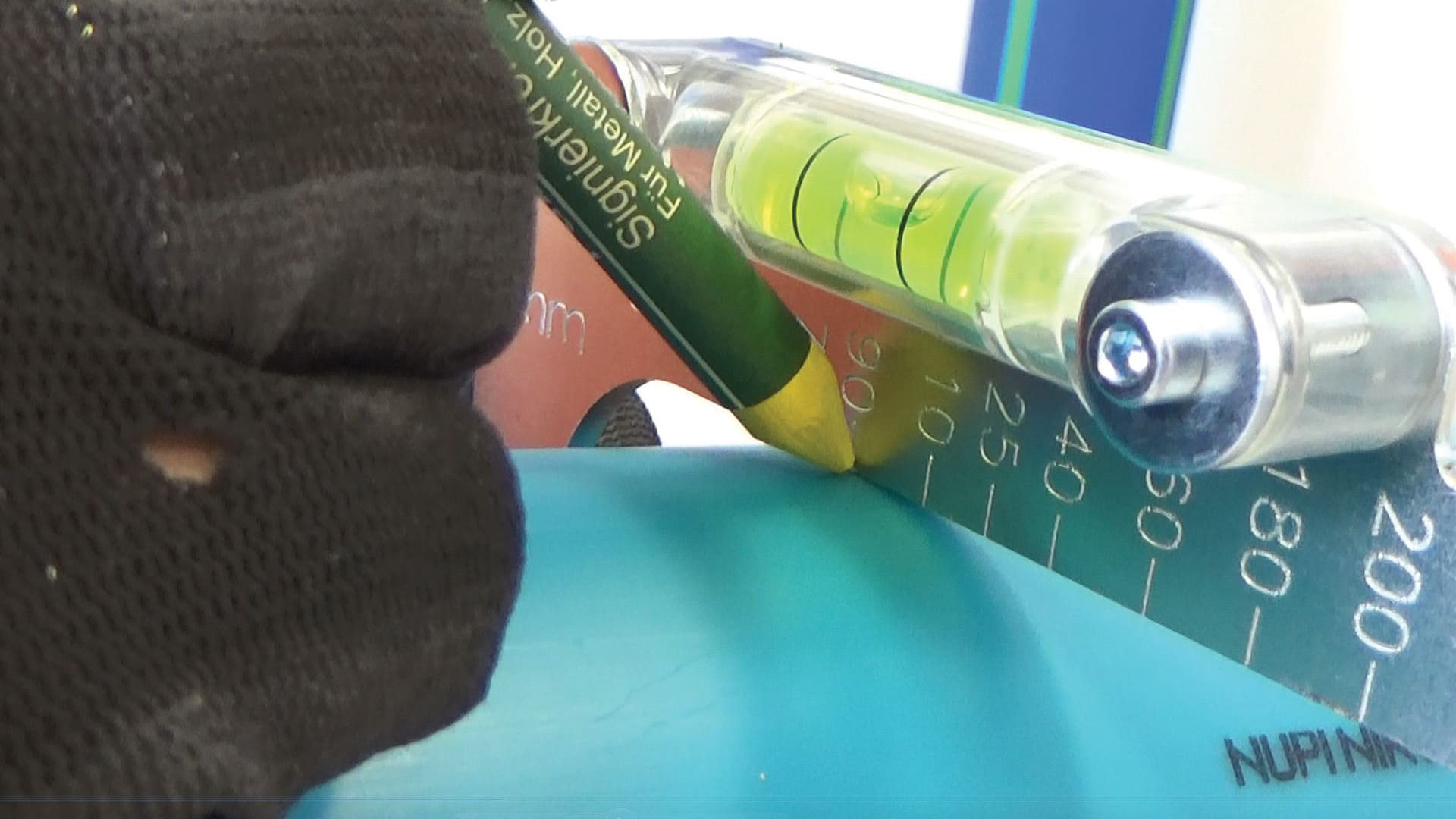

The main pipe working range goes from Ø 63 to 630 mm, from which branches with Ø from 32 to 125 mm can be obtained. The special metric level supplied from Ø 63 to 250 mm allows marking the points to be worked, which always remain aligned even on a curved pipe.
TECHNOLOGY Socket fusion
FEATURES
TECHNICAL SPECS
| Welding range (main pipe) | Ø 63 ÷ 630 mm |
| Welding range (saddle fitting) | Ø 32 ÷ 125 mm |
| Max. size UP 125 on site | 520 x 500 x 260 mm |

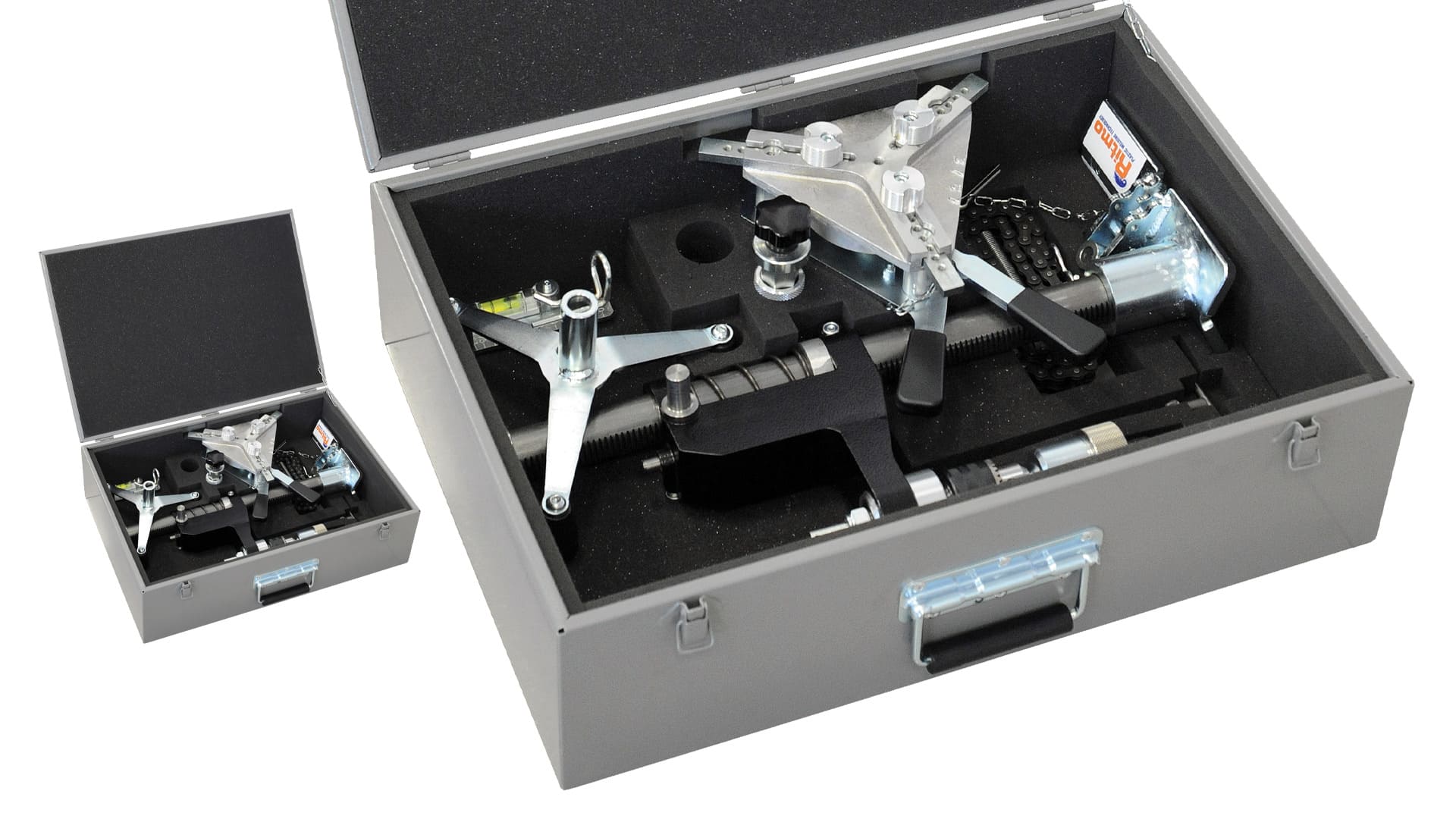

| Transport case size | 420 x 580 x 177 mm |
| Weight (machine, fixing tool and flywheel) | 8 Kg |
| Weight tot. Standard composition | 22,5 Kg |
| Case weight | 7 Kg |
STANDARD COMPOSITION
