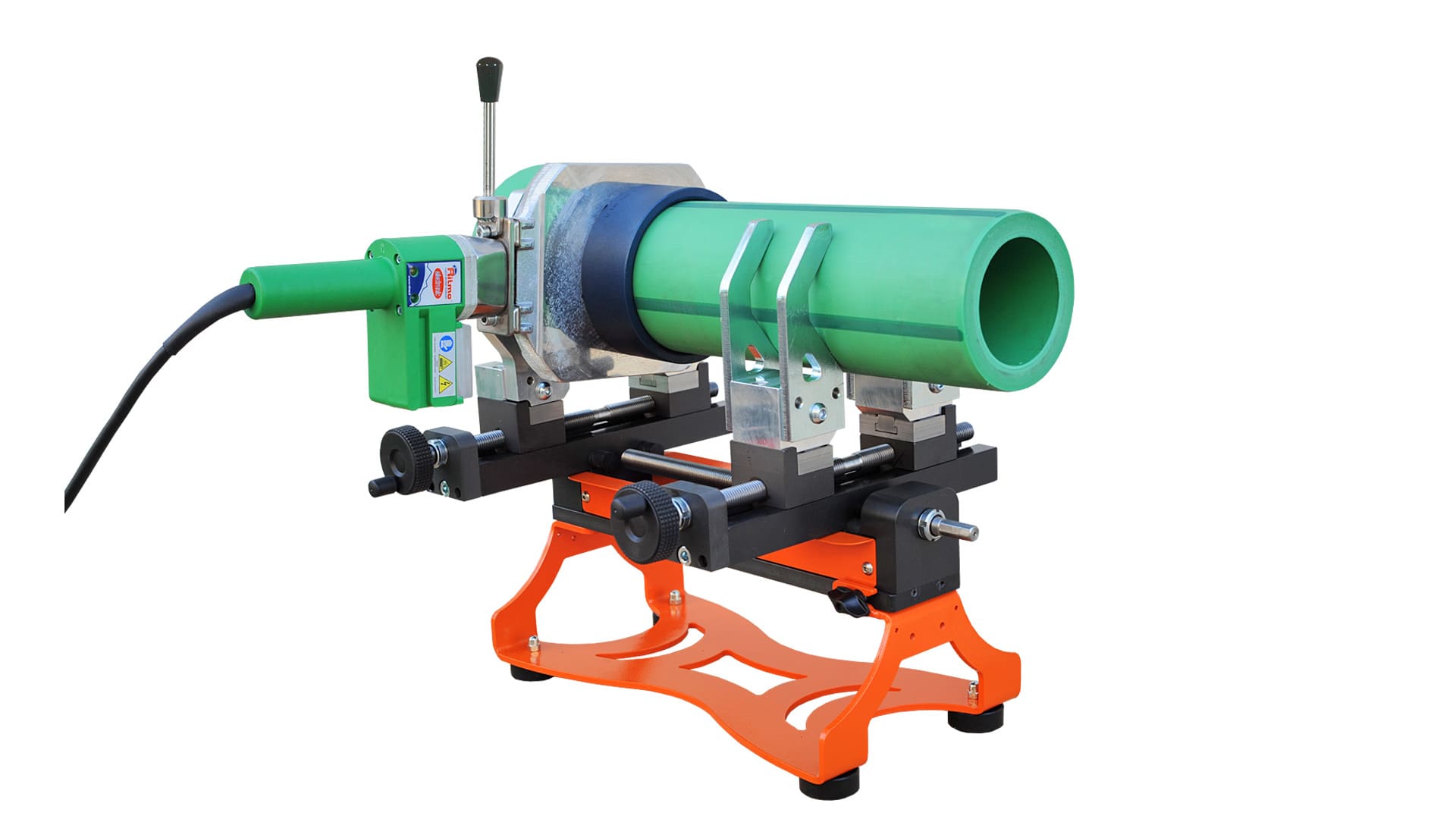

PRISMA JIG is a compact manual welder for the fusion of HDPE, PP, PP-R, PVDF, PB pipes and fittings with diameters between Ø 63 ÷ 125 mm.

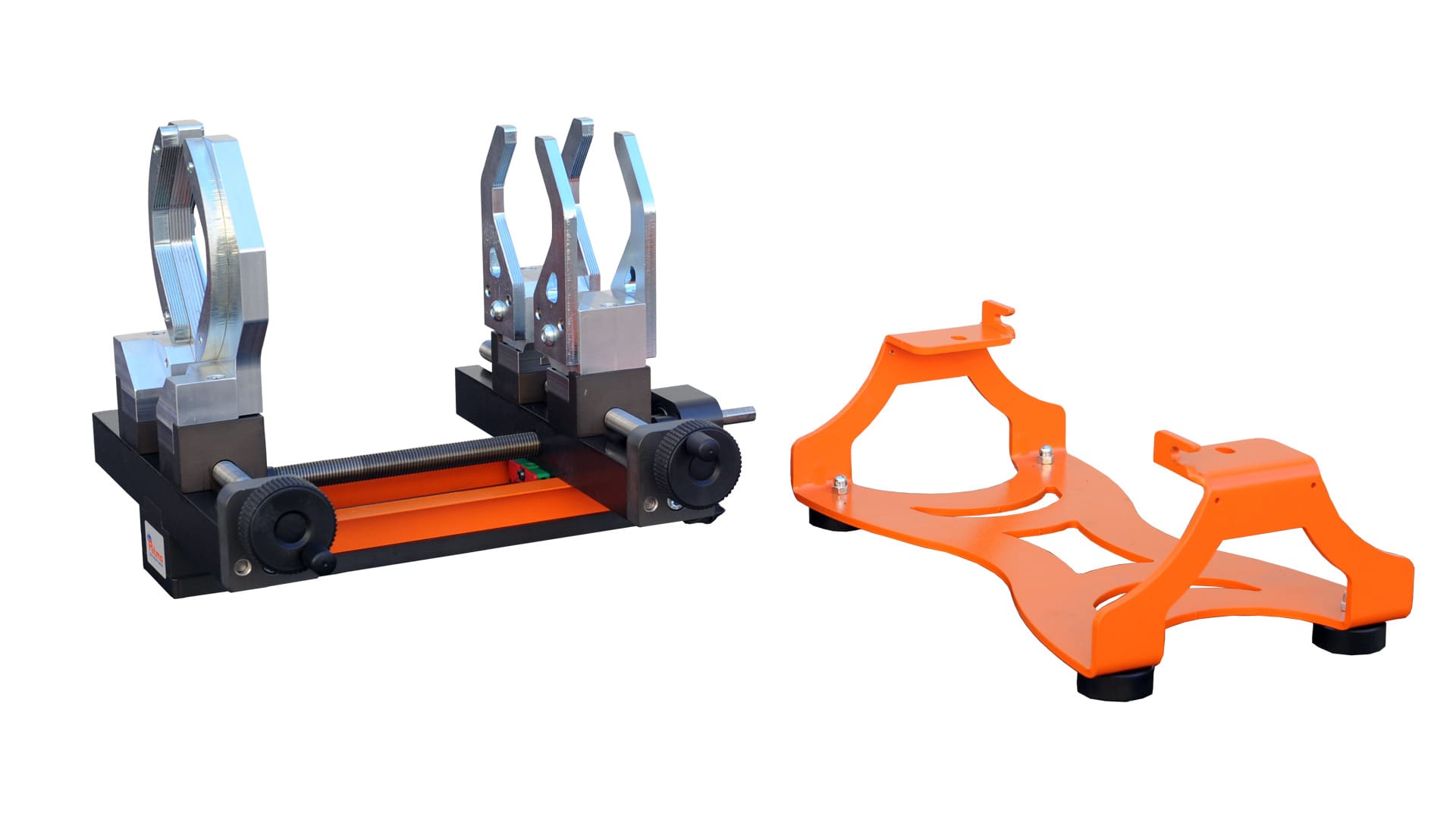

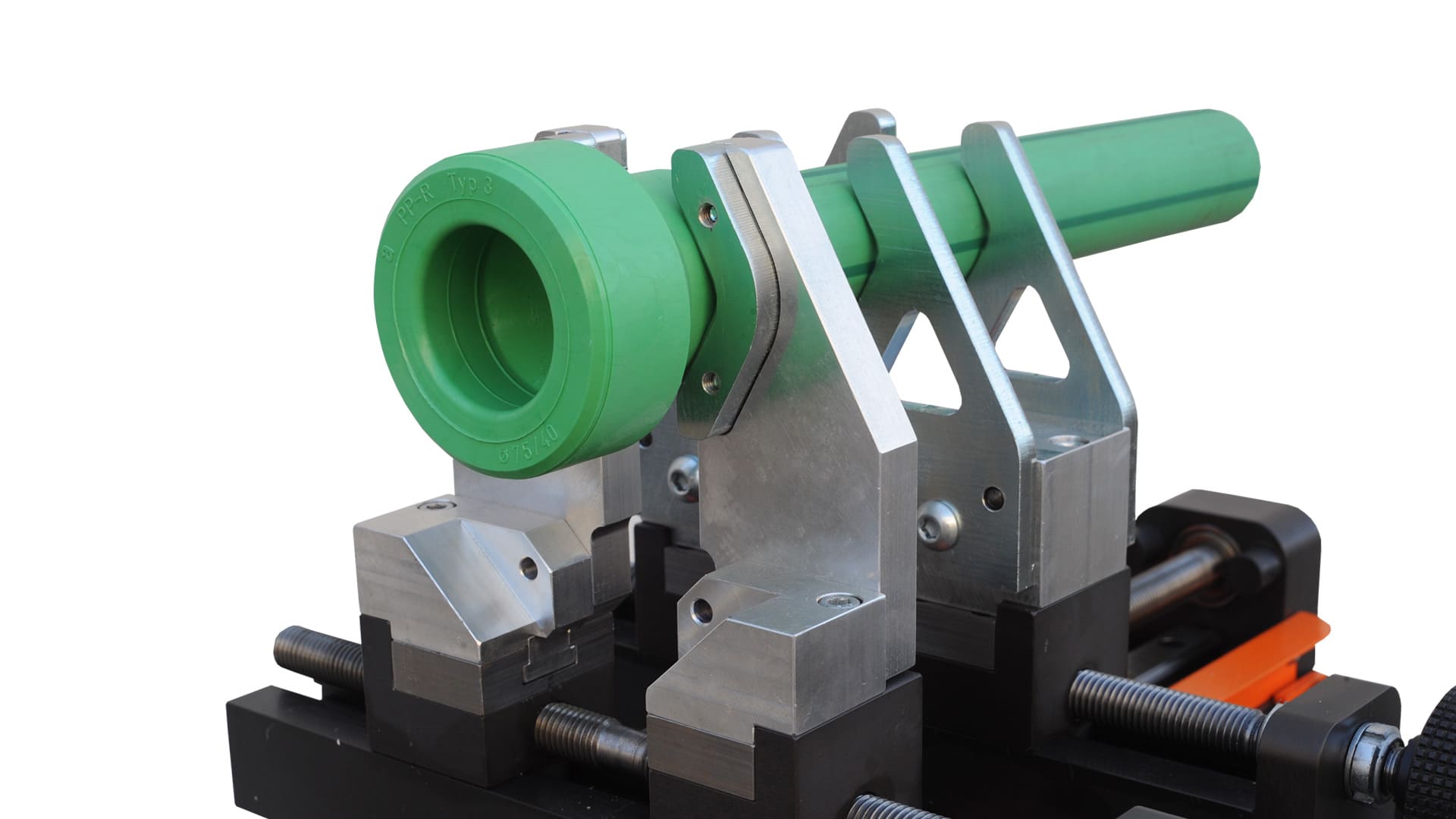

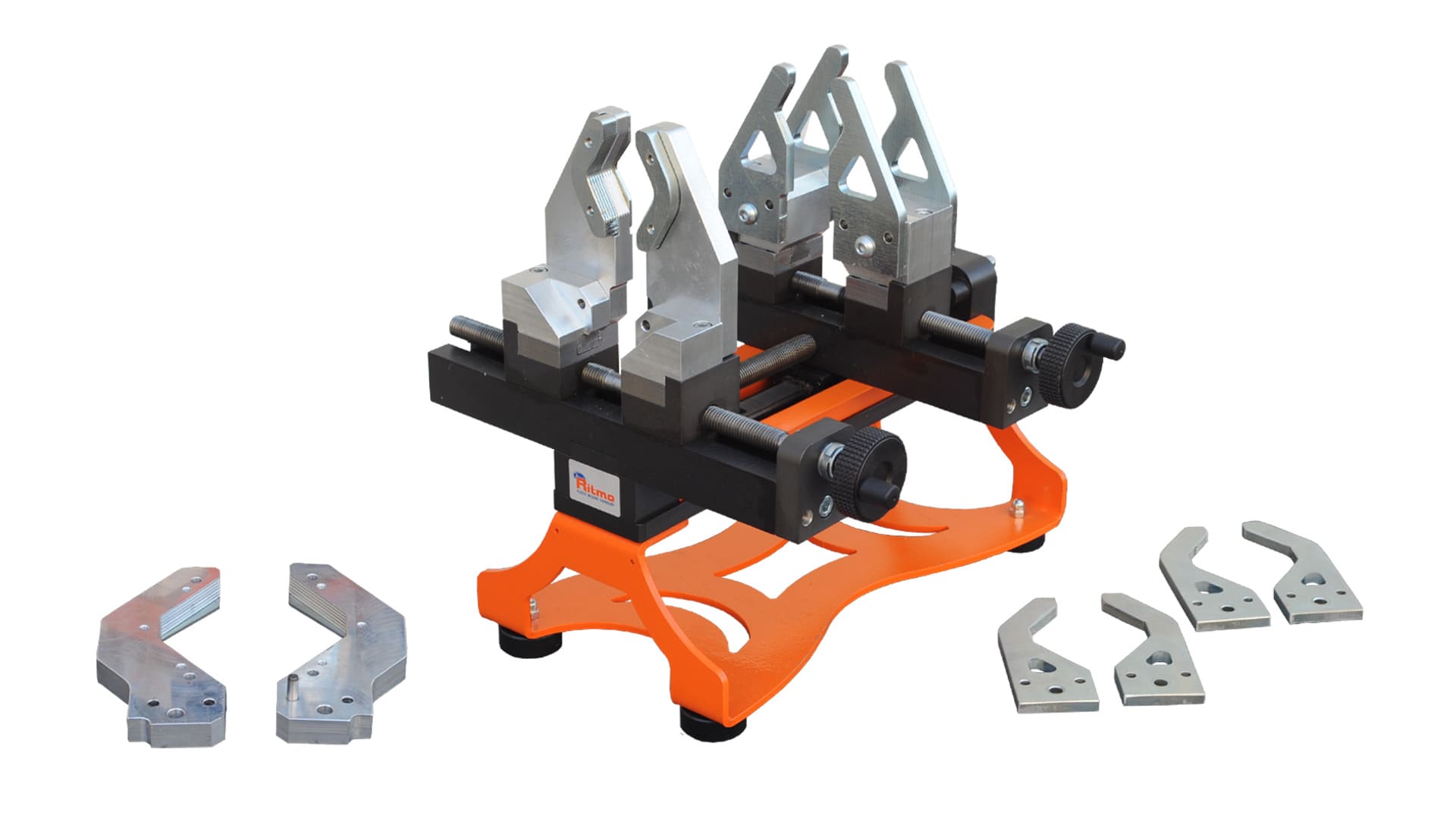

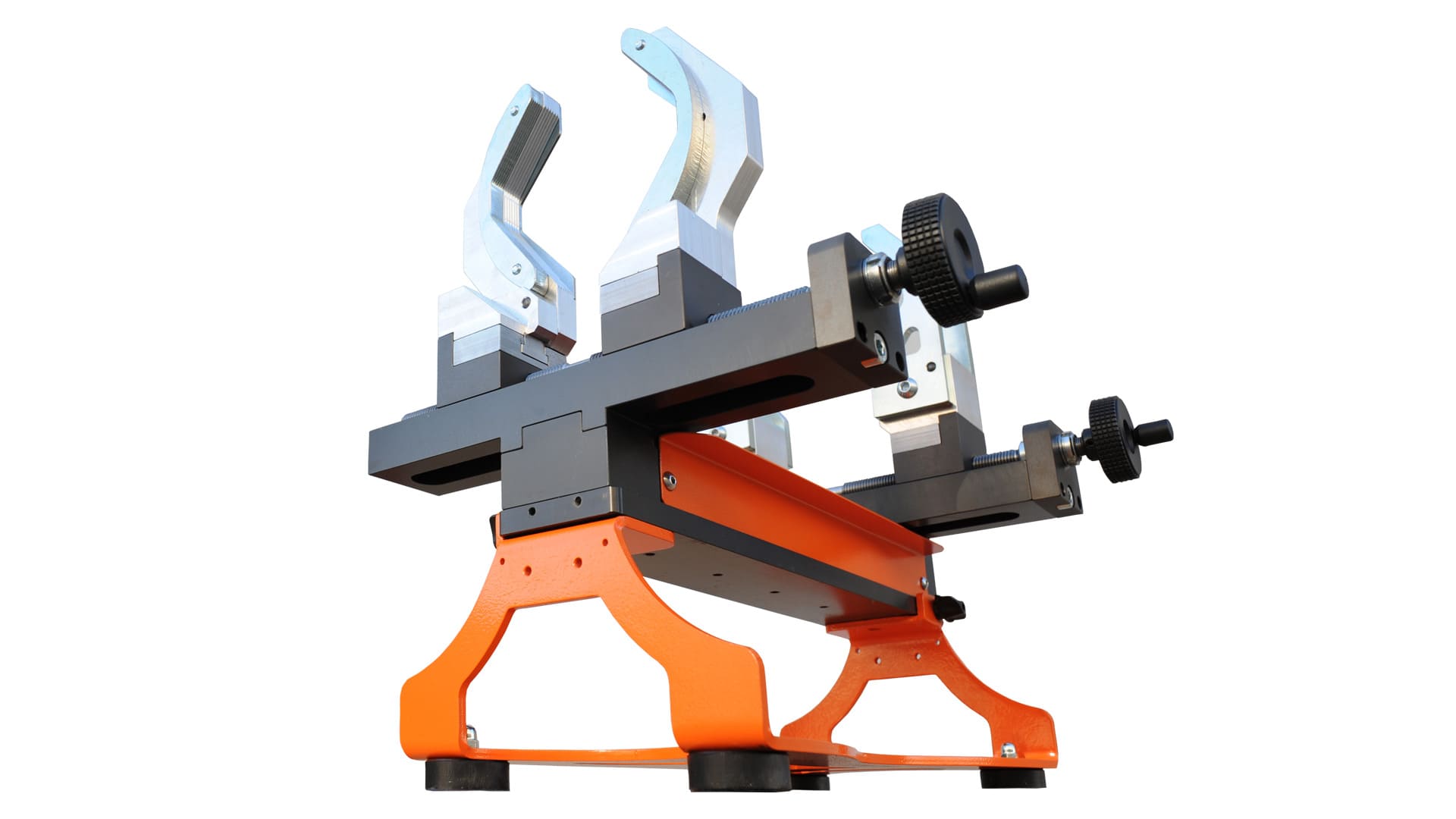

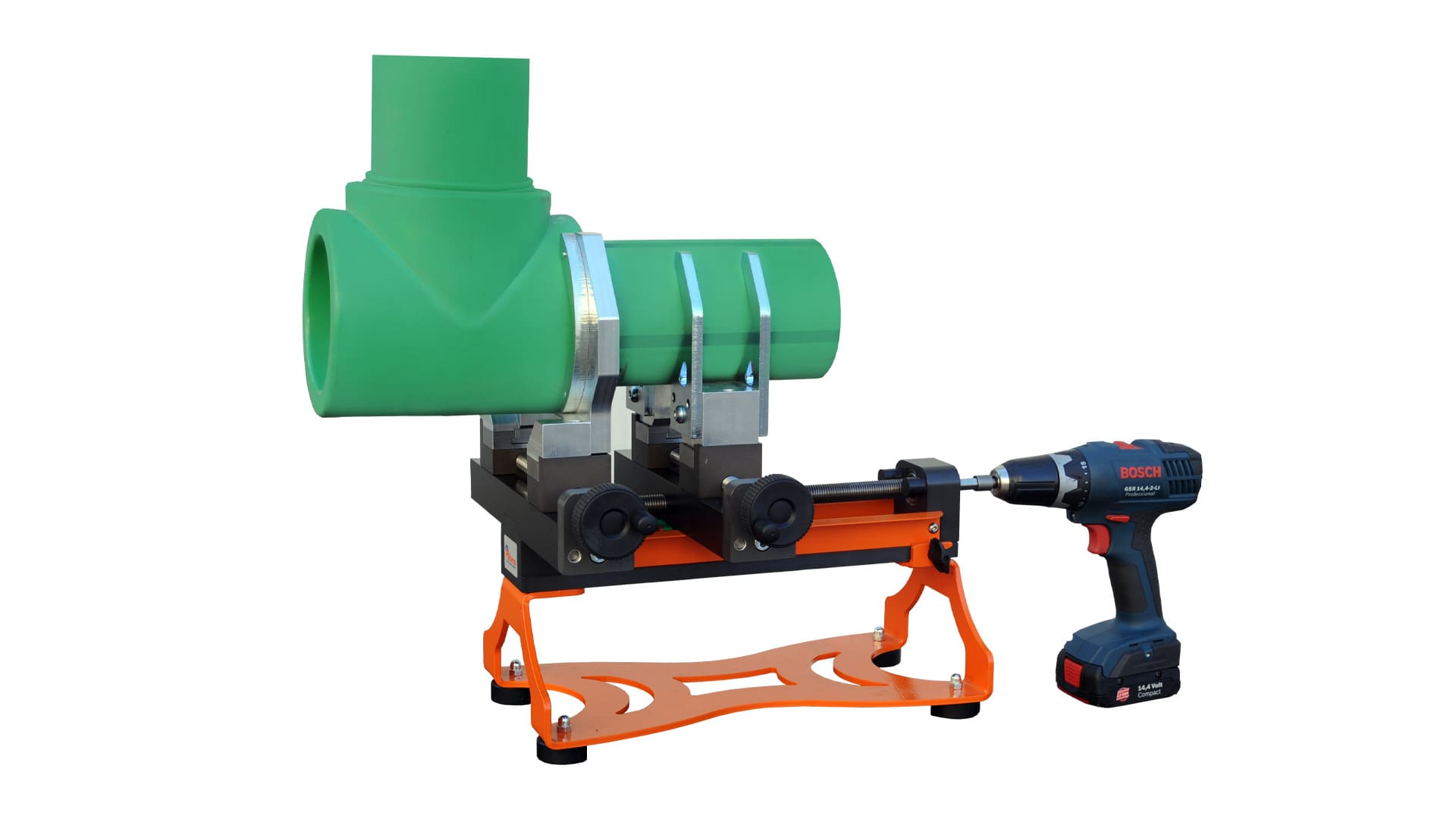

The welder is equipped with two carriages, one fixed and the other mobile, on which there are practical closing handwheels for the perfect clamping between the vise and the pipe/fitting. The closing and opening movement of the carriage is done with a screwdriver. The welder has self-centering steel clamps.
TECHNOLOGY Socket fusion
FEATURES
TECHNICAL SPECS
| Working range | 63 ÷ 125 mm standard 20 ÷ 63 mm clamps on request |
| Power supply | 110 V Single Phase 50/60 Hz 230 V Single Phase 50/60 Hz |
| Total absorbed power | 1400 W |
| Outside temperature range | -5° ÷ 40° C (23° ÷ 104° F) |
| Working temperature | 260° (± 10° C) 500° F (± 50° F) |
| Dimensions Body machine and frame | 400 x 337 x 382 mm 15.7” x 13.3” x 15” |
| Weight Body machine and frame | 12 Kg |
| Transport case Prisma Jig | 390 x 350 x 500 mm 15.3” x 13.8” x 19.7” |

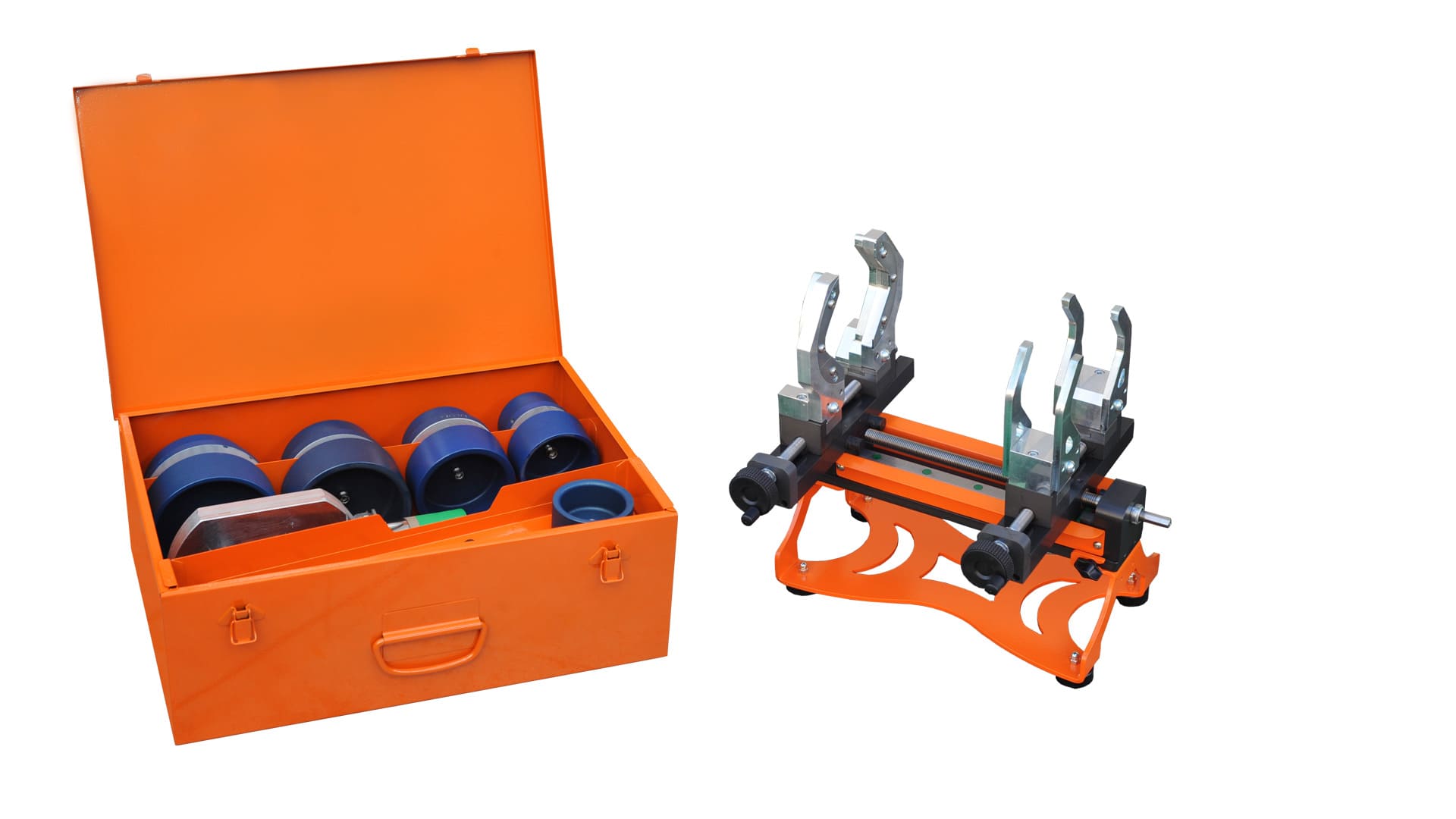

STANDARD COMPOSITION
