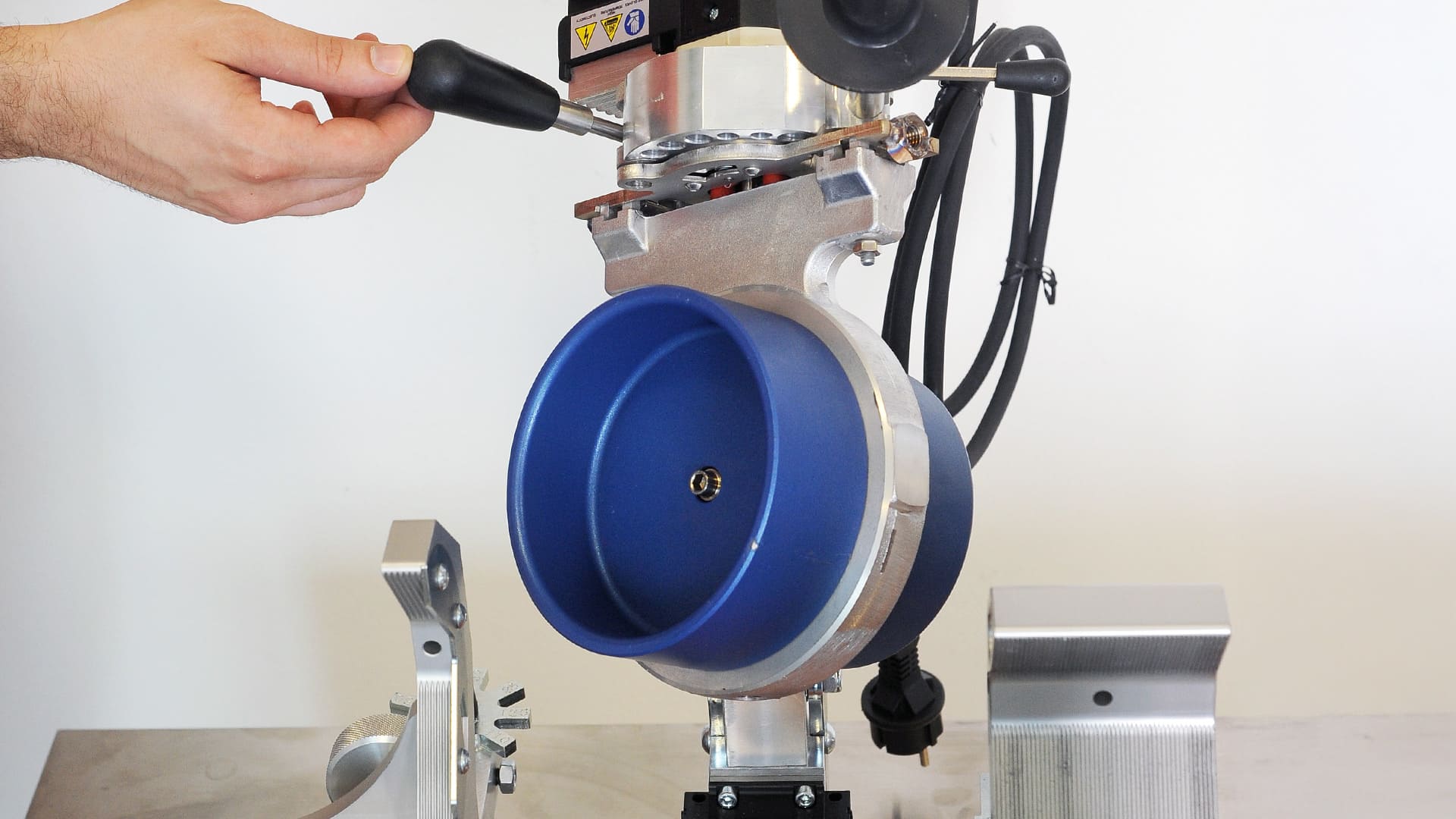

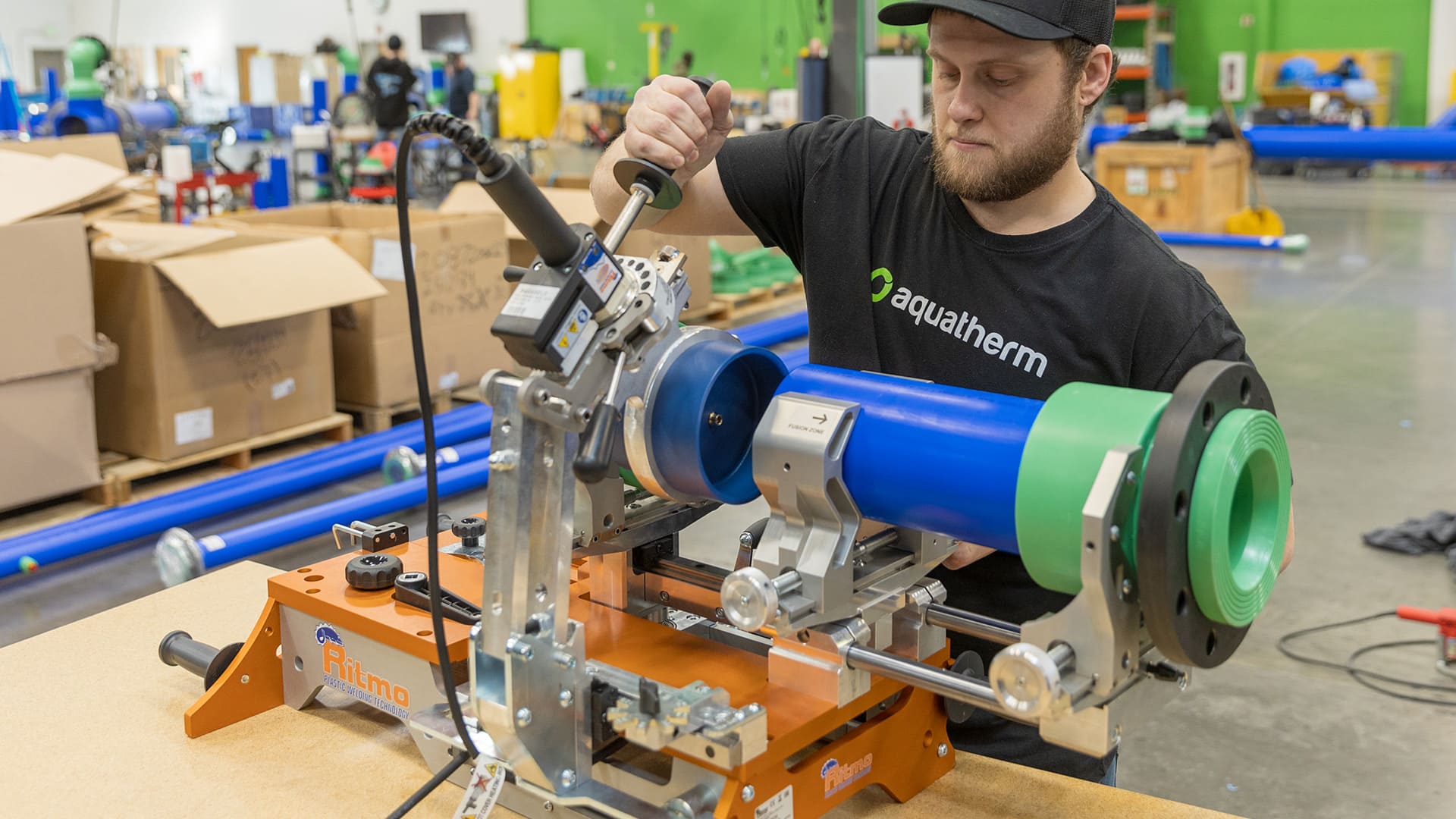

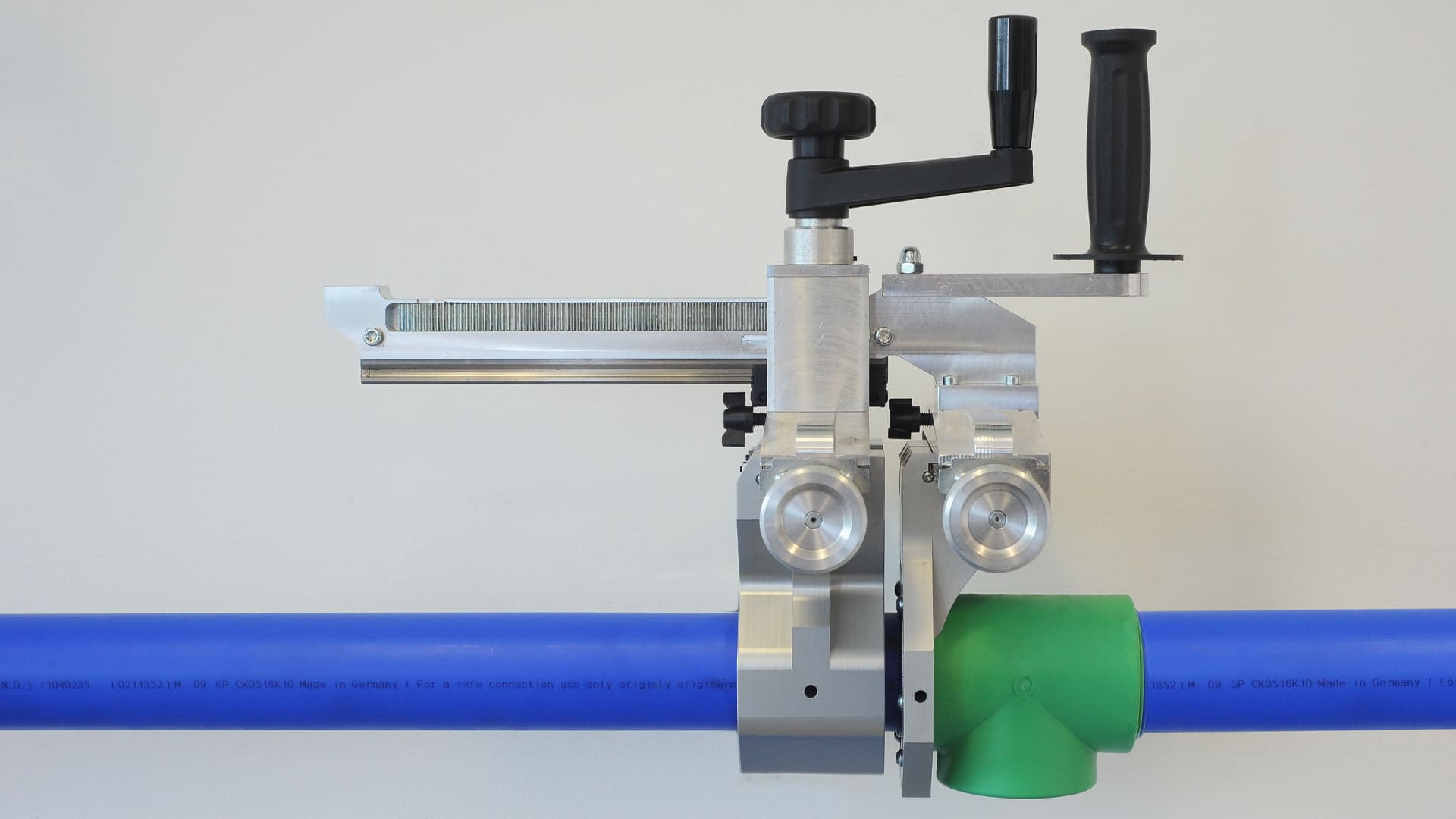

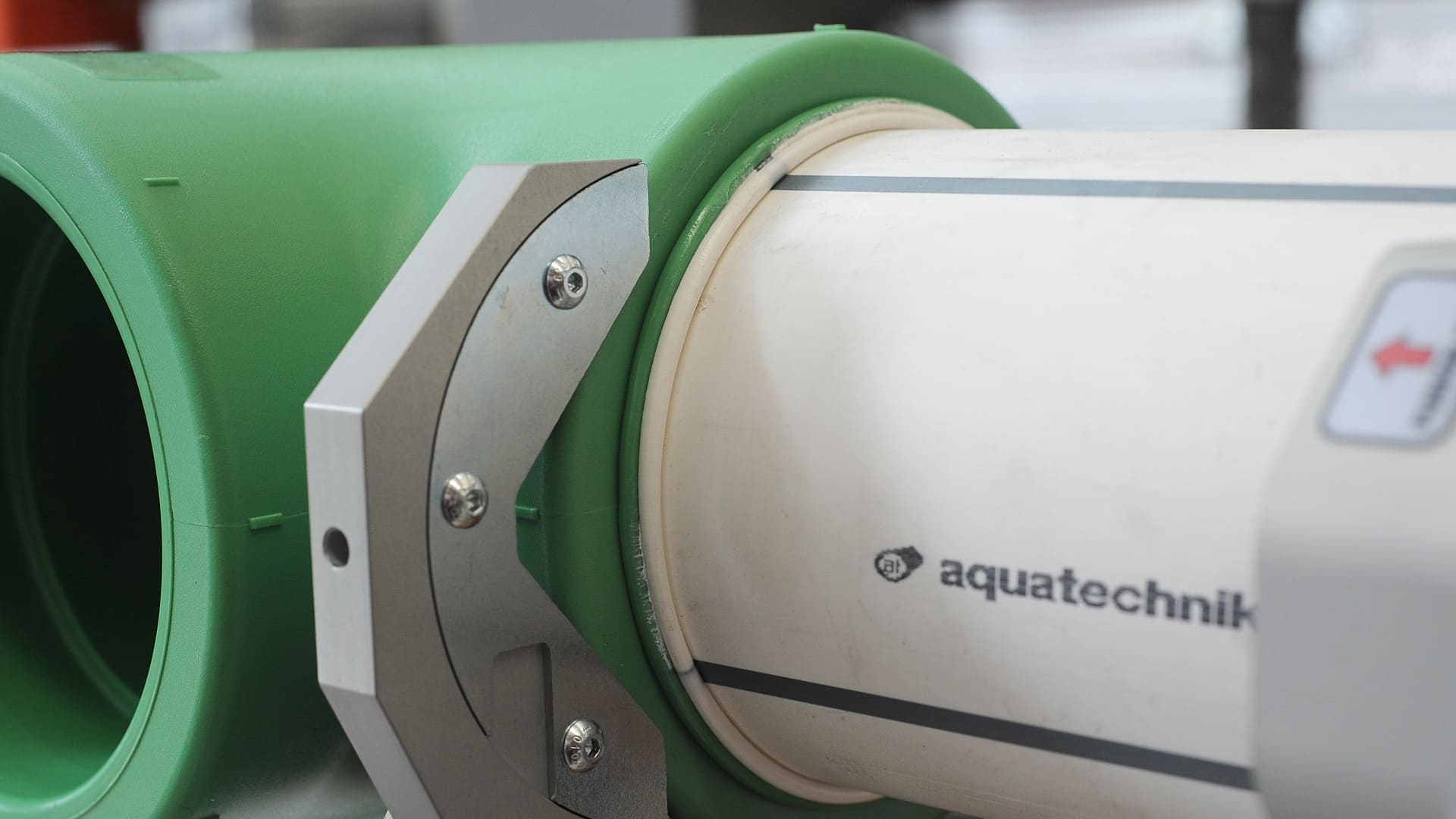

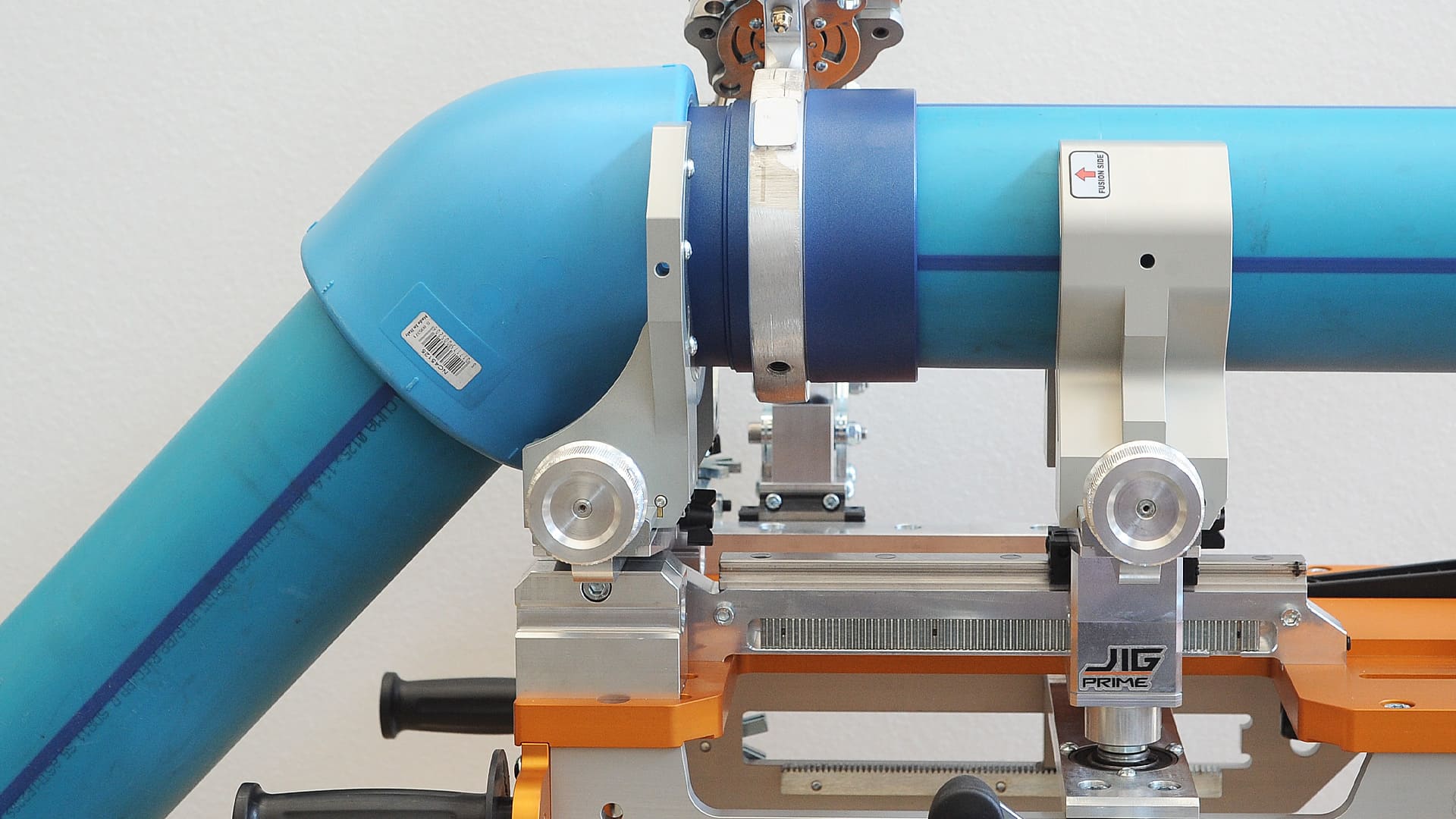

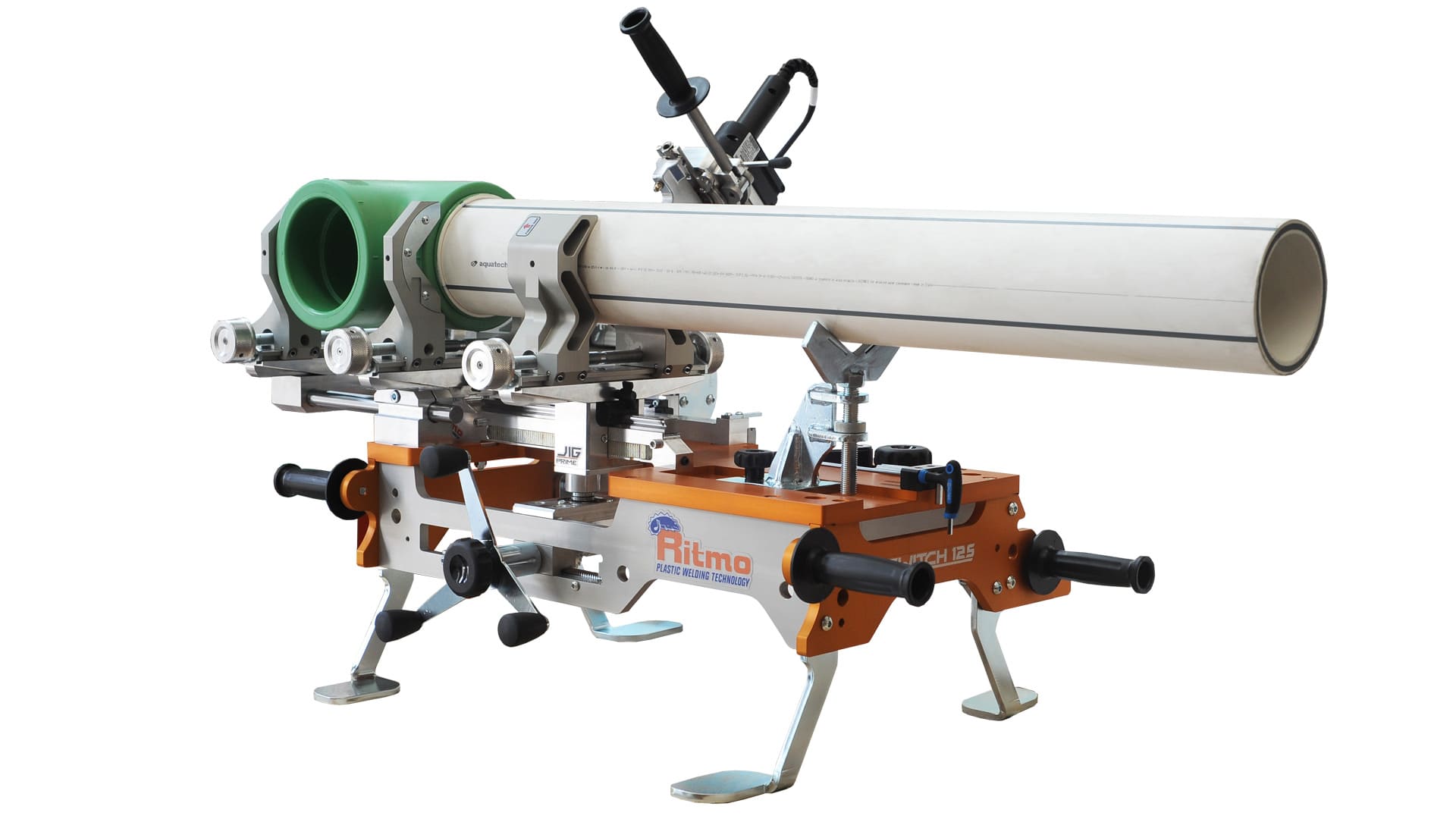

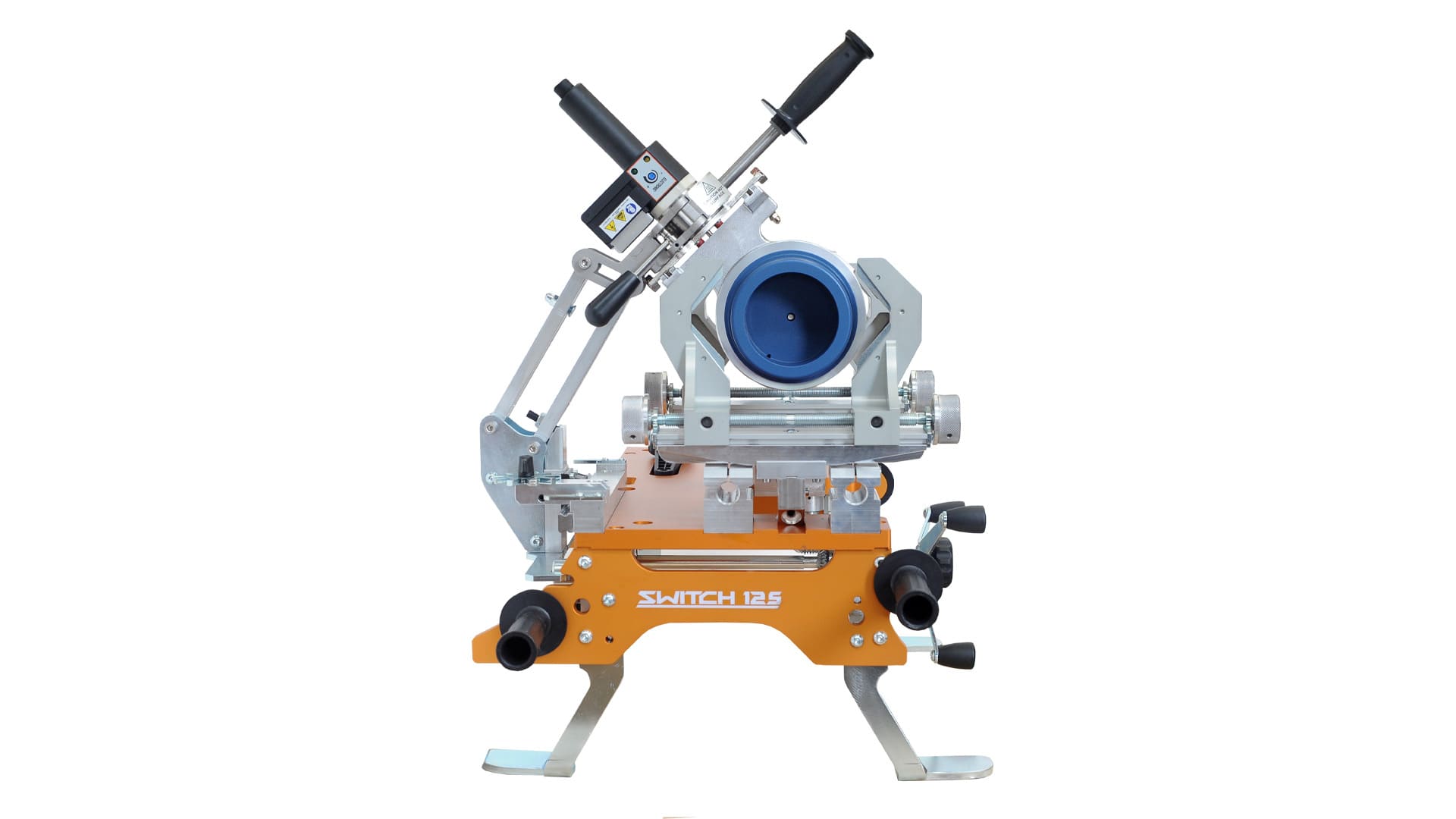

Switch 125 is Ritmo’s innovative “TWO products in ONE” solution for welding pipes with thermoplastic fittings up to 125 mm in diameter. The welding machine is versatile and modular, composed of two units for a new way of working on construction sites. With Switch 125, the operator has a powerful tool with many technical advantages.
TECHNOLOGY Socket fusion
FEATURES
TECHNICAL SPECS
| Working range | Ø 25÷125 mm |
| Power supply | 110 V Single Phase 50/60 Hz 220-230 V Single Phase 50/60 Hz |
| Total absorbed power | 1400 W |
| Outside temperature range | -5 ÷ +40°C (23 ÷ 104°F) |
| Working temperature | 180°C ÷ 290°C (356 ÷ 554°F) ± 1% |
| Time to reach welding temperature | ~ 10 |
| Dimensions | 900 x 545 x 503 mm; (35.43'' x 21.46'' x 19.8'') |
| Weight standard composition | 49,6 Kg (109.35 Ib) |
| Dimensions transport case | 1100 x 664 x 824 mm; (43.31 x 26.14 x 32.44) |
| Weight transport case | 39 Kg (83.8 Ib) |
STANDARD COMPOSITION
DOWNLOADS
